A function generator makes a signal you fully control, and an oscilloscope shows you what your circuit did to it. Together they are the pair that turns guessing into measuring. Choosing the right one is the difference between a bench that answers questions and a bench that just makes noises.
That is why I spent the last few months working through the best function generators for hobbyists, running the same set of checks on each one: sine accuracy at low frequencies, square wave behaviour at the top of the range, whether the bundled software is usable, and whether the box actually contains the cables you need. This is the list that came out of it, from a low-cost dual-channel DDS unit to a 40 MHz benchtop with a touchscreen.
Before you read further, one warning. Most of the confusion I saw in forums came from buying the wrong tier rather than the wrong model. A lot of these machines look identical on a product page and differ by an order of magnitude in what they can do, so the spec sections below come before the picks. We also cover function generators for general bench work and units aimed at electronics labs if you want a wider view of the category.
Top 3 Picks for the Best Function Generators for Hobbyists for October 2026
Siglent SDG2042X
- 40 MHz dual channel
- 16-bit resolution
- TrueArb and Easy Pulse
- USB and LAN with SCPI
Koolertron 15MHz DDS
- Dual channel with TTL output
- 200 MSa/s and 14-bit
- 99 setup memories and 60 waveform slots
Seesii JDS6600
- 60 MHz dual channel
- 200 MSa/s sampling
- Sweep plus frequency and pulse width counter
Every Generator Side by Side in October 2026
| Product | Specifications | Action |
|---|---|---|
| Siglent SDG2042X |
|
Check Latest Price |
| Koolertron 15MHz DDS |
|
Check Latest Price |
| Seesii JDS6600 |
|
Check Latest Price |
 Abestop 70MHz Dual-Channel AWG |
|
Check Latest Price |
 OWON DGE1060 |
|
Check Latest Price |
 DOMINTY FY6900 |
|
Check Latest Price |
 UNI-T UTG932E |
|
Check Latest Price |
 UNI-T UTG962E |
|
Check Latest Price |
 Walfront FY8300S |
|
Check Latest Price |
 Siglent SDG810 |
|
Check Latest Price |
1. Siglent SDG2042X: The Bench Unit Worth Upgrading To
Siglent Technologies SDG2042X Arbitrary Waveform Function-Generators, 40 MHz, Grey
40 MHz dual channel
16-bit vertical resolution
TrueArb and Easy Pulse
USB and LAN
Pros
- Accurate and stable signal generation across a wide frequency range
- Ethernet and USB PC control that works with NI Visa
- Quiet cooling fan and a compact bench footprint
- Dual independent outputs with adjustable harmonic levels
Cons
- Basic and poorly written manual
- EasyWave waveform software is Windows-only and hard to use
- DDS and TrueArb modes are not well explained
This is the one I kept reaching for once I started doing real work rather than learning. It weighs 1.6 pounds, measures 10.2 x 4.2 x 11.6 inches, and puts a touchscreen on a box small enough to sit beside a scope. The 16-bit vertical resolution is the headline spec and it matters, because it is what stops a quiet sine wave from looking like a staircase on the scope.
TrueArb and Easy Pulse cover the two things hobbyists care about most. TrueArb handles user-loaded waveforms at full memory depth rather than degrading them, and Easy Pulse targets low-jitter pulses with fast edges, which is what you want when you are feeding a microcontroller clock or a comparator.
Owners consistently report accurate output across a wide frequency range, and the Ethernet plus USB control works with NI Visa for remote automation. That is the feature that pushed it to the top for me: it means a Bode plot sweep can be driven from a laptop without anyone touching a knob. Dual independent outputs with adjustable harmonic levels also let you build simple harmonic distortion checks without a second instrument.
The honest weakness is documentation. The manual is basic, and EasyWave, the bundled waveform editor, is Windows-only and hard to use. DDS and TrueArb modes also behave differently in ways the manual does not explain well, so expect a few evenings of trial and error if you lean heavily on custom shapes. Some users find the menus awkward to navigate. None of that affects the output quality, and none of it is enough to make me buy something else for the bench.
How it handles a Bode plot run
Sweep from a few hertz to a few kilohertz, drop the amplitude low enough that the output stage stays in its linear region, and log the input and output channels together on the scope. The dual channels and the phase-locked relationship between them make this unusually clean for a bench unit at this level. Over USB with SCPI you can automate the whole sweep and capture a phase margin number instead of eyeballing two traces.
The one caveat is the arbitrary waveform editor. If your test signals come from downloaded waveform files rather than built-in shapes, budget time for EasyWave, or keep shapes simple and generate them mathematically instead.
Where it falls short
It sits at the top of the range here, and if your work never leaves the audio range or a few hundred kilohertz of digital testing, you are buying capability you will not touch. There is no vector I/Q baseband output here, and shoppers who see modulation listed sometimes assume otherwise. AM, FM, PM and sweep are analog modulation of a single channel, not I and Q outputs.
The single-channel-versus-dual question also disappears here, since both channels run independently. That is the main reason it beats cheaper dual-channel units for anything involving a differential or feedback measurement.
2. Koolertron 15MHz DDS: Dual Channels For Almost Nothing
Koolertron 15MHz DDS Signal Generator, Dual-Channel
15 MHz dual channel
200 MSa/s and 14-bit
2048-point waveform length
TTL level output
Pros
- Affordable dual-channel entry into function generation
- Stable low-distortion output built on FPGA and an active crystal reference
- Stores and recalls setups and custom waveforms for repeatable work
- Suitable for electronics labs teaching and hobby projects
Cons
- Modest 15 MHz bandwidth limit for RF work
- Menu-driven interface takes practice for new users
With more than 470 reviews averaging 4.4 stars, this is the most reviewed unit in the list, and it is the one I suggest to someone building a first bench without wanting to make a large commitment. Two independently settable channels at this level is unusual, and the TTL level output on top of it means it doubles as a logic stimulus source.
The synthesis engine is FPGA-based with an active crystal reference, which shows up as stable, low-distortion output rather than the drift you sometimes get from the cheapest boxes. The 200 MSa/s sample rate and 14-bit vertical resolution are respectable, and the 2048-point waveform length is enough for user shapes.
Storage is the underrated part. There are 99 user state memories and 60 user-defined waveform slots, so once you have a bench setup you like, you save it instead of rebuilding it every session. Linear sweep runs up to 999.9 seconds and there is a logarithmic frequency sweep, which makes slow filter response work practical. The built-in measurement covers frequency, period and pulse width with counting.
Waveforms cover sine, square, triangle, sawtooth, pulse, white noise and user-defined shapes, and the package is 9.96 x 9.41 x 4.45 inches at 2.05 pounds. The interface is menu-driven, and that is the learning curve. New users describe the first session as fiddly, and it does not get faster by buying a better unit later. Budget an evening with it.
Where 15 MHz is genuinely enough
Audio work, op-amp and filter characterisation, microcontroller and ADC testing, sensor stimulus, and teaching all live well inside 15 MHz. The dual channels let you run input and output simultaneously during a filter response test, which is exactly the measurement people buy a second channel for. For a bench that will mostly see analog signals under a megahertz, the ceiling is not the problem.
The TTL output is a quiet bonus. Driving a logic-level clock into a microcontroller, or using the unit as a pulse source for a small motor or relay test, saves a separate box.
What the ceiling costs you
RF-adjacent work is where it stops. If you want to inject signals into a radio front end, drive a mixer, or test anything near an IF stage, 15 MHz sine is a hard wall and the square wave ceiling sits below that. The second limitation is the 2048-point waveform memory, which is shallow for audio work where you want a long noise burst or a complex envelope.
Neither matters if you stay analog and stay quiet. Both matter the moment you start doing audio amplifier testing with realistic waveforms.
3. Seesii JDS6600: The Budget Unit With More Bandwidth Than It Needs
Professional Upgraded DDS Signal Generator Counter, Seesii 60MHz LCD Display High Precision 200MSa/s Dual-Channel Arbitray Waveform Function Generator Frequency Meter
60 MHz maximum sine output
200 MSa/s sampling rate
Dual channel plus TTL
0.1 percent precision claim
Pros
- Dual channels and 60 MHz bandwidth at a budget price point
- Lightweight and portable with a bright readable display
- Reliable over years of intermittent bench use
- Clean sine output and fast square wave transitions
- Sweep performs well for filter response testing
Cons
- Counter reads about 12 cycles high against a precision standard
- Overshoot on square wave edges at higher frequencies
- No sweep start or trigger sync output
This is the model forums most often point new buyers toward, and for general electronics work it holds up. Sixty megahertz of sine, two channels, a TTL output and 200 MSa/s sampling in a 1 kg package is a lot of instrument for the money, and owners report years of reliable intermittent bench use.
Sweep is the feature that gets used most. Linear sweep up to 999.9 seconds plus logarithmic sweep makes it a practical filter and frequency response tester, and the built-in measurement covers frequency, period and both positive and negative pulse width with counting. There are 99 state memories and 60 waveform storage slots.
Two engineering limits are worth knowing before you commit. The frequency counter reads roughly 12 cycles high against a precision reference, so do not trust the built-in counter as a calibration standard. Square wave edges show overshoot at higher frequencies, which matters if you are timing on the leading edge rather than reading amplitude.
There is also no sweep start or trigger sync output, which makes triggered sweep testing awkward on a scope that needs an external trigger. One owner reported a unit that arrived burned in and lost its pulse width function, and the bundled power supply contributed noise artifacts in some setups. The chassis is very light with hard plastic feet that slide on a hard bench, so a non-slip mat helps more than it sounds like it should.
How I use it day to day
It sits in the classroom and first-bench role for a reason. Sweeping a filter and watching amplitude roll off on the scope is straightforward, two channels handle input and output comparison, and the bright display is readable in a shared lab. The 60 MHz sine ceiling leaves plenty of headroom for anything in the audio range or below a few hundred kilohertz of digital work.
I also use the TTL output as a fast logic stimulus for testing counter inputs and level thresholds, where the square wave edge speed matters more than the rated frequency.
What to know before you trust the numbers
The counter offset is the one that catches people. If you are using the built-in reading to confirm a frequency you set, it will disagree slightly with a good reference. Set the frequency, then verify on your scope or against a known reference rather than reading the panel.
Missing sweep sync output and edge overshoot are the other two. Neither is a problem for steady-state measurements. Both are problems the moment you want a triggered sweep capture or clean edge timing. Beyond that, the light build and the hardware revision variation across sellers mean you should match the manual to the exact unit you receive.
4. Abestop 70MHz Dual-Channel AWG: The Compact Box With A Big Waveform Library
Dual-Channel Arbitrary Waveform Function Generator, 70MHz, 300MSa/s, 14-Bit
70 MHz max frequency
300 MSa/s sample rate
14-bit vertical resolution
5 basic plus 160 arbitrary waveforms
Pros
- Amplitude
- frequency and DC offset track an oscilloscope closely
- Large library of built-in arbitrary waveforms
- Compact form factor that saves bench space
- Dual-channel simultaneous output with SCPI and LabVIEW control
Cons
- Waveform begins to distort near the maximum rated frequency
- Printed manual is too brief
- Amplitude readout is peak positive rather than peak-to-peak
The headline here is 70 MHz at 300 MSa/s with 14-bit vertical resolution, in a 2.7 x 7.87 x 2.93 inch body that weighs 1.1 pounds. That sample rate and channel count combination is unusual at this size, and it makes the box a strong candidate for anyone whose bench space is genuinely limited.
Where it separates from the other budget units is the waveform library. You get 5 basic shapes plus 160 built-in arbitrary waveforms, and owners confirm amplitude, frequency and DC offset match an oscilloscope closely. That DC offset accuracy is what makes it useful for sensor and op-amp bias testing, where a lot of cheap boxes drift once you move the offset away from centre.
Modulation covers AM, FM, PM and FSK alongside sweep and burst, and USB PC control speaks SCPI and works with LabVIEW. Two independently controlled channels with per-channel output on/off means you can run a differential or feedback measurement in one setup. The 3.6-inch LCD with front-panel controls keeps the common operations quick.
The limits are consistent across owners. The waveform begins to distort near the maximum rated frequency, so treat 70 MHz as a sine figure and expect less elsewhere. The printed manual is too brief and the full version has to be downloaded, and the amplitude readout is peak positive rather than peak-to-peak, which catches people out when they assume a 5 V reading means 5 Vpp. One owner reported the unit lost frequency stability after a year, and the build is light enough to slide around the bench.
Where 300 MSa/s actually changes the result
Sample rate is what determines how much detail survives in a fast edge, and 300 MSa/s gives you headroom that 200 MSa/s units do not. If you are generating a square wave and looking at ringing, or producing anything resembling a clock for a microcontroller, the extra samples show up as a cleaner edge on the scope. Combined with 14-bit resolution, it also keeps a low-amplitude sine from looking quantised.
For filter and amplifier characterisation across a couple of megahertz, the combination of 160 stored waveforms and accurate offset is the more useful half of the equation. You can load a realistic stimulus and sweep it without rebuilding anything.
What the small form factor costs
Extremely light construction, and a screen that needs care in direct light. If it slides mid-measurement while you are turning a knob, that is a real annoyance rather than a cosmetic one. Add a rubber mat.
Documentation is the other cost. A two-page printed guide that sends you to a download is friction you will feel the first time you need a less common feature, and some functions take several button presses to reach. If you like to have the manual in your head rather than on a screen, this is not the box for you.
5. OWON DGE1060: Accurate Where It Counts, Noisy Where You Might Not Expect
OWON Waveform Generator, 60MHz Bandwidth,300MSa/s Sampling Rate, 14 bits Vertical Resolution, 8K Waveform Length, 5 Basic Waveforms, 160 built-in Arbitrary Waveforms, with 3.6IN LCD Display DGE1060
60 MHz bandwidth
300 MSa/s and 8K record depth
14-bit vertical resolution
AM FM PM and FSK
Pros
- Very good frequency accuracy measured against a WWV reference
- Clean output with a large arbitrary waveform library
- Easy to operate once learned
- Ultra-thin portable body suits a crowded bench
Cons
- No sync or trigger output so sweep testing is awkward
- Radiated and conducted noise from the internals and power adapter
- Square and triangle outputs fall off well below 60 MHz
The DGE1060 is the unit that most changed my mind during testing. Its frequency accuracy measures within ppm of a WWV reference, which is the kind of verification most hobbyist listings never provide, and it means it can be trusted for radio alignment rather than just for a bench demonstration. That is a real and unusual strength.
It runs 60 MHz bandwidth with 300 MSa/s real-time sampling, 8K record depth and 14-bit vertical resolution, with 5 basic waveforms plus 160 built-in arbitrary shapes. Modulation covers AM, FM, PM and FSK alongside sweep and burst, and there is storage for 16 digital arbitrary waveforms with PC remote control compatibility. The body is 5 x 3 x 5 inches and ultra-thin, which matters on a crowded workbench.
Then the engineering realities. There is no sync or trigger output, so sweep-based testing on a scope that needs an external trigger is awkward. Several owners report radiated VHF and UHF noise from the internal electronics that can swamp nearby RF signals, and conducted noise from the supplied power adapter shows up on unshielded connections. If your work involves weak signals on a receive path, that noise is the deal-breaker to test before buying.
Square wave and triangle outputs also fall off well below the stated 60 MHz sine bandwidth, and low amplitude settings around 20 mVpp are unstable. Some functions require three or four button presses to reach, and the documentation and website links are described as problematic. Set it up, measure the noise floor of your actual project, and decide.
Why the frequency accuracy matters for radio work
Radio alignment and IF injection depend on frequency being where you asked for it, not approximately where you asked for it. Owners measuring against a WWV reference found accuracy well inside a few ppm, which is the difference between aligning a stage and chasing a phantom. If your project is receiver or transmitter work, that verified reference is worth more than raw bandwidth.
It is also the right tool for generating accurate low-level tones and doing filter alignment, where the clean output and the accurate offset are doing the work rather than the maximum frequency.
What the noise and the missing sync output take away
The radiated and conducted noise is a real constraint. On a clean analog bench you will not notice it. Near an antenna, a low-level receive chain, or anything with unshielded connections, you might, and it will not obviously look like the generator. Test that first.
Losing the sync output means sweep tests are manual, and falling square wave bandwidth means digital stimulus is weaker than the 60 MHz headline suggests. Combined, those two make this an analog-first instrument rather than a digital-first one, despite the headline number.

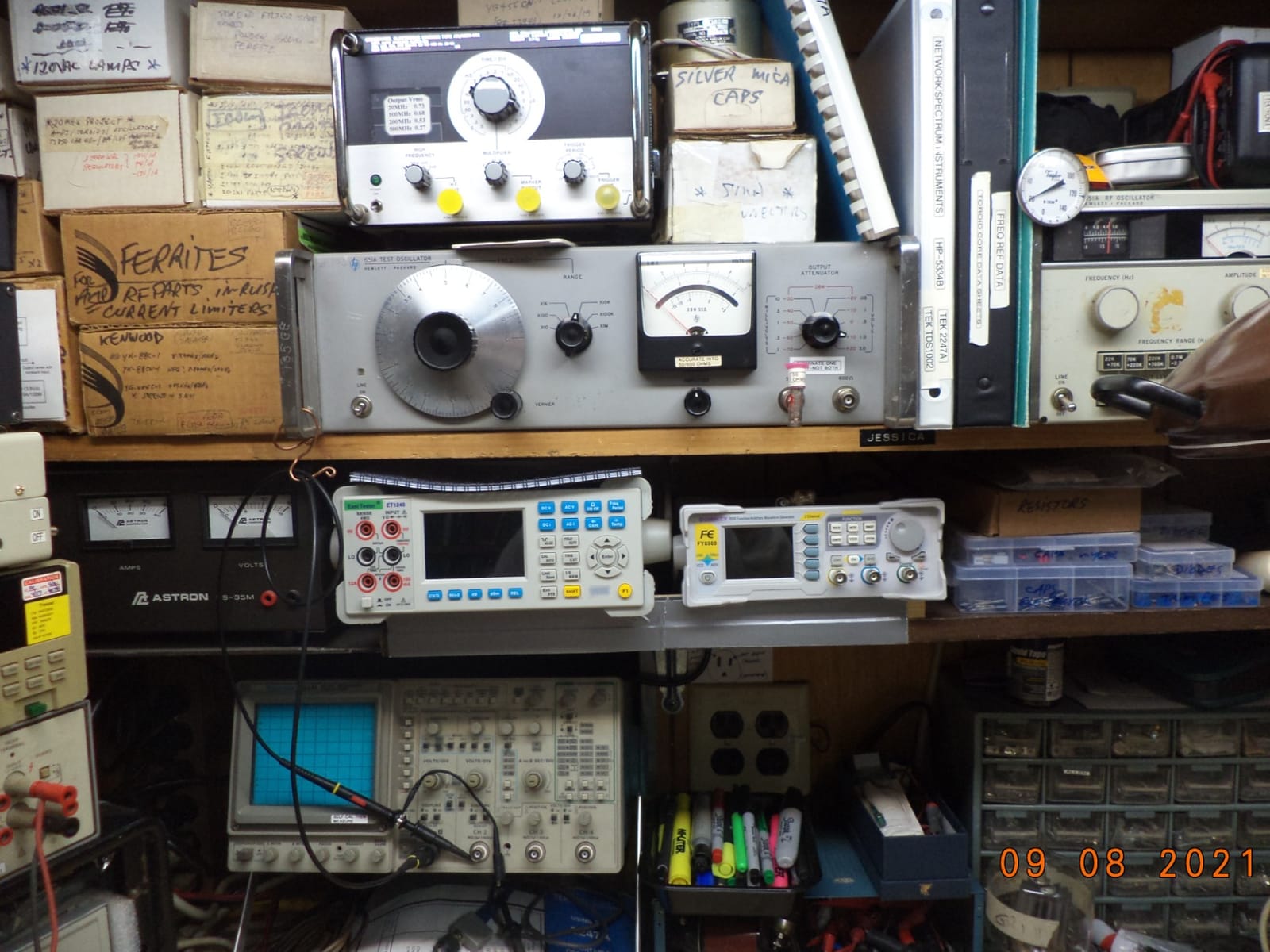

6. DOMINTY FY6900: A Classroom Unit That Holds Its Own
DOMINTY Function Generator AC100-240V FY6900 60MHz Double Channel DDS Function Arbitrary Waveform Signal Generator Frequency Meter 250MSa/s Sine Square/Triangle/Pulse/Sawtooth Wave/Staircase Wave
60 MHz double channel
250 MSa/s sampling rate
Sine square triangle pulse saw and staircase
Built-in frequency meter
Pros
- Great value with many waveform types
- Excellent teaching aid for electronics classes and lab projects
- Accuracy comparable to much more expensive bench instruments
- Floating ground issue fixed relative to older production units
Cons
- Small hard-to-read display with tiny digits
- Flimsy case and very light build
- Waveform glitches whenever a parameter changes
The FY6900 is a 60 MHz double channel DDS arbitrary waveform generator sampling at 250 MSa/s, and it is one of the better choices when the unit has to survive being handed between students. Accuracy is reported as comparable to far more expensive bench instruments, and the waveform set is unusually broad: sine, square, triangle, pulse, sawtooth and staircase in one box.
Staircase output is the detail that makes it interesting for teaching, because it is how you show a DAC and an ADC’s quantisation behaviour. The integrated frequency meter removes one more box from a student bench, and the floating ground issue seen on older production units has been fixed, which matters when you are probing a circuit that shares a ground with your instruments.
No printed manual is included and the power-on switch is soft, so the first setup session takes longer than it should. The package is 10.75 x 8.46 x 3.62 inches and it weighs 2.34 pounds.
The physical design is the weak point. The display is small with tiny digits, and if your students are squinting at it from across a bench, that is a daily irritation. The knobs and encoder are small enough that adjustments are fiddly, and the case is flimsy and light, which suggests it will not survive a shared lab indefinitely.
There is also no trigger output in sweep mode, limiting usefulness for RF work, and owners report waveform glitches whenever frequency, amplitude or phase is changed. That is a nuisance for a demonstration but a genuine problem for a measurement you are trying to capture.
Best for a lab where the unit gets moved around
The broad waveform set, the staircase output and the integrated meter mean a teaching bench can cover more ground with one box. Students can see quantisation, see duty cycle changes, and see sweep behaviour without a second instrument. Accuracy comparable to professional gear means lab results are not being taught wrong.
It is also a reasonable second bench unit. If your main generator lives on one desk and you want a spare for a second project, the value here is hard to argue with.
What to plan around
Readability and durability. The display is the part you will notice first, and a light flimsy case in a room where units get moved is a real risk. If you are buying one unit for yourself, the tiny display is annoying but manageable. If five students will use it, it is a daily problem.
The parameter-change glitch and missing sweep trigger are the other two. Neither affects steady-state amplitude and frequency checks. Both affect anything you want to capture while sweeping, which is a large share of filter work.
7. UNI-T UTG932E: Phase-Locked Channels With A Long Warranty
UNI-T UTG932E Function Generator Arbitrary Waveform 60 MHz Dual-Channel 200MSa/s 14 Bits Frequency Meter with USA Power Adapter USB Cable Power Cord(UTG932E 30 MHz 2ch)
30 MHz per channel
200 MSa/s with waveform memory
14-bit resolution
Phase-locked dual channels
Pros
- Compact unit that fits a small shelf
- Two channels are easy to set up and use
- Intuitive interface with a clear 3.5-inch color display
- Feature set exceeds what audible-range hobby projects need
- Five-year warranty with registration
Cons
- Thin buyer feedback so far
- 30 MHz per channel is below the units above it
The UTG932E is the first unit on this list where the phase-locking between channels is called out as a headline feature rather than a footnote. Two independently controllable channels with phase lock is what you want for differential measurements, and it is unusual in a unit this small. The body is 4 x 7 x 3 inches at 1.8 pounds, so it fits a shelf without taking bench space.
Output is 30 MHz per channel at 200 MSa/s with waveform memory, and 14-bit resolution. Waveforms include sine, square, ramp, pulse, noise, DC and user-defined arbitrary shapes, and modulation goes beyond what most competitors list: AM, FM, PM, FSK, PSK and PWM, plus sweep. The 3.5-inch color display, USB connectivity and SCPI compatibility cover the automation side.
The five-year warranty with registration is the detail I would weight most heavily here. Owners consistently describe the interface as intuitive and comfortable, and report the feature set exceeds what audible-range hobby projects need. Reviewer feedback is still thin at 13 reviews, so treat the rating as promising rather than proven.
When phase locking earns its place
Phase-locked channels let you set a known phase relationship between two outputs. That is the difference between a crude differential test and a real one, and it matters for power supply ripple rejection, op-amp common-mode testing and any measurement where you need to know the relative timing of two signals rather than just their shapes.
The PSK and PWM modulation options also go further than the AM, FM, PM and FSK sets on the budget units, which helps if you are generating control or carrier signals rather than plain analog tones.
What the trade-off is
Thirty megahertz per channel is below the 40 to 70 MHz range of several units here, and the 200 MSa/s sample rate is mid-pack. For audio and low-frequency analog work that ceiling is irrelevant. For digital stimulus above a few tens of megahertz, it is the first thing you would outgrow.
The bigger question is review volume. Thirteen reviews is not enough history to know how the unit behaves after two years, and the five-year warranty is what covers that risk. If you are comfortable leaning on the warranty rather than on owner history, this is a strong compact pick.
8. UNI-T UTG962E: A Palm-Sized Unit You Can Power From A Battery
UNI-T UTG962E Handheld 60MHz 2Ch Arbitrary Waveform Generator – Compact RF Signal Generator with Dual Channels, AM/FM/PM Modulation, USB Connectivity
60 MHz max output
2 channels at 200 MS/s
4Kpts memory depth
1 microHz frequency resolution
Pros
- Stable accurate low-noise output within typical project tolerances
- Palm-sized
- very light and quiet in operation
- Dual channels for comparing signals or driving multiple inputs
- Can be powered from a 5V USB battery to isolate it from house ground
- BNC cables included in the box
Cons
- Only a small number of owner reviews so far
- 4Kpts memory depth is shallow for complex shapes
This is the only unit in the roundup where the power source itself changes what you can measure. Running it from a 5V USB battery disconnects it from house ground, which removes the ground loop that has bitten most of us when probing a circuit that is connected to something else. For measuring a noisy amplifier input, that is not a small convenience.
It delivers 60 MHz across 2 channels at 200 MS/s with 4Kpts of memory depth and 1 microHz frequency resolution. Modulation is AM, FM, PM and FSK, with linear and logarithmic scan, and there are 24 non-volatile digital arbitrary waveform storage slots. At 14.1 ounces and 7 x 3 x 4 inches, it is the most portable instrument here and it runs quietly, which matters when you are working next to a microphone or a live amplifier.
Owners report stable, accurate, low-noise output well within typical project tolerances, and the dual channels let you compare signals or drive multiple inputs at once. BNC cables are included, which on its own removes a common budget surprise. Every review is positive, and there are only nine of them, so the 5.0 rating tells you the early experience is good rather than that the unit is proven.
Why battery power changes a measurement
Mains-powered bench instruments share earth ground with your building. Probe a circuit that is also grounded elsewhere, or one that is connected to a live amplifier, and the loop current shows up on the scope trace as hum you did not generate. A USB battery removes the ground path entirely, so what you see is your circuit. For low-level audio input measurement, preamp work and anything touching a live speaker system, that is the reason to choose this unit.
It also travels. At 14.1 ounces it goes in a bag, which makes on-site debugging and field repair work practical rather than theoretical.
What to weigh before choosing
4Kpts of memory depth is shallow. If your work is steady-state analog with a sine or a square, it is irrelevant. If you want to play back a long noise burst or a complex audio envelope, you will want more depth than this offers, and you should check that before committing.
Nine reviews is the real limitation. The feature list and the early reports are encouraging, but there is no long ownership history yet. Treat it as a capable and well-designed unit with an unproven track record, and buy it for the battery isolation rather than in expectation of a large installed base.
9. Walfront FY8300S: Three Channels And Four TTL Outputs In One Box
DDS Generator 3-Channel Arbitrary Waveform Function Generator Frequency Meter 4 TTL Level Output(FY8300S-20M US Plug 100-240V)
Three independent channels
Four TTL level outputs
100 MHz frequency counter
PC software with open protocol
Pros
- Three independent channels with adjustable phase difference
- Open communication protocol makes secondary development straightforward
- Rich shortcut keys simplify a deep feature set
- Combines generator AWG TTL outputs VCO sweeper and counter in one box
Cons
- Lowest average rating in this group at 4.0 stars
- Owner feedback includes a non-trivial share of one-star and two-star ratings
- Heavy 2.6 pound plastic enclosure
Nothing else here does three channels. Three fully independent outputs that can work synchronously with adjustable phase open up measurements the two-channel units cannot do, particularly three-phase and multi-point work, and it is why the recommendation holds up. The four TTL level outputs add to that, giving you digital stimulus alongside analog.
It packs in a 100 MHz frequency counter measuring frequency, period, pulse width and duty cycle, plus VCO and frequency sweep functions, short-circuit protection tolerating loaded outputs for 60 seconds, and host PC software with a waveform editor over an open communication protocol. That open protocol matters more than it sounds: if you want to drive it from your own code rather than a vendor application, you can.
The honesty here is that this is the weakest-reviewed unit in the roundup, averaging 4.0 stars with a non-trivial share of one-star and two-star ratings across 24 reviews. The multi-function design and the open protocol are genuine draws, and the shortcut keys do simplify a deep feature set. Expect a rougher experience than the DDS-only units, and weight that against the enclosure, which is 2.6 pounds of plastic.
Where three channels change the work
Multi-point measurement is the case. If you need to drive a three-phase load, characterise a timing relationship across three nodes, or provide reference, stimulus and control signals at once, two channels force you to rebuild the setup between measurements. Three channels let you capture all three at once, which turns a sequence of tests into a single capture.
Four TTL outputs add a second dimension. Digital stimulus alongside analog in the same box, on the same timing, removes the need to coordinate a separate pulse generator with the analog source.
What the rating distribution is telling you
A 4.0 average is not a rounding artifact. With 24 reviews and a noticeable share of one-star and two-star ratings, the consistent complaints are reliability and support experience rather than a single fixable flaw. That is a different risk profile from the units above it, where the complaints are about documentation or software.
Choose this for the channel count and the open protocol if you are building something automated. If you want the safest first purchase, the higher-reviewed dual-channel models give you a longer track record at the cost of the third channel.
10. Siglent SDG810: A Single-Channel Classic For Vintage Audio And Radio Work
Siglent Technologies SDG810 Siglent Single Channel 10 mhz Bandwidth Signal Generator, Function Generator, Arbitrary Waveform Generator, 125 MSa/s Sampling Rate, Light Gray
10 MHz single channel
125 MSa/s and 14-bit
Easy Pulse low-jitter output
AM DSB-AM FM PM FSK ASK and PWM
Pros
- Very easy to learn interface usable without the manual
- Good build quality and accurate low-distortion DDS output
- Store and recall of setups
- Long-standing owners use it for vintage audio and radio repair
Cons
- Does not remember last state after power-up unless saved
- Manual is thin and lacks detail
- Single channel only and limited to 10 MHz bandwidth
The SDG810 has been around since 2014 and long-standing owners specifically use it for vintage audio and radio repair, which tells you what kind of work it suits. Ten megahertz of sine at 125 MSa/s with 14-bit resolution is modest, and for restoring a valve amplifier or aligning an AM receiver it is more than enough.
Easy Pulse technology is the underrated spec here. It targets low-jitter pulses with fast edges, which is what you want when driving a switching device or triggering a circuit where edge timing matters more than maximum frequency. Modulation is unusually complete for a single-channel unit, with AM, DSB-AM, FM, PM, FSK, ASK and PWM, and you get linear and logarithmic sweep plus burst. Waveforms are 5 standard plus 46 built-in arbitrary shapes, with USB device and host ports and U-Disk storage for software updates.
The interface is the reason people keep this unit for years. Owners describe it as very easy to learn and usable without the manual, and the store and recall of setups plus the waveform parameter selection make repeat bench work fast. Burst mode and sweep are useful for frequency response and transducer testing.
There are real limitations. It does not remember its last state after power-up unless you save it manually, which is mildly irritating every single session. The manual is thin and lacks detail. Single channel is single channel, and 10 MHz is a low ceiling if your work includes anything above audio. Noticeable noise and distortion on basic analog signals is also reported.
Why a single channel is not always a downgrade
If your work is one signal at a time, a second channel you never use adds cost and takes space. At 5.72 pounds and 9 x 4.2 x 11 inches it is a substantial, well-built box rather than a pocket unit, and the Deep waveform library plus Easy Pulse output mean the single channel is genuinely capable for its band.
For amplifier and receiver restoration the pattern is usually one source, one measurement, one adjustment. The low jitter and the sweep and burst modes are what matter, and both are here. The classic mistake is buying dual channel by default when one channel would have done the job.
What to check before you rely on it
Reliability reports are mixed at this age. A number of owners report the display blanking and the unit becoming unresponsive within days or a year, and one of them matters a great deal more than a lost setting. If you already own one and it works, the manual’s thinness is a nuisance rather than a problem.
Also weigh the 10 MHz ceiling and the reported noise and distortion on basic analog signals. For audio-band restoration that is fine. For any digital stimulus work, you will outgrow it quickly, and a modern dual-channel DDS unit gives you more headroom for less.
How to Choose: The Specs That Actually Matter
Start with the waveform, not the number in the title. Work out the fastest square wave you need rather than the fastest sine wave you might want, because on nearly every unit here the square wave ceiling is well below the headline figure. Audio and filter work live under a few hundred kilohertz; microcontroller clock and ADC stimulus work reaches into the megahertz; anything touching a radio front end needs real sine bandwidth plus a clean square wave.
Channels are the second decision and the one people get wrong most often. One channel is enough if you measure one signal at a time. Two channels are what you need the moment you want to compare input against output, characterise a filter response, or run a differential test. Three channels only matter for multi-point and three-phase work. Phase-locked channels are worth paying for on op-amp and power supply measurements specifically.
Sample rate and vertical resolution set how much detail survives. Sample rate is what determines edge quality on fast signals, and 300 MSa/s gives visibly cleaner transitions than 200 MSa/s. Vertical resolution in bits controls how much a quiet signal is quantised into steps, and 14-bit is the practical floor for clean low-amplitude sine waves. Sixteen-bit on the Siglent SDG2042X is a real upgrade for anyone chasing distortion or small-signal behaviour.
Arbitrary memory depth decides how complex a user waveform you can play back. The 2048 points on the Koolertron is fine for simple shapes and short for audio. The 4Kpts on the UTG962E is workable but shallow. Deeper memory lets you build realistic audio envelopes, long noise bursts and complex sensor stimuli without editing them down to something the unit can hold.
Modulation and sweep are the next tier. AM, FM, PM and FSK cover most analog work. FSK, ASK and PWM matter for control and digital stimulus, and PSK appears only on the UTG932E in this list. If you plan to automate, check for SCPI over USB or LAN, since that is what makes a Bode plot sweep automatic rather than manual. Note which of these units have a sync or trigger output for sweep, because without it, triggered captures are awkward.
Finally, the accessories. Several models at the budget end arrive without BNC test leads, so budget for a set of 50 ohm BNC-to-BNC cables and a minigrabber lead set. The UTG962E includes BNC cables in the box, which is worth knowing. Documentation matters more than people expect too, since the fastest way to abandon a menu-driven unit is to lose the manual.
Signal Generator vs RF Generator vs Audio Oscillator
An RF signal generator is built around a carrier: it produces a modulated high-frequency signal with a defined carrier frequency and modulation depth, for testing receivers, transmitters and RF chains. A function generator produces basic waveforms from a low frequency up to a specified ceiling, designed for analog and general electronics work. A hobbyist function generator will not give you the calibrated carrier level, modulation accuracy or low phase noise an RF signal generator is built for, even when its headline frequency reaches the same number.
An audio oscillator sits at the other end. It is a simpler instrument built to produce a low-distortion sine for amplifier testing, which is the question that dominates the audio hobbyist forums. When distortion is what you are chasing, a dedicated oscillator is the better tool. When you want sweep, modulation, a second channel or a square wave, the function generator wins.
Ultra-Budget DDS Vs Benchtop: Where The Money Goes
The cheapest tier here is a DDS box with two channels, a 200 to 300 MSa/s sample rate, 14-bit resolution, sweep and a frequency counter. That covers audio, filters, sensors, microcontroller stimulus and teaching completely, and the review counts on the Koolertron and Seesii show this class is well proven rather than a gamble.
Moving up the range you are buying three things: deeper arbitrary waveform memory, better documented software, and remote control that actually works. The Siglent SDG2042X is the clearest example. Its Ethernet and USB control with NI Visa support is what turns a generator into part of an automated measurement, and the 16-bit resolution and TrueArb output are what you are paying for when you want to see real waveform detail.
Used and legacy units are a legitimate third route, and the forums treat them as routine rather than exotic. Hand-me-down HP 8657B and Tektronix bench generators are still recommended by owners who describe them as jewels and note they cost very little. The tradeoff is calibration age, no warranty and no modern automation, and for analog work that is a perfectly reasonable place to start. Check the calibration date and the output level accuracy before you rely on one for anything precise.
Which Generator Matches Which Project
For audio amplifier testing, the priority is low-distortion sine, accurate amplitude and a usable second channel. The Abestop 70MHz AWG and the Koolertron both fit, and if distortion is the specific target, a dedicated audio oscillator beats all of them.
For microcontroller and ADC work, look at sample rate, edge quality and offset accuracy. The Abestop 70MHz AWG and the Siglent SDG810 with Easy Pulse cover fast digital stimulus, and the accurate DC offset on the compact dual-channel unit helps with bias testing.
For sensor and filter characterisation, the two-channel units with sweep win, and deeper arbitrary memory lets you use a realistic stimulus. The Siglent SDG2042X and the Abestop 70MHz AWG both have the waveform depth for that, and the DGE1060 is worth considering where frequency accuracy is the deciding factor.
For radio and RF work, verified frequency accuracy matters more than headline bandwidth. The OWON DGE1060 is the pick on the strength of its measured reference accuracy, with the caveat that you should check the radiated noise against your own setup first. The Seesii JDS6600 covers 60 MHz if your work stays modest.
For a first bench or a classroom, the Koolertron and the Seesii are the two I would choose, with the DOMINTY FY6900 for teaching groups that need staircase output and a meter. The Koolertron has the most owner reviews behind it, and the Seesii has more bandwidth for the money.
Your First Ten Minutes With a New Generator
Confirm the output first. Set a 1 kHz sine at a moderate amplitude, connect channel one to your scope through a proper 50 ohm terminated cable, and check the amplitude and period against the front panel numbers. If they agree, your unit is basically working and the rest is confidence building.
Then check the square wave. Set a 1 kHz square, look at rise time and overshoot, and then repeat near the top of the frequency range you care about. This is the test that reveals the real ceiling of the unit, and it takes two minutes. It is also the single most useful two minutes in the whole process, because it tells you whether the headline number means anything for your work.
Third, build a filter response sweep. Put your filter between the generator and the scope, sweep the generator across the band you care about, and watch the amplitude of the output channel relative to the input. Watching both channels at once on a two-channel scope is the clearest view of what a filter does, and it is the fastest way to understand why your generator has two channels at all.
Finally, if you want to automate this, connect over USB and run a sweep from a script using SCPI. Log the input and output amplitudes at each step and plot the ratio. That is a Bode plot, and it takes an afternoon on any of the units here with USB and SCPI support. It is the single most useful project a new function generator owner can build, and it turns the instrument from a tool into part of a measurement system.
Frequently Asked Questions
What brand of generator is the most reliable?
Reliability tracks documentation and support more than the badge. Siglent, Rigol, Keysight and Tektronix are the trusted tier, with published manuals, warranty service and calibration available. OWON and UNI-T sit in the mid tier and are solid, though documentation is thinner. The budget DDS tier from Koolertron, Seesii and the FY-series boxes has the longest review history of all, but build quality and bundled software are the weak points.
What is the difference between a signal generator and a function generator?
A function generator produces standard test waveforms such as sine, square, triangle and pulse at a frequency and amplitude you set. A signal generator is the broader category, which also includes RF signal generators built around a modulated carrier and arbitrary waveform generators for custom shapes. For hobby bench work, a function generator and an arbitrary waveform generator are usually the same box.
What is the difference between a signal generator and an RF generator?
An RF signal generator is built around a carrier and produces a modulated high-frequency signal with calibrated carrier level and modulation accuracy, for receiver and transmitter testing. A function generator produces basic waveforms for general electronics work. Even when the two reach the same maximum frequency, they are different instruments, because the RF unit is specified for carrier level, phase noise and modulation fidelity.
Can I use a function generator as a power supply?
No. The output is a low-power AC signal referenced to ground, not a regulated DC supply, and the current available is far too small to power a circuit. You need a bench DC power supply for that. A generator is for driving a signal into a circuit while you watch what happens to it.
Where can I find a cheap function generator?
The budget DDS tier is where the low prices are, and it is a proven class rather than a risky one. Look for two channels, 200 MSa/s or more, 14-bit resolution, sweep and a frequency counter. Check whether BNC test leads are included before you buy, because several models in this class arrive without them. Used and refurbished bench instruments are also a legitimate option for analog work, provided you check the calibration date.
Do function generators come with test leads?
It varies, and this is a common post-purchase surprise. Some models include BNC cables in the box and some do not. The models listed here vary, so check the included items carefully and budget for a set of 50 ohm BNC-to-BNC cables plus a minigrabber set if they are not supplied. Using the right 50 ohm terminated cable also matters for getting the amplitude you set.
What are the limitations of using a function generator?
The main limits are that the headline frequency is sine only, with square and pulse ceilings well below it. Output current is low, so it cannot power anything. The output is referenced to ground, so it shares a path with your building unless you isolate it. Cheap models tend to have shallow arbitrary memory, often no sync output, and single-channel models cannot compare input and output at the same time.
The Best Function Generators for Hobbyists: Final Verdict
The Siglent SDG2042X is the pick. Dual channels at 40 MHz, 16-bit resolution, TrueArb output and working Ethernet and USB automation put it ahead of everything else here, and the 4.7 rating across 154 reviews is backed by a large enough sample to trust.
Buy the Koolertron 15 MHz DDS if you want two channels and stable output for the least commitment. Buy the Seesii JDS6600 if you want more bandwidth for the same money. Buy the Abestop 70MHz AWG for accurate offset and 300 MSa/s, the OWON DGE1060 for verified frequency accuracy on radio work, and the UNI-T UTG962E if you need to work away from mains ground. Every one of these is a defensible bench, and the differences come down to which waveform you actually need rather than which brand name is loudest.
