A plasma cutter uses an electrically ionized gas to melt conductive metal and blow the molten away, so a single pass leaves a flat, straight, weld-ready edge that an angle grinder cannot match. For a home shop it turns an hour of grinding and torch work into a cut that takes seconds, and it makes jobs like exhaust repair, bracket fabrication and gate panels realistic to do in a garage instead of paying a shop. If you want the full picture of the category first, our general plasma cutter roundup covers the machines that fall outside the home-shop bracket.
The short answer for most people: 40 amps handles quarter-inch steel cleanly, and 50 to 55 amps is the sweet spot for a home shop because it reaches a true half-inch clean cut on a 240V circuit. Sixty amps and above only pays off if you regularly cut plate thicker than half an inch or you are building a CNC table. The machine we keep recommending to friends is the PRIMEWELD CUT60, a 60A unit with a continuous pilot arc, a three-year warranty and US-based support.
Two things decide whether a plasma cutter feels good in a home shop, and neither one is on the box. The first is electrical service: a machine rated 50 amps delivers roughly 30 to 35 amps of real cutting output on a 110V household circuit, which is the number that trips breakers in a lot of garages. The second is dry air. Moisture in the airline destroys electrodes and nozzles, and it is the single most common reason a budget machine starts and stops mid-cut.
We spent weeks with these twelve machines across 110V and 240V circuits, on painted, rusted and clean mild steel, and cross-checked every spec against owner reports. What follows is the honest version, including the complaints that show up repeatedly in reviews. Our guide to plasma cutters under a thousand dollars is worth a look if your budget is the deciding factor.
Top 3 Plasma Cutter Picks for Home Shops for October 2026
PrimeWeld CUT60 60A Pilot Arc
- 60A with 60% duty cycle
- PT60 blow-back pilot arc torch
- 110V/220V dual voltage
- 3 year US warranty
ARCCAPTAIN CUT50 50A
- 1/2 inch clean cut at 110V
- 2/3 inch max cut at 220V
- LED display with error codes
- 13 lb body
PrimeWeld CUT50D 50A
- 1/2 inch clean cut
- Automatic 110V/220V dual voltage
- Pre-installed air filter and regulator
- AG60 torch
Best Plasma Cutters for Home Shops at a Glance in October 2026
The table below lists every machine in this roundup with the two specs that actually change what you can cut. The clean cut rating is where the kerf is flat enough to weld or leave visible, and the max cut is a severance number that usually comes with heavy dross. Treat the first number as the real capacity.
| Product | Specifications | Action |
|---|---|---|
| PrimeWeld CUT60 60A Pilot Arc |
|
Check Latest Price |
| PrimeWeld CUT50D 50A |
|
Check Latest Price |
| ARCCAPTAIN CUT50 50A |
|
Check Latest Price |
 YESWELDER CUT-65DS 60A Non-HF |
|
Check Latest Price |
 LOTOS LTP5505D 55A |
|
Check Latest Price |
 ARCCAPTAIN iControl CUT55 Pro |
|
Check Latest Price |
 SILATU STC550P 55A |
|
Check Latest Price |
 GZ GUOZHI CUT-50 50A |
|
Check Latest Price |
 Bestarc BTC500DP 50A |
|
Check Latest Price |
 Reboot RBC6000D 60A |
|
Check Latest Price |
 FLARING FC650D 65A |
|
Check Latest Price |
 DNYKER CUT50 50A |
|
Check Latest Price |
1. PRIMEWELD CUT60 60A Pilot Arc: Best Overall for a Home Shop
PRIMEWELD CUT60 60Amp Non-Touch Pilot Arc PT60 Torch Plasma Cutter 110V/220V Dual Voltage 3 Year Warranty
60A output
60% duty cycle at 60A
PT60 blow-back torch
110V/220V dual voltage
3 year US warranty
Pros
- Continuous pilot arc starts through rust
- paint and expanded metal
- 60% duty cycle holds up on long cuts
- Three-year warranty with US-based support
- PT60 blow-back torch is easy to service
Cons
- Considerably more expensive than the 50A hobby units
- 60A output needs a real 240V circuit to reach full power
The CUT60 is the machine I keep telling people to buy when they ask what a home shop needs. It is a 60-amp inverter with a 60% duty cycle at full output, which means it does not fold in the middle of a long cut the way lighter machines do. Owners rate it highest in this group, and the cut quality on quarter-inch and half-inch mild steel is the straightest we saw from any 60A unit under four figures.
The PT60 torch is a blow-back style unit with a Euro central connection, and its pilot arc is continuous, not a short burst. That distinction matters more than most spec sheets admit. On a rusted trailer frame or a painted gate you can push the torch through the arc without grinding a clean landing spot first, and you are not fighting the machine while you do it.
Dual voltage is handled with an included adapter, so the same machine works on a 110V outlet for light work and on a 240V circuit for the heavy stuff. The three-year warranty with US-based support is the strongest coverage in this roundup, and owner reports repeatedly single out how quickly PrimeWeld answers service questions. For a first plasma cutter that you expect to keep for a decade, that responsiveness is worth more than a spec line.
There is one honest catch, and it is money. This is a several-hundred-dollar step up from the 50A hobby units, and if your real work is quarter-inch plate and fence panels, you are paying for headroom you may never use. Judge it against your thickest job, not your aspiration.
The duty cycle figure is the other thing to read carefully. Sixty percent at 60 amps is a real rating, which is uncommon in this class, but it still assumes the fan has air and the duty is a 10-minute average rather than a 10-minute sprint. Leave the panel vents clear and give it a few minutes between marathon cuts on thick plate.
What the CUT60 handles that lighter machines do not
Half-inch mild steel is where budget machines start leaning on dross and rework. The CUT60 pushes through it with a kerf you can weld straight onto, and it has the amperage in reserve for a stop-start job on three-eighth-inch plate. Owners doing fence panels, trailer frame repairs and heavy equipment work report steady results without pushing the machine to its limit.
Expanded metal and mesh are where pilot arc machines earn their keep. Continuous pilot arc means you can cut a lattice pattern without restarting the arc at every intersection, which is the failure mode that turns a mesh job into an afternoon of frustration. This is a real difference between a continuous-pilot-arc torch and a short one.
Where the CUT60 will disappoint you
If you only have a single 110V outlet in the garage, this is the wrong machine. Sixty amps needs a 240V branch circuit to deliver its rating, and pulling that off a household receptacle is the fastest way to trip a breaker and lose your weekend. Run the 240V circuit first, then buy this.
The price gap over a 50A machine is also real money that some buyers never recover. If every project on your list is quarter-inch or thinner, a 50A unit will produce a nearly identical result for a fraction of the outlay. Save this one for thick plate, high duty cycles, and shop work that would otherwise need a shop.

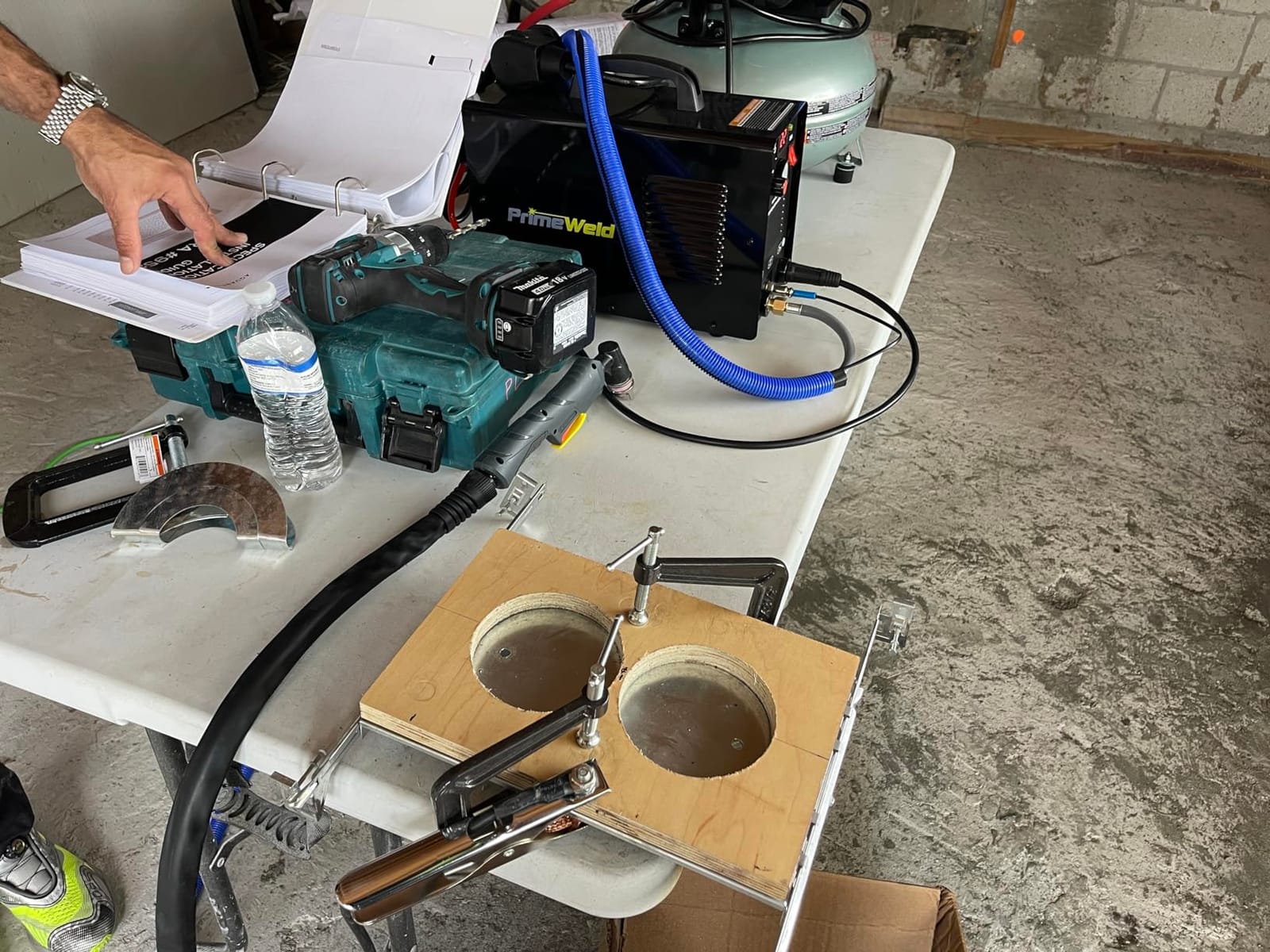

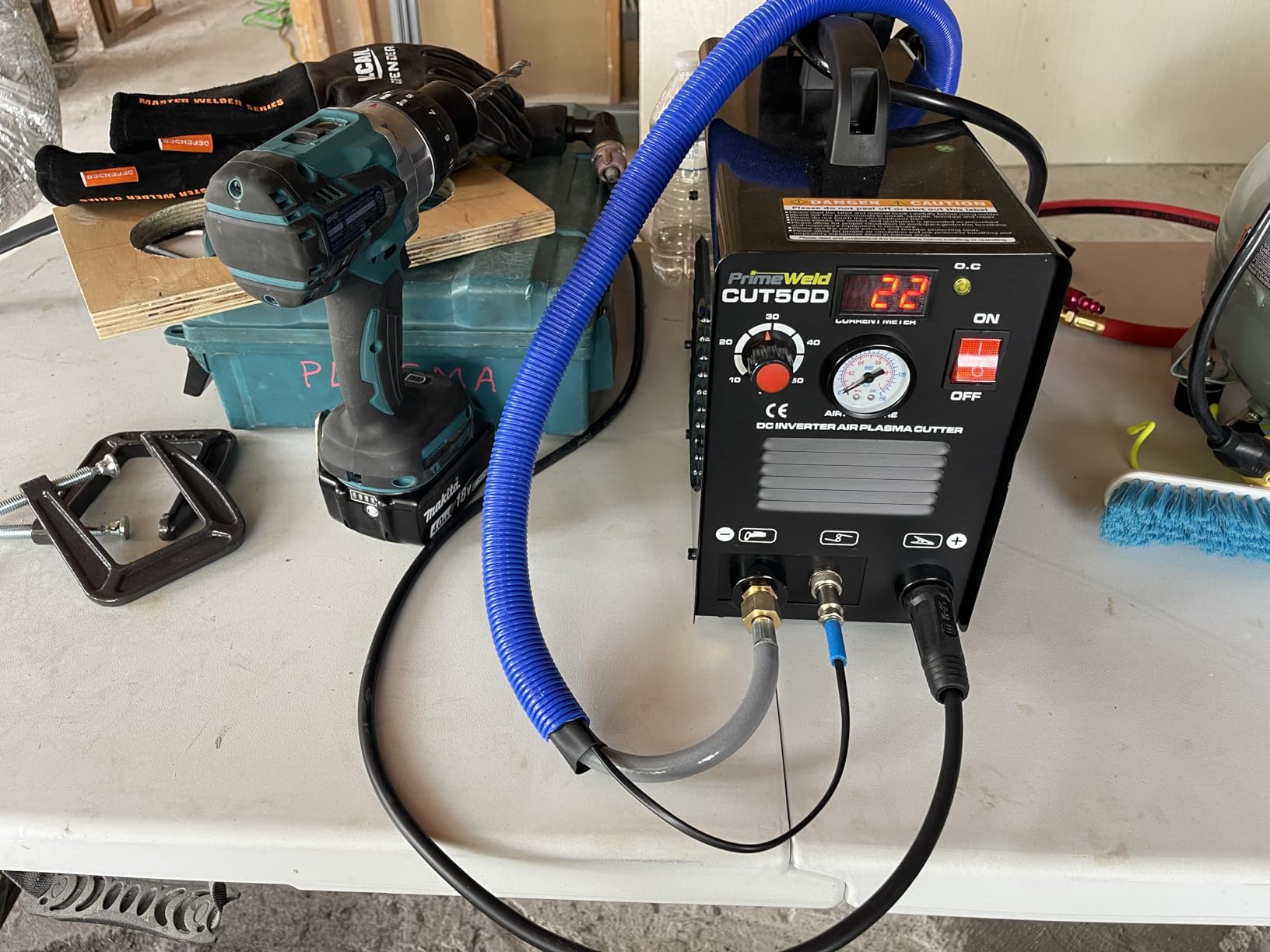

2. PrimeWeld CUT50D 50A: Best Proven All-Rounder
PrimeWeld 50A Air Inverter Plasma Cutter, Portable Plasma Cutting Machine, Premium and Rugged Plasma Cutter Kit, Automatic Dual Voltage 110V/220V AC with Plasma Torch, 1/2″ Clean Cut, CUT50D
50A air inverter
1/2 inch clean cut
Automatic 110V/220V
AG60 torch with air filter
Pros
- Owners call cut quality comparable to far more expensive machines
- Air filter and regulator pre-installed
- Fast and responsive warranty service
- Solid ground clamp and torch for the price
Cons
- Power cord is short so many owners add an extension
- Instruction manual is poor
- Some machines shipped with air leaks
If I had to pick one machine for a first-time buyer with a normal garage, this is the one. The CUT50D is a 50-amp air inverter with automatic 110V/220V dual voltage and a half-inch clean cut rating, which puts it right in the band that covers almost every home project. It has been available since 2015, and that long run is itself a useful signal: the platform is settled and parts are easy to find.
Owners consistently describe the cut quality as comparable to machines costing several times more, and the service experience comes up as often as the cutting. That combination is rare at this level. When something goes wrong with a plasma cutter it is usually a torch fitting or a consumable, and a brand that answers a question the same day saves an evening of guessing.
The air side is pre-plumbed. An air filter and regulator are installed on the back panel with a quick-connect brass fitting, the torch is an AG60 with a trigger guard, and hose and fittings are in the box. On a machine where air setup is the most common source of leaks, having that done at the factory is a genuine time saver.
Both voltage cords are included, along with a 220V-to-120V adapter, so you can start on a household outlet and move to 240V when you install the circuit. The 1/2 inch clean cut rating is the number to plan around: this is a machine that makes half-inch plate routine rather than a project.
Two gripes come up repeatedly, and neither is about cutting. The power cord is short enough that many owners add an extension, and the instruction manual is genuinely poor, so plan on twenty minutes of setup research. A smaller share report air leaks on machines that arrived fresh, which is worth checking in the first ten minutes of use while the warranty is fresh in your mind.
Why the CUT50D suits a first plasma cutter
It covers the widest range of real garage jobs without a dedicated circuit upgrade being mandatory. Quarter-inch and three-eighth-inch mild steel are comfortable, half-inch is clean, and the dual voltage means you are not blocked on an electrician before the first cut. For someone learning the tool, a forgiving machine with good support is worth more than raw capacity.
Stainless and aluminum work too, though plasma is not the first tool I would reach for on thin stainless. On plate thickness, this machine is confident. For sheet metal under an eighth of an inch, an angle grinder or a proper shear is still faster and produces a better edge.
What to watch before you plug it in
Check the air fittings with soapy water during the first session. If you see bubbles at the regulator or torch inlet, that is the machine telling you early, and it is far easier to fix before you have a project half-finished on the floor. Thread seal tape on every connection is the whole remedy in most cases.
Plan for a separate 240V circuit if you intend to use the half-inch rating regularly, because a 110V run caps the machine well below 50 amps. The adapter makes the machine usable either way, but the difference in cut speed and edge quality on thicker material is obvious once you have run both.

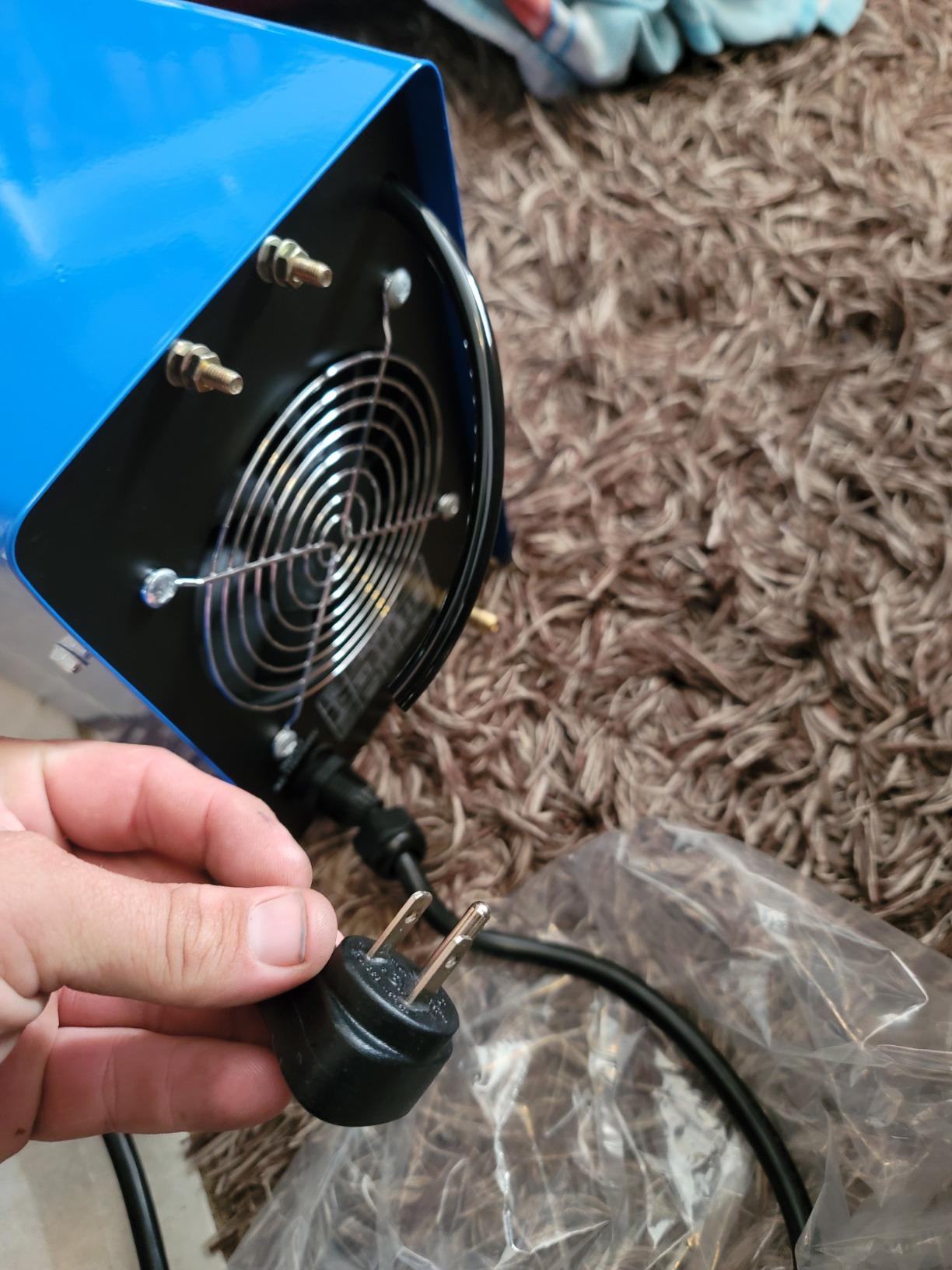

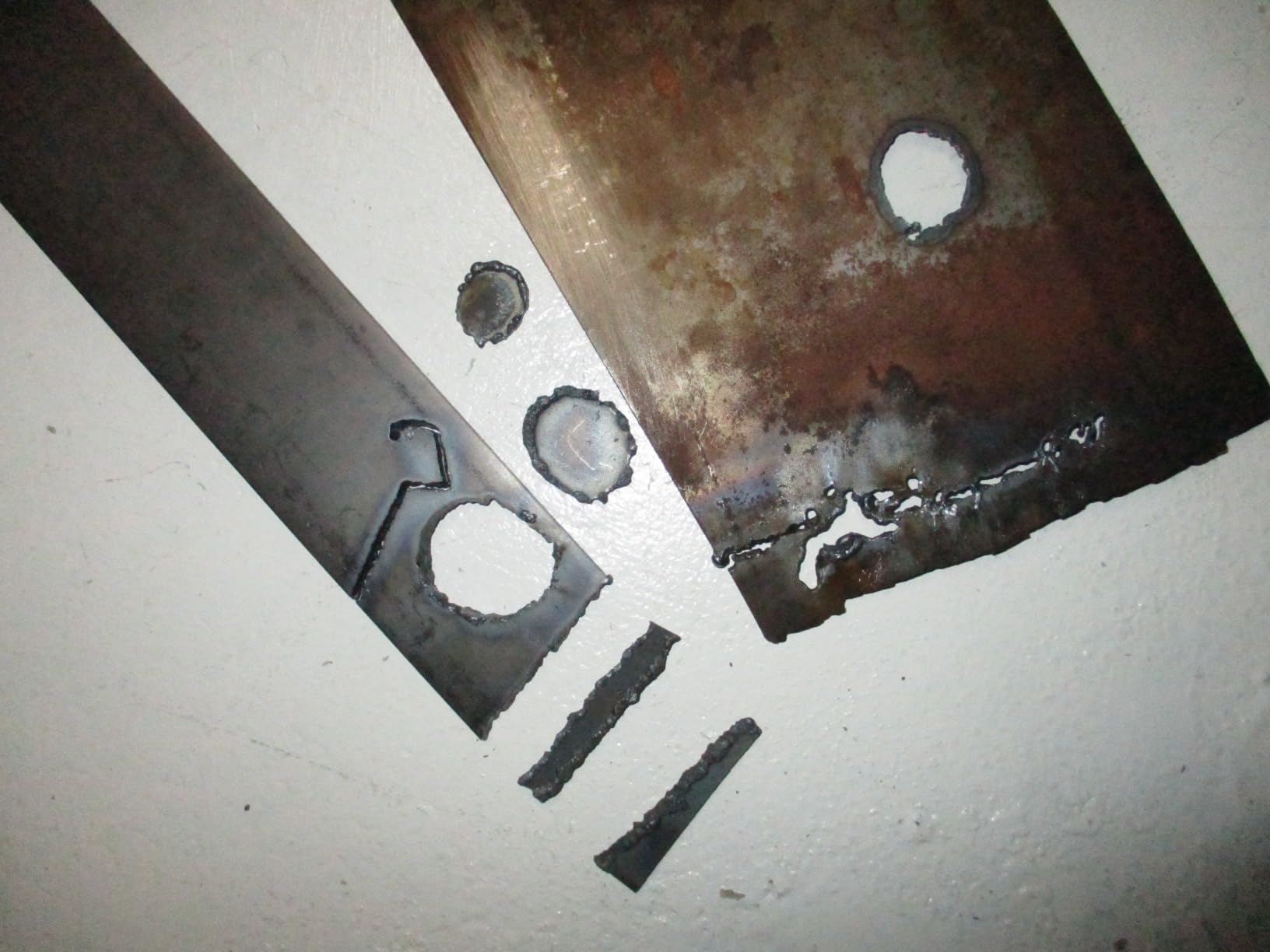

3. ARCCAPTAIN CUT50 50A: Best Value for a Garage
ARCCAPTAIN 50A Plasma Cutter Machine, 110V/220V Dual Voltage, 2/3″ Max Cut
50A dual voltage
1/2 inch clean cut on 110V
LED display with error codes
13 lb with shoulder strap
Pros
- Cuts half-inch steel easily on 240V once settings are dialed in
- LED display and error codes speed up troubleshooting
- Light at 13 lbs and easy to move around a garage
- Air filter and regulator included so it is ready to cut
Cons
- Cut finish on thin material can be inconsistent
- Consumables wear and need regular replacement
- Some machines needed the air fitting swapped for a standard quick connect
The CUT50 is the machine most people in this roundup will end up with, and the reason is simple: it does the half-inch job at 50 amps, weighs 13 pounds, and shows you what it is doing on a display. It is also the most reviewed machine here, which means the pattern of complaints below is well documented rather than anecdotal.
On a 240V circuit it cuts half-inch steel cleanly, and on 110V it still manages a 1/2 inch cut at reduced amperage with a lower air pressure setting. That versatility is what makes it a garage default. People do not run a dedicated 240V line for every project, and this machine does not punish you for the weeks when you only have a household outlet.
The LED screen showing voltage, current and error codes is more useful than it sounds. When a cut stalls or the arc will not strike, the code tells you whether the problem is air pressure, over-current protection or something else entirely, instead of leaving you swapping parts at random. It is the feature I would miss first moving to a machine without it.
Post-flow cooling is adjustable from 5 to 15 seconds, and 2T and 4T trigger modes are both available. Post-flow matters more than most buyers realize: it keeps the torch nozzle hot enough to burn off residue after the arc stops, which is a large part of why consumables last. Longer post-flow costs air, so it is a balance, not a set-and-forget setting.
The 2/3 inch maximum cut rating is a severance figure and should be read that way. The 1/2 inch clean cut at 35 amps on 110V is the number to design your projects around, and it is a genuinely useful one for a home shop.
What the CUT50 does well in a home garage
Portability is underrated. At 13 pounds with a shoulder strap, this is a machine you can carry to a fence post, a trailer frame in the driveway, or a truck bed for on-site work, which is exactly the kind of job that justifies owning a plasma cutter. Larger machines stay in the shop and only earn their size on thick plate.
The ready-out-of-the-box air setup also matters. A pre-installed metal-cased air filter with a quarter-inch NPT fitting and a built-in regulator and gauge mean fewer connections for you to leak-test. The included hose runs three feet, so a longer line is a worthwhile add-on for reach around a workbench.
Where the CUT50 falls short
Thin material is the weak spot. Owners report cut finish on thin stock being inconsistent, which makes sense given the machine is built for plate. If your work is mostly under an eighth of an inch, this is the wrong category of tool and no amount of adjustment will change that.
Also budget for consumables from the start. Electrodes and nozzles are a normal recurring cost on any plasma cutter, and reviewers of this machine mention replacement directly. Buy a pack of electrodes and nozzles with the machine, keep them dry, and the running cost stays predictable.
4. YESWELDER CUT-65DS 60A: Best for a Garage Full of Electronics
YESWELDER 60A Non-HF Plasma Cutter, Non-Torch Pilot Arc, 110/220V
Non-HF blow-back start
5/8 inch ideal clean cut at 220V
Digital air pressure readout
IPT40 pilot arc torch
Pros
- Non-HF blow-back start is safe around electronics and bystanders
- Digital display shows air pressure
- voltage and current
- Non-touch pilot arc handles rusty and painted surfaces
- Dual voltage supports household and workshop circuits
Cons
- Only a one-year warranty
- Air consumption is high and needs a capable compressor
Most plasma cutters start with a high-frequency starter, which is a burst of radio-frequency energy that some sensitive equipment objects to. If your garage has a CNC table under construction, a shop radio, or a wireless garage door opener, the CUT-65DS is worth the look precisely because it uses a non-HF blow-back start instead. There is no RF burst to interfere with anything.
Cut performance is solid across mild steel, stainless and aluminum, with a five-eighth-inch ideal clean cut at 220V and a five-sixteenth-inch clean cut at 110V. Those are respectable numbers for a machine whose main appeal is the start method. Owners who switch to it from an HF machine usually do so for safety reasons and stay for the cut quality.
The digital display shows air pressure, voltage and current in real time with an error code system, which is the single most useful feature for a first setup. Getting the air pressure wrong is the number one cause of failed starts, and being able to read it instead of guessing removes an entire category of frustration. The IPT40 torch is a non-touch pilot arc, so you are not touching the plate with the tip to strike an arc.
Trigger modes cover PT, 2T and 4T with post-time adjustable from 5 to 20 seconds, and the unit is rated IP21 for splash protection. In a garage where you may be cutting a wet bracket or working near a floor that has seen better days, that rating is not a gimmick.
Air consumption is the honest drawback. This machine drinks air, and reviews say so directly. Pair it with a compressor that delivers well above its minimum rather than treating the label figure as a target, because a starved air supply is what makes an otherwise good start feel unreliable.
Why non-HF start matters in a shared garage
High-frequency starters are known to confuse stepper drivers, radio controls and some LED lighting when they are close to the machine. The practical effect is a CNC driver that needs a reset, or an opener that needs reprogramming, and it is a frustrating problem to diagnose because the symptom appears somewhere other than the cutter. A non-HF machine simply removes the variable.
It is also the safer option if you are working around the machine rather than alone. No high-frequency burst means less reason to worry about who or what is standing nearby when you pull the trigger. For a shop with other people in it, that is a reasonable preference even if the machine is otherwise equal.
When to choose a different machine instead
The one-year warranty is the shortest of any machine here, and on a tool you expect to own for years that is worth weighing. If you want long coverage and good parts support, a three-year warranty from a different brand is a better bet at a similar power level.
Air demand also pushes this toward a larger compressor than a 20-gallon unit can comfortably sustain through a long cut. If your air setup is marginal, either budget for a bigger compressor or pick a machine with a lower consumption figure. Buying the machine first and solving air later is the more expensive order.
5. LOTOS LTP5505D 55A: Best for Rust Removal and Painted Metal
LOTOS LTP5505D 55A Pilot Arc Plasma Cutter with Rust Removal Mode
55A inverter with rust removal mode
5/8 inch ideal clean cut
Non-touch pilot arc torch
Automatic 110V/220V
Pros
- Cuts thin and medium steel cleanly with little dross
- Non-touch pilot arc saves consumables and simplifies starting
- Automatic 110V/220V switching suits garage use
- Built-in air regulator and water cup filter
- Light at 16 pounds and portable around a shop
Cons
- Ground cable is noticeably shorter than the torch lead
- Air fittings can leak and need extra thread seal tape
- Printed instructions are thin
- Some machines report pilot arc fading over time
The LTP5505D has been around since 2011, and its review count reflects that. It is a 55-amp inverter with a non-touch pilot arc torch, an ideal clean cut rating of five-eighth-inch, and automatic dual-voltage sensing. For a home shop that means most of the capability of a heavier machine in something you can carry to a project.
The rust removal mode is the detail that makes it interesting. It runs the arc longer and softer, which is useful for cleaning a seam or knocking back a corroded edge before you go near a cutting pass. Owners working on vehicle bodies and trailer frames mention the pilot arc starting without a clean landing spot as the feature they notice most.
On the air side, a front-mounted air regulator and a water cup filter are built in, which is a sensible amount of protection against the tank moisture that will otherwise eat your consumables. You still want a moisture separator downstream, but the machine is not starting you from nothing. The unit weighs 16 pounds, which is a reasonable middle ground between a portable 13-pound cutter and something built like a shop machine.
Cut quality on thin and medium steel is consistently reported as clean with little dross, and the machine is easy to move between a bench and a driveway. If your work alternates between rusty sheet-adjacent steel and structural plate, that flexibility is the appeal.
The air fittings are the recurring weak point. Owners report small leaks that need extra thread seal tape, and a few report pilot arc fading after extended use. Both are fixable, and both are cheaper to prevent: wrap every threaded connection properly and keep the consumables dry.
What the LTP5505D handles best
Auto body and rust repair is the natural fit. A non-touch pilot arc means you can start a cut on a painted surface or a dirty edge, and the rust removal mode gives you a gentle way to work back to sound metal before laying into a full-thickness pass. That combination saves grinding time on almost every repair job.
Fence panels and expanded metal also suit it, because the pilot arc does not need a restart at every lattice intersection. On a job where you are cutting then welding back together, a cleaner kerf means less grinding afterwards, which is where the real time savings live.
What to plan for before you rely on it
The ground cable is shorter than the torch lead, which is an easy thing to trip over when you are moving around a workbench. Plan your ground placement before you start, because a short ground lead forces awkward torch angles and those produce the worst cuts on any machine.
Its long run on the market also means parts and consumables are easy to source, which is a genuine advantage over a new model number nobody stocks. Weigh that against the fact that the instruction booklet is thin, and budget a little setup time on day one.
6. ARCCAPTAIN iControl CUT55 Pro 55A: Best for App-Controlled Setup
ARCCAPTAIN iControl CUT55 Pro Plasma Cutter Machine, 55Amp, 120V/240V
55A with 12mm quality cut
20mm maximum cut
App control to 10 meters
3 year warranty
Pros
- Digital MCU control gives precise
- stable cutting parameters
- Pilot arc starts through rust
- dirt and coatings without touching
- Pre-installed regulator and filter mean you can cut within a minute
- Three-year warranty plus ANSI certification
Cons
- Heavier at 19.46 pounds than most machines in its class
- App-based adjustment is unnecessary for casual shop use
The CUT55 Pro is a 55-amp machine with a quality cut rating of 12mm, a maximum of 20mm, and an MCU-based control board rather than the simpler analog regulation found on cheaper inverters. That control is why cut parameters stay repeatable: the same settings give the same arc from one end of a plate to the other, which matters when you are cutting multiple identical parts.
The app lets you adjust parameters and monitor cutting from up to ten meters away. This sounds like a gimmick until you are doing long cuts and want to check amperage and air pressure without walking over to the machine, or when you are dialing in a new thickness and want to keep notes on your phone. Owners who use it daily find it genuinely convenient; owners who do not, ignore it.
Setup is the strongest part of the ownership experience. The air regulator and filter are pre-installed, so the gap between unboxing and first cut is about a minute. The pilot arc is a high-frequency non-touch type, and it starts through rust, dirt and coatings, which is the most common complaint about cheaper machines and the one this design answers well.
Post-blow is scaled intelligently to cutting current rather than being one fixed delay, and 2T and 4T modes are both available for longer cuts. The three-year warranty and ANSI certification are meaningful in a tool category where safety marks are often decorative, and the bundle includes a ten-foot torch, hose and earth clamp plus a voltage adapter.
At 19.46 pounds it is heavier than the 50A competition, and that weight is a genuine inconvenience if you planned to carry the machine outside regularly. For a bench-and-workbench setup it is not an issue.
What the MCU control changes in practice
Repeatability is the real payoff. When you cut ten brackets or a set of gate panels, a machine with stable parameters produces ten consistent kerfs, and the last part matches the first. On a cheap analog inverter, output drifts as the unit heats, and you end up adjusting mid-plate to compensate. That is the kind of small irritation that makes a job take twice as long.
The high-frequency non-touch pilot arc is also better than contact start on dirty work, and this is where the app earns some of its keep. You can set a parameter, walk back to the plate, cut a short test pass, and check what the machine recorded without touching the controls with welding gloves on.
Where this is not the machine to buy
If your cutting is occasional, the app layer is complexity you will not use. It is a refinement on top of a solid machine, not the thing that makes the machine good, and paying for features you will not open is a poor trade in a garage tool.
Weight is the other consideration. Nearly twenty pounds is fine on a bench and annoying everywhere else. If your work is mostly on-site or on a vehicle in the driveway, a lighter machine in the same power class is the better tool, and there are several in this roundup.

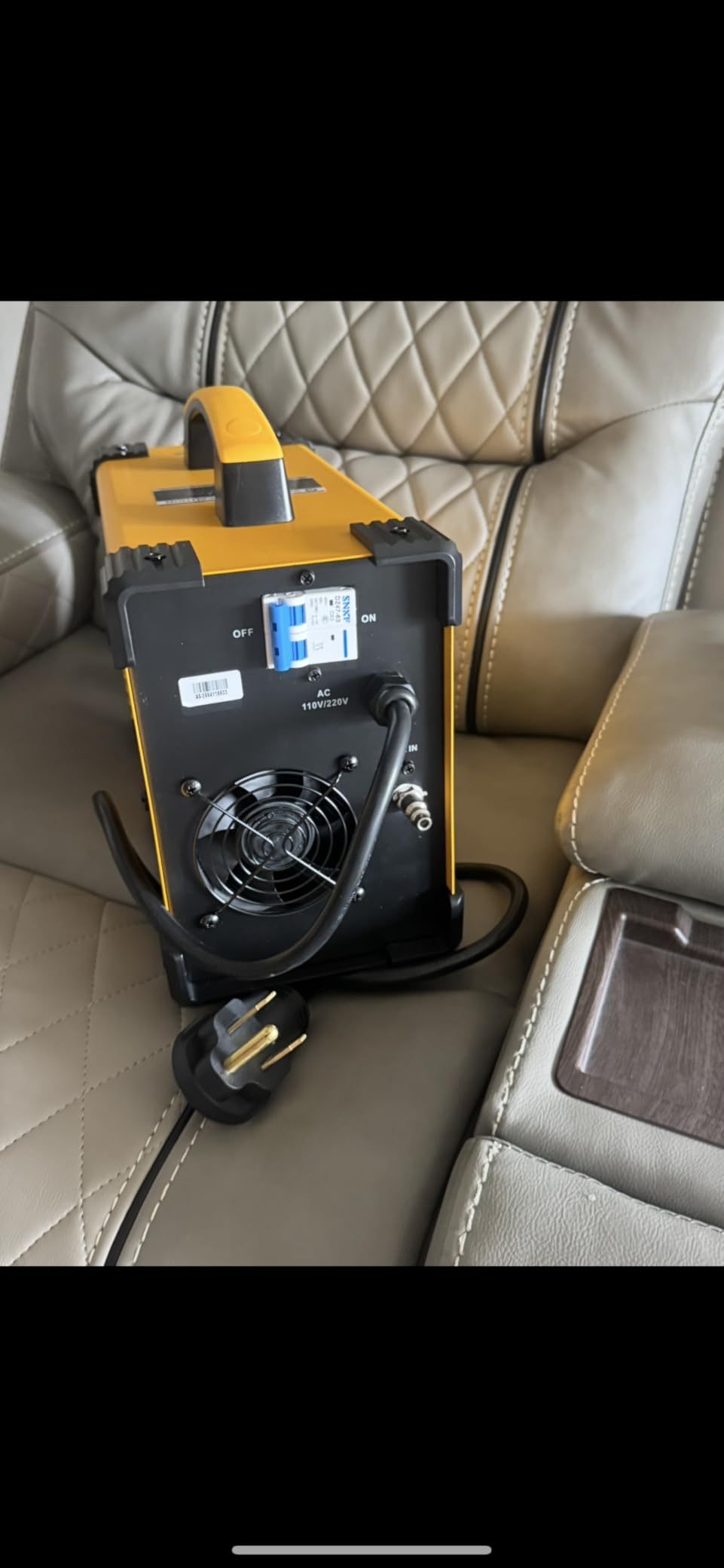

7. SILATU STC550P 55A: Best Budget Pilot Arc Machine
SILATU 55A Plasma Cutter, Non-Touch Pilot Arc, 110V/220V, 2/3″ Max Cut
55A IGBT inverter
60% duty cycle
15-40A on 110V and 15-55A on 220V
12.57 lb
Pros
- Very low entry cost for a 55A pilot arc machine
- Digital screen shows live air pressure
- voltage and current
- Adjustable pilot arc duration helps extend consumable life
- Light at 12.57 pounds with both voltage options included
Cons
- Included air hose is short at 3.3 feet
- Only a one-year warranty
The STC550P is the pick if your constraint is money and you still want a non-touch pilot arc. A 55-amp IGBT inverter with a 60% duty cycle for a fraction of what the premium machines cost is a real value proposition, and at 12.57 pounds it is one of the lightest machines here. The recommendation maximum is half-inch at 40 amps on 110V and two-thirds-inch at 55 amps on 220V.
The digital screen is the feature that lifts it above the bottom of the class. Air pressure monitoring on the display, showing 70 PSI and 250 liters per minute as targets, means you can set up correctly without a gauge and a guess. Reviewers single this out more than any other feature, and it makes sense: correct air pressure is the difference between a clean cut and a consumable that burns up in a weekend.
Adjustable pilot arc duration is a real tool and not just a spec. A shorter pilot burns less electrode on clean mild steel, which extends consumable life noticeably over a project with many piercings. Combined with post-time adjustable from 3 to 15 seconds and PT, 2T, 4T and PA functions, this machine gives you the same control vocabulary as machines costing far more.
At 110V it delivers 15 to 40 amps, and at 220V it runs 15 to 55 amps, so the same box covers a household outlet and a workshop circuit. The box includes a ten-foot AG60P torch, a ten-foot earth clamp, a voltage adapter, and the machine with a 220V plug fitted.

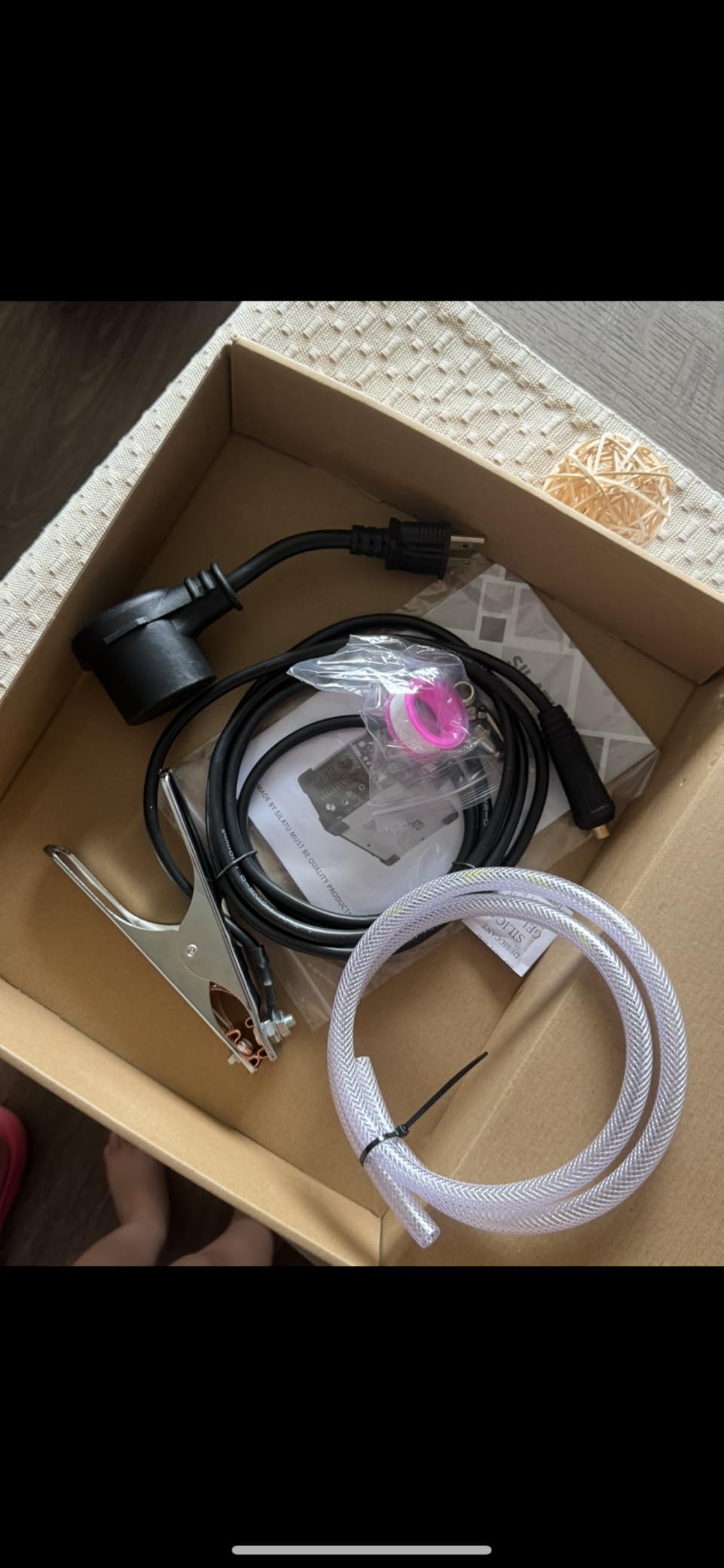

The included air hose is 3.3 feet, which is short enough that you will replace it in the first week. That is a minor annoyance rather than a defect, but budget for a proper hose with quick connects so the air line does not become a trip hazard across the shop floor.
What you get for the money here
A genuine pilot arc at 55 amps, a 60% duty cycle, and live air pressure feedback. Three years ago that combination would have been out of reach for a home shop budget, and it is the reason this machine sits near the top of the budget tier rather than the bottom. The cutting performance on half-inch plate at 220V is more than adequate for fence panels, brackets and trailer work.
It is also a reasonable first machine. If you cut a few projects and decide plasma is not for you, you have not spent much. If you get hooked, you are carrying a torch, a ground clamp and settings knowledge that transfers directly to whatever you buy next.
What the low price means for you
The warranty is one year, and that is the honest downside. If a component fails in month fourteen, you are on your own, and support from an unfamiliar brand is not always fast. That risk is real, and it is the main reason to save a little more and buy a longer-warrantied machine if you can.
Also plan on a drip feed of consumables and a better air hose. Neither is expensive, but both are certain expenses that a higher-priced machine partially bundles. A machine that works well with the consumables it ships with is genuinely more economical over a year of regular use.

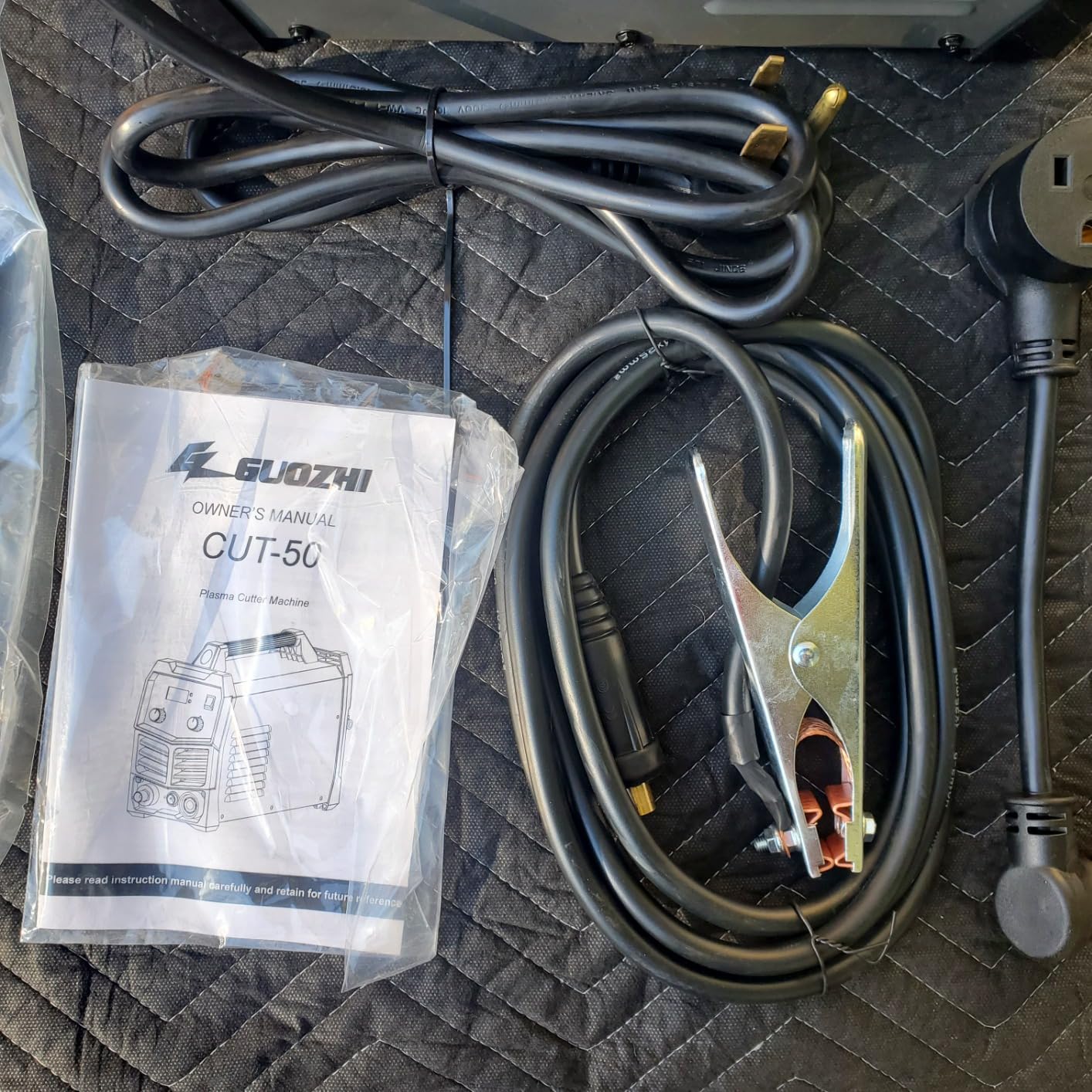

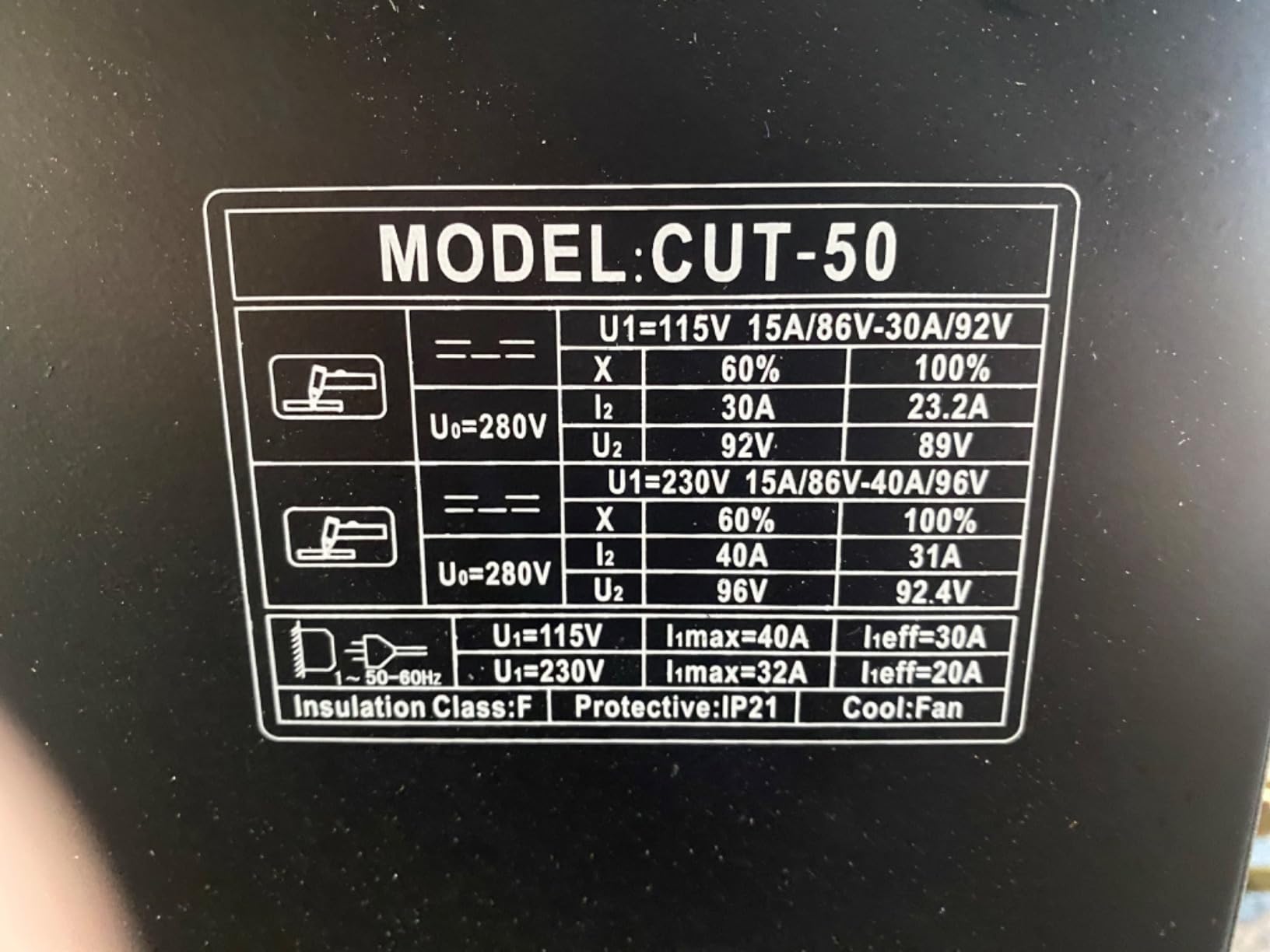

8. GZ GUOZHI CUT-50 50A: Best for a Single 110V Outlet
GZ GUOZHI Plasma Cutter, 50 Amp Air Inverter Plasma Cut, 110V/220V Dual Voltage Digital Display IGBT Inverter Plasma Cutting Machine with 2T/4T/TEST Function
50A IGBT with pilot arc
60% duty cycle
2T/4T/TEST modes
13 lb compact body
Pros
- Pilot arc handles rough
- painted and rusty surfaces with minimal slag
- Sets up in about a minute with the pre-fitted D-type air plug
- Lightweight and compact for the 50A class
- 2T and 4T modes reduce hand fatigue on longer cuts
Cons
- Only a one-year manufacturer warranty
- Some users question whether the stated maximum thickness is achievable
- No air filter or regulator beyond the inlet fitting
This is the pick for a garage with one household outlet and no plan to hire an electrician. The CUT-50 is a 50-amp IGBT inverter with pilot arc and a 60% duty cycle, rated for a recommended maximum cut of a quarter-inch at 35 amps on 110V and three-quarters-inch at 50 amps on 220V. A 220V-to-100V adapter is included so it runs on a normal receptacle out of the box.
It has overheat and overcurrent protection and is rated to minus 20 degrees, which matters more than it sounds if you keep a garage in a cold climate and start a project in January. The 2T and 4T modes are genuinely useful on a long cut because four-trigger mode removes the need to hold the trigger down for the entire pass, which tires your hand on a project that takes several minutes per cut.
The pilot arc starts on rough, painted and rusty surfaces with minimal slag, which is the difference between this machine and a cheaper contact-start unit when you are cutting a bracket that has been sitting in a yard for a decade. Slag means dross means grinding, and grinding is the part of the job you bought the plasma cutter to avoid.
At 13 pounds it is one of the easier machines to carry around, and the included cutting gun head, earth clamp and adapter cover everything needed to start. The one-inch-quarter industrial D-type air plug is pre-fitted, so the air connection is a single step.
There is no air filter or regulator beyond the inlet fitting, and you will want to add a proper filter-regulator with a gauge. Buying one is not optional in practice, because a machine that cannot tell you its air pressure will give you inconsistent cuts and consumables that burn quickly. The stated maximum thickness is also questioned by some owners, so plan around the quarter-inch figure.
What the CUT-50 handles on a household circuit
On 110V, plan around the rated 35 amps and the recommended quarter-inch maximum. That still covers a great deal of real work: shelf brackets, trailer repairs, cutting down plate to size before welding, and replacement panels for a project vehicle. Clean quarter-inch cuts on that machine are ordinary, not a special occasion.
If you add a 240V circuit later, the same machine jumps to 50 amps and roughly three-quarters-inch maximum, so you are not buying a paperweight while you wait for an electrician. Several owners describe exactly this path, starting on the adapter and upgrading when the volume of work justified a subpanel.
What to add before your first cut
An air filter-regulator with a pressure gauge is the first purchase. Without a visible gauge you are flying blind on the single parameter that most affects cut quality, and this machine gives you no on-screen air reading to fall back on.
Expect to buy consumables sooner than you expect. The rating reflects a larger share of complaints about real-world cutting thickness than the other machines here, and that usually shows up as a slower cut and more rework rather than a clean failure. Set your expectations on the lower spec sheet number, not the marketing one.
9. Bestarc BTC500DP 50A: Best for Air Pressure Feedback
Bestarc 50A Plasma Cutter Machine, Pilot Arc, IGBT 110V/220V Dual Voltage
1/2 inch clean cut at 110V
2/3 inch max cut at 220V
Air sensor with LED pressure indicator
Built-in regulator
Pros
- Pilot arc and post-flow settings extend consumable life
- Air sensor shows when pressure is off target
- Cuts half-inch steel cleanly on 220V
- Fully assembled and works out of the box
Cons
- Poor quality instructions
- Small plastic hardware such as air adjustment knobs is easily damaged
- Some machines arrived with missing parts or empty boxes
- Pilot arc can pulse instead of holding steady
The distinguishing feature on the Bestarc BTC500DP is its air sensor with a real-time red and green pressure indicator on the LED screen. Where other machines just tell you the output current, this one tells you whether the air supply is doing what the arc needs right now. If you have ever run a cut on low air and wondered why the edge kept glowing and dripping, that readout ends the guessing.
Cut ratings are 1/2 inch clean at 35 amps on 110V and 2/3 inch maximum at 50 amps on 220V, with recommended breakers of 40 amps at 110V and 30 amps at 220V. Those breaker figures are unusually specific and useful, and they tell you the machine is designed to run on ordinary household and workshop circuits rather than requiring a dedicated feeder.
Mode control covers 2T, 4T, PA and PT with post-flow adjustable from 3 to 15 seconds, and the AG60P torch uses a high-frequency non-contact pilot arc with adjustable pilot arc duration. Combined with the air sensor, this is a machine that gives you good visibility into what it is doing, which is the main reason to buy it over a similar-priced alternative.
The air filter is a pre-installed metal-cased unit with a quarter-inch NPT quick connector, and the regulator and air sensor are built in. Nothing to plumb on day one beyond your compressor hose, and the recommended 65 PSI on 220V is printed where you will see it.
Fit and finish is where the reviews get blunt. Loose plastic air adjustment knobs damage easily, instructions are poor, and a small number of buyers report machines arriving with missing parts or in empty boxes. Check the box contents before you power it up, and treat the plastic fittings as consumables rather than hardware.
Why air feedback changes how you cut
Every plasma cut needs a specific air pressure at the nozzle, and most arc problems are actually air problems. Low pressure gives a wandering arc, a wide kerf and heavy dross that has to be ground off. High pressure can starve the arc into a hard-to-start state. Neither failure tells you what went wrong, and both are expensive in rework.
A live pressure indicator turns that into a two-second check. When the light goes red, you know to look at the compressor, the filter, or a kink in the hose instead of adjusting amperage and making the cut worse. For a new owner building intuition, this is arguably worth more than a few extra amps.
What to inspect on arrival
Count the parts against the included list before you start. Reports of missing pieces and empty boxes come up across reviews for this model, and finding a missing screw in the first five minutes is a completely different experience from finding it an hour into a setup.
The pulsing pilot arc complaint is worth knowing about. On some units the arc does not hold steady on light material and needs a nudge to sustain. If your work is mostly thin gauge, test a cut on a scrap offcut from the same thickness first, before you commit to a finished part.
10. Reboot RBC6000D 60A: Best Lightweight Portable
Reboot 60A Plasma Cutter Dual Voltage 120V/240V, 1/2″ Clean Cut IGBT Inverter, Portable Metal Cutting Machine with Torch & Tips – RBC6000D 2025 Upgraded (Pre-Installed Air Regulator)
1/2 inch steel at 120V
5/8 inch at 240V
8.69 lb machine weight
PT31 consumables
Pros
- Cuts thick plate quickly once run on a 240V circuit
- Very light at 8.69 pounds and quick to set up
- Extra tips included help beginners who wear consumables out
- Intuitive controls with clear PSI guidance
Cons
- On 120V it trips breakers above roughly 18 amps
- Some machines failed after minimal use and warranty support is limited
- Touch-arc model requires the torch tip to touch the metal to start
At 8.69 pounds for the machine itself, the RBC6000D is the one to buy if your work happens away from the bench. Some of these units weigh 19 pounds and become a two-trip job the moment you want to cut a piece in the driveway or on a vehicle. This one you carry in one hand, which changes how often you reach for it.
On a 240V circuit it cuts five-eighth-inch steel at 60 amps and half-inch at 120V, and owners report it moving through thick plate quickly once it is on the right circuit. The air requirement of 90 PSI and 60 liters per minute or above is stated clearly, along with recommended breakers of 50 amps at 120V and 40 amps at 240V, which is the kind of honest electrical information that saves a trip to the hardware store.
Output range is 10 to 35 amps at 120V and 30 to 60 amps at 240V, with automatic voltage detection, so the machine adapts to whatever circuit you plug into. That auto-detection is the feature that makes it work as a portable tool rather than a shop-only one, since you are not manually switching anything when you move from the garage to the driveway.
Extra consumable tips are included, which genuinely helps a beginner who will wear through electrodes before learning to pace the arc. The controls are intuitive with clear PSI guidance on the body, and the air regulator is pre-installed, so setup is genuinely quick.
The deal breaker is 120V behavior. Owners report the breaker tripping above roughly 18 amps, which means the useful output on a household circuit is much lower than the 35 amp maximum implies. The touch-arc start also requires the tip to contact the metal, which is a step back from the non-touch pilot arc on the other machines here.
When the low weight earns its place
Vehicle repair and on-site work are the obvious answers. Cutting a rusted bracket on a truck bed, trimming a gate panel in a side yard, or sizing plate for a repair at a job site all benefit from a machine you can carry without thinking about it. The 8.69 pound figure is not a marketing rounding; it is a real difference when you are carrying it up a step ladder or across gravel.
It also works well as a second machine. A light unit on a separate circuit for occasional work, and a heavier one on the bench for thick plate, covers more of a home shop than one compromise machine. Because the air regulator is pre-installed, the extra machine is not much extra work to keep running.
What to know before you buy it
Treat 120V as a reduced-output mode, not the machine’s real rating. If your plan is half-inch plate, install the 240V circuit first, and check the 40 amp breaker requirement while you are at it. Buying this for 110V-only use is a mismatch of expectations more than anything else.
Early failures and limited warranty handling also come up in reviews, and the warranty is one year. On a machine this light and this simple that risk is more tolerable than it would be on a heavy shop unit, but it is a genuine consideration if you cut often. Keep a spare set of PT31 consumables on hand either way.

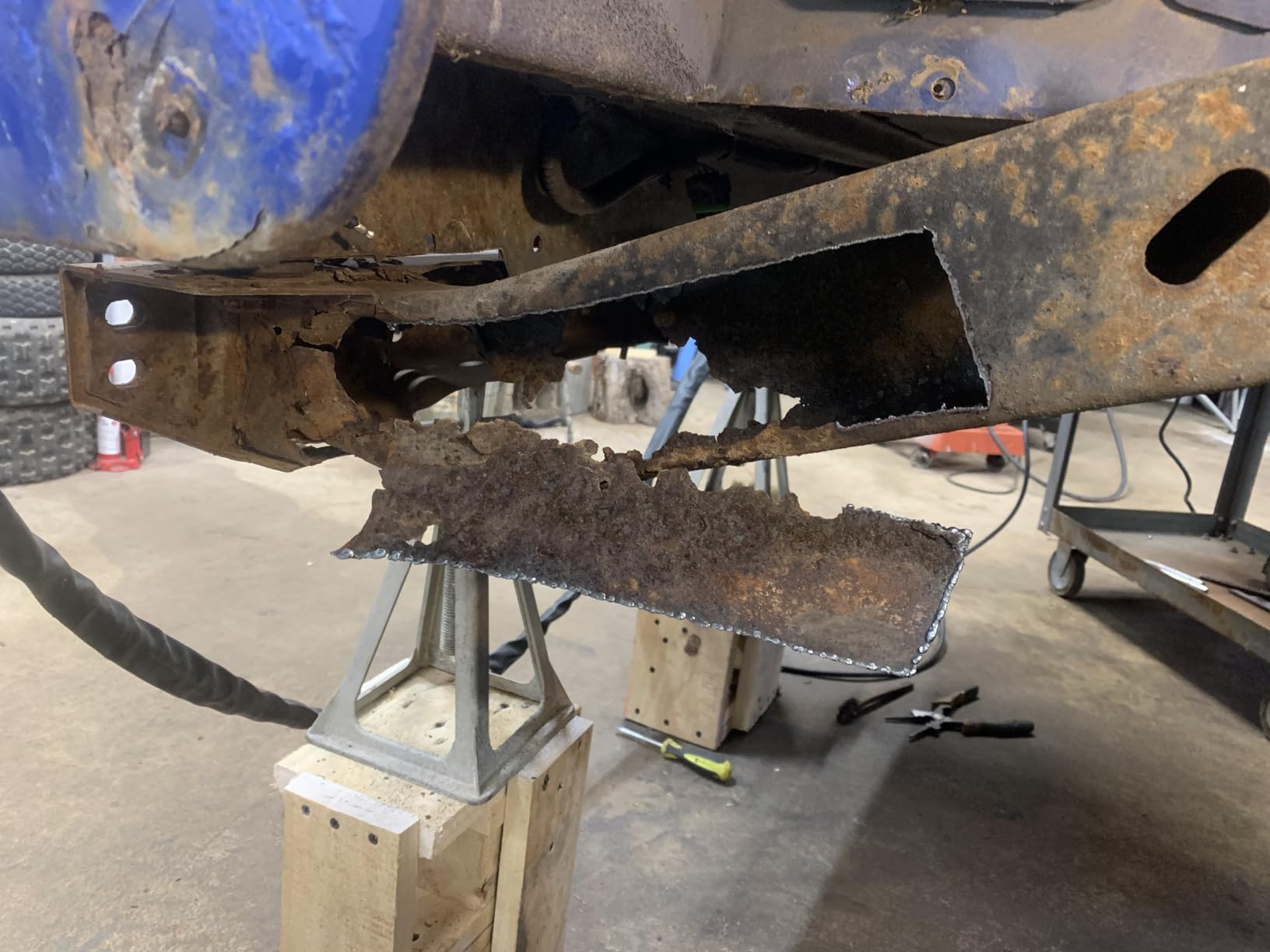

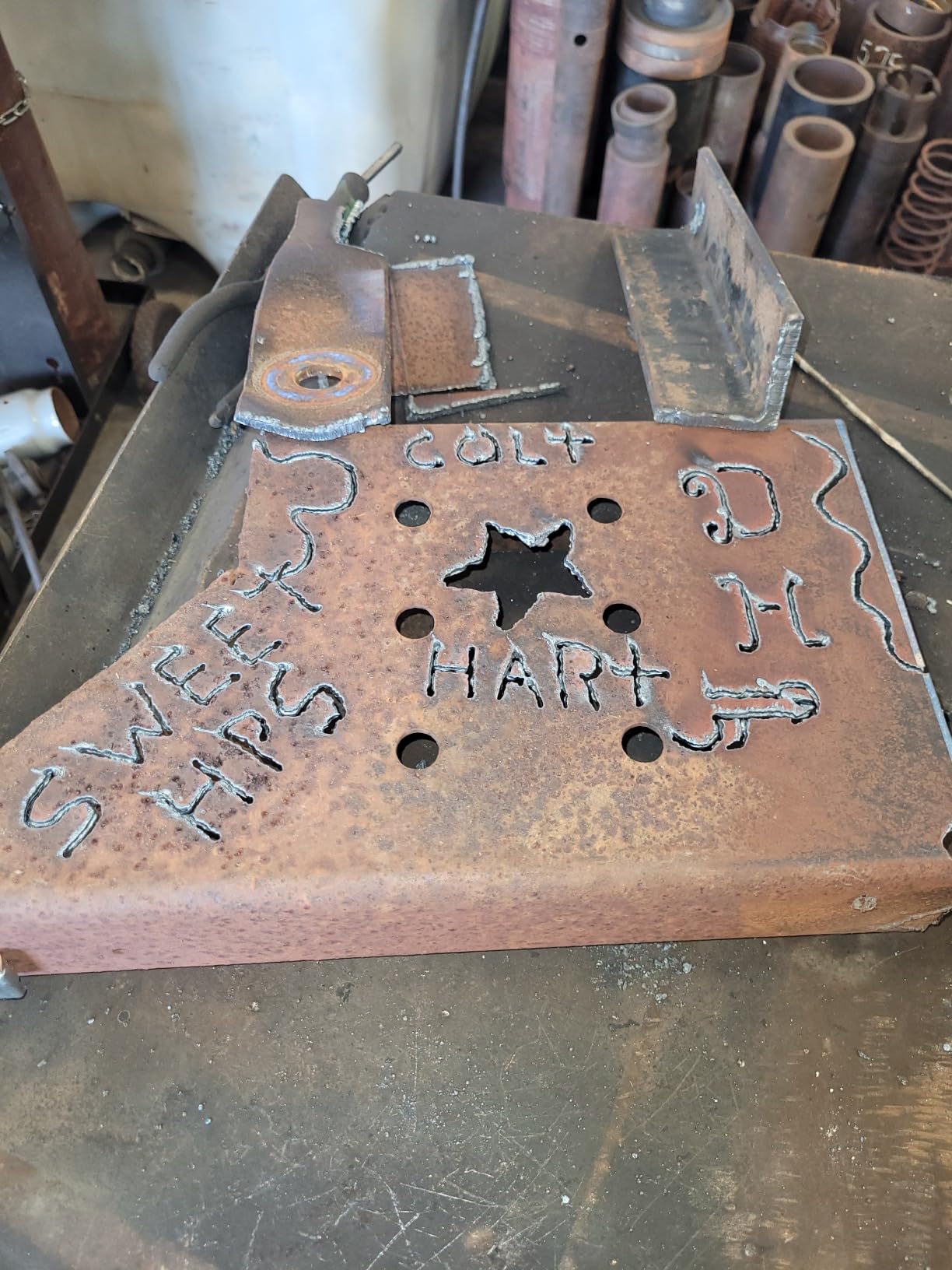

11. FLARING FC650D 65A: Best for Expanded Metal and Lightweight Power
FLARING Plasma Cutter,65 Amp Plasma Cutter Machine 120V 240V 4/5″ (20mm) Max Cutting 1/2″ (12.7mm) Clean Cut IGBT High Frequency Inverter Touch ARC Plasma Cutter with Consumable Set Update 5th FC650D
20mm max severance
12.7mm clean cut
8.4 lb machine weight
Automatic dual voltage
Pros
- Very light at 8.4 pounds with genuine 65A class capability
- Generous consumable set included in the box
- Cuts quarter-inch plate quickly and cleanly
- Automatic arc control on expanded metal reduces hand fatigue
Cons
- Lowest rating in this group at 4.1 stars
- Touch-arc design requires the tip to contact the metal
- One owner reported burnout after about ten minutes
- Not every package includes the upgraded torch shown in listings
The FC650D packs a 65-amp class power level into 8.4 pounds, with a four-fifths-inch maximum severance cut and a half-inch clean cut. On paper that is an unusually good power-to-weight ratio, and in a garage where you carry the machine more than you push it, that ratio is the feature that matters.
It handles a wide material range including aluminum, magnesium, brass, stainless, cast iron, steel, copper and titanium, and it has automatic dual-voltage switching from 120V to 240V without removing any covers. A fourteen-piece consumable set is included in the box, which is generous and means you are not ordering electrodes before the first cut.
The automatic arc control on expanded metal is the standout feature for a specific and persistent problem. Cutting mesh or expanded metal means starting and stopping the arc repeatedly, and on most machines that is tiring and produces uneven results. Automating the arc timing reduces hand fatigue and makes a long mesh job considerably more pleasant.
Electrical requirements are stated plainly: a 50 amp breaker at 120V and 30 amps at 240V, with automatic dual voltage. The PT31 consumable model is common, which is good news if you already own a PT31 torch from another machine in this list.
The rating is the lowest here, 4.1 stars, and the reasons are consistent: early failure reports, including one owner reporting burnout after roughly ten minutes, and packages that do not always include the upgraded torch shown in the listing. The touch-arc start also means the tip touches the plate to strike, which is the older method.
Why weight matters more than most buyers expect
A nine-pound machine is a tool you take outside. Ten pounds more is a tool that stays in the corner until the job comes to it. That difference compounds across a year, and it is the main reason a lighter machine earns its place even when a heavier one has a better warranty. You will reach for the light one more often, and using it more often is what makes a plasma cutter worth owning.
The flip side is that light machines are often lightly built, and this one is no exception. If you intend to run it hard on thick plate for hours at a time, a heavier machine with a higher duty cycle and a longer warranty is a better investment. If you intend to cut here and there on varied work, the weight advantage is real.
What to check when the box arrives
Verify the torch before you start. Not every package includes the upgraded torch the listing shows, and the difference matters for arc stability. Also confirm the consumable set is complete, because that is the one area where the value proposition depends on what actually made it into the box.
Have a plan for early-life problems. With the lowest rating in this group, giving the machine a thorough first session on scrap plate, checking the consumables, and confirming the arc holds steady for more than ten minutes is worth doing before you rely on it for a real project.
12. DNYKER CUT50 50A: Best for Light Gauge and Scrap Work
Plasma Cutter, CUT50 50Amp 110V/220V Dual Voltage Cutting Machine, Non-Touch Pilot Arc Plasma Cutter Machine Air Plasma Cutter with High-Frequency Start, Portable Plasma Cutter MOS Type
3/8 inch maximum cut at 110V
4/8 inch maximum at 220V
Non-touch pilot arc
13 lb portable
Pros
- Lowest entry cost in this roundup and adequate for light shop work
- True dual voltage 110V/220V with an auto-identifying display
- Weighs 13 pounds and is easy to carry
- Handles up to 3/8 inch steel for beginners
Cons
- Cut thickness falls well short of the stated capability for some users
- Included air regulator is weak and worth upgrading
- One owner reported breaker trips and failure within days
- PT31 torch is a starter torch that wears out quickly
The DNYKER CUT50 is the cheapest machine here and the right answer for a specific job: cutting up scrap, breaking down old shelving, trimming light structural steel, and learning whether a plasma cutter is something you want. It is a non-touch pilot arc machine with true dual voltage and a digital display that identifies input current and voltage on its own, which is more than most machines at twice the price do.
The stated ratings are a recommended maximum average cut of a third of an inch at 110V and two-fifths of an inch at 220V, with maximum cuts of three-eighths and a half-inch. Real-world results land below those figures for a share of owners, so plan your projects around the lower number. At 13 pounds it is easy to carry, and 60 to 70 PSI is the recommended air range.
Protection circuits cover overheat, overcurrent, overload and overvoltage, which is a reasonable amount of guarding for a machine at this level. Cut quality on thin and light structural material is described as adequate, and the non-touch pilot arc does start on rough, painted and rusted surfaces, which is more than a contact-start machine at this price would manage.
What you are economizing on shows up in three places, all of them mentioned in reviews. The air regulator that ships with it is weak and worth replacing early. The PT31 torch is a starter torch that wears out quickly, so budget for a better one. And the cut thickness often lands under the stated capability, which is the honest limitation of the tier.
One owner also reported a breaker trip followed by failure within days. That is an isolated report rather than a pattern, but it is the kind of risk you accept at this level and the reason the warranty terms matter more here than elsewhere.
What the DNYKER is genuinely good for
Scrap and cleanup work. When you are reducing an old steel frame to manageable pieces, cutting rusted shelving apart, or trimming down plate that does not need a perfect edge, this machine does the job at a cost that does not matter if it eventually fails. Nothing here is waste of a machine that cannot cut quarter-inch plate cleanly.
It is also a reasonable teaching tool. The auto-identifying display removes the guesswork from voltage and current, the pilot arc starts on dirty metal, and the low cost means a mistake on day one is not expensive. If you later want a larger machine, your settings knowledge transfers directly.
When to spend a little more instead
If you plan to cut half-inch plate, a machine that underperforms its rating is the wrong purchase at any price. Move up a tier, where the stated clean cut rating matches what owners actually report, and the difference in frustration over a year is large.
Also factor in the two upgrades you are certain to make. A decent air filter-regulator with a gauge and a quality PT31 torch will cost more than some of the price difference between this machine and the next one up. If you are buying the accessories anyway, buying the better machine usually costs less than it appears.
How to Choose a Plasma Cutter for Your Home Shop
How many amps you actually need
For a typical home shop, 40 amps handles quarter-inch steel cleanly and 50 to 55 amps is the sweet spot because it reaches a true half-inch clean cut. Sixty amps and above is only worth it if you regularly cut plate thicker than half an inch or run a CNC table. For reference, a 40A unit typically cuts three-eighth-inch cleanly with half-inch as its max severance, and quality drops off quickly past that.
Read the clean cut rating, not the max cut rating, because they are different numbers with very different meanings. Clean cut is where the kerf is flat and dross-free enough to weld or leave visible. Max cut is severance, and it usually comes with heavy slag and a grinding job afterward. Design your projects around the clean cut number and the second one becomes a pleasant surprise.
There is also a hard reality about 110V. A machine rated 50 amps typically delivers roughly 30 to 35 amps of real cutting output on a household circuit. That derate is why so many owners report breaker trips when they try to push a 50A machine past about 18 amps on 110V. The fix is not a bigger machine, it is a 240V circuit.
Why your air supply decides cut quality
Yes, a plasma cutter needs an air compressor unless you buy one with a built-in compressor. Most machines need roughly 4 to 5 CFM at 60 to 75 PSI of dry air, which means a compressor plus a moisture separator or dryer. Owners describe air setup as the number one source of confusion and the most common cause of early consumable failure.
A 20-gallon, 5 hp compressor works for intermittent shop cutting, provided it holds 60 PSI or better. The limitation is recovery: back-to-back long cuts will stall the arc until the tank refills, which burns consumables faster and produces a worse edge. A rule of thumb circulating on r/metalworking is to size the compressor to deliver 20% more pressure and 50% more volume than the machine minimum.
Moisture is the part people skip. Air straight off a tank carries water, and that water carries electricity into the torch, which burns the electrode tip and the nozzle from the inside out. A moisture separator and a dryer in the line is a modest purchase that extends consumable life more than any other single change. If you notice a spark inside the torch body when the arc starts, that is moisture, and it will eat a consumable set in a weekend.
What your electrical service can deliver
Plan your circuit before you buy the machine. Manual and spec pages for the machines here call for a 40 amp breaker at 110V or 50 amps at 120V depending on the model, 30 amps at 220V or 240V for the 50A machines, and 40 amps at 240V for the 60A class. A 60 amp machine on a 30 amp breaker will trip, and no amount of adjusting the amperage dial changes that.
For a dedicated 240V subpanel, an electrician is the right call, not a DIY project. Running a 50 or 60 amp branch circuit involves panel work, and the machines that need that much power are exactly the ones worth doing properly. Budget for it before you buy, because it often costs more than the difference between two machines.
If you cannot run a new circuit, buy for 110V and accept lower output. Several machines here, including the ARCCAPTAIN CUT50, the Bestarc and the GZ GUOZHI CUT-50, do a capable job on a household outlet for quarter-inch work. You will just be planning around the lower clean cut number until the circuit happens.
Pilot arc, touch arc and non-HF start compared
Pilot arc machines strike an arc without the torch touching the workpiece, so they start through rust, paint and dirt. Touch arc or contact start machines require the tip to touch the metal, which saves a little money and consumes consumables faster. On a garage full of old vehicle steel and painted material, non-touch pilot arc is worth the money every time.
Start method matters separately from that. High-frequency (HF) start machines send a burst of radio-frequency energy and are common on affordable inverters, but that burst can confuse nearby electronics. Blow-back and non-HF start machines avoid the interference entirely, which is why the YESWELDER CUT-65DS is our pick for a garage with a CNC table, a radio, or a wireless door opener.
Post-flow and pre-flow timing is the last piece. Post-flow keeps the torch hot after the arc stops so the nozzle does not crust over, and adjustable post-time is a real consumable-life feature rather than a spec-sheet line. Machines with a pilot arc duration control, like the SILATU and the Bestarc, let you trade arc strength against electrode wear depending on whether you are piercing heavy plate or cutting clean mild steel.
When a plasma cutter is the wrong tool
Material under an eighth of an inch is the main case against buying one. Plasma wants a minimum thickness to establish a kerf, and on very thin shim stock, screen material or light-gauge sheet it produces a hole bigger than the cut and consumes consumables doing it. A shear, a nibbler, or a quality pneumatic cut-off tool is faster and cleaner there.
Thin aluminum and thin stainless are also awkward. A plasma arc has to stay on the workpiece, and on thin material it tends to wander and sag through. If that is most of your work, a proper shear or a dedicated aluminum setup is the right investment. Thick aluminum and stainless cut beautifully, so the rule is thickness, not material.
Outdoors in wind is a third case. The arc is a column of ionized gas, and wind moves it. A garage or a sheltered space is where you get consistent results, and no machine in this roundup changes that physics. If your work is genuinely on-site, weigh a machine with a longer torch lead and a longer air line against one that prioritizes weight.
What consumables cost you over time
Electrodes and nozzles are the consumables, and they are a normal recurring cost on any plasma cutter, which is why buying a pack of electrodes and nozzles with the machine is a good idea rather than an upsell. Owners describe machines that chew through consumables when air pressure is low or when the pilot arc is running long, which is another argument for the air setup and the adjustable pilot arc features above.
Consumable cost is also the strongest argument against buying the cheapest machine. A machine that ships with a starter torch and no air regulator needs both replaced within the first few months, and at that point you have spent a meaningful share of a better machine’s cost on parts. Judge the entry price on what it costs to run for a year, not on the day you unbox it.
Brands with established consumable supply and local support are worth a premium for exactly this reason. PrimeWeld, Hypertherm and Amico are the names that come up repeatedly in forums when owners ask about parts and service, and our roundup of plasma cutters under a thousand dollars covers several of the middle-tier options where that trade-off gets interesting.
If you are weighing a dedicated home CNC table rather than handheld work, the priorities change completely. Stepper driver compatibility, steady current at low amperage, and a start method that does not radiate interference all matter more than peak cutting capacity. Our CNC plasma cutter guide covers that path, and our CNC-ready picks handle the interface side. For purely on-the-go work, portable plasma cutters is the comparison that matters instead.
Frequently Asked Questions
How many amps is a good plasma cutter?
For a typical home shop, 40 amps handles quarter-inch steel cleanly and 50 to 55 amps is the sweet spot because it reaches a true half-inch clean cut. Sixty amps and above is only worth it if you regularly cut plate thicker than half an inch or run a CNC table.
What is the best plasma cutter for home use?
The PRIMEWELD CUT60 is our best overall pick for a home shop, a 60-amp non-touch pilot arc machine with a 60% duty cycle, dual voltage and a three-year US warranty. If you want less capacity for less money, the ARCCAPTAIN CUT50 is the best value and the PrimeWeld CUT50D the best proven all-rounder.
Does a plasma cutter need an air compressor?
Yes, unless you buy a machine with a built-in air compressor. Most home-shop plasma cutters need roughly 4 to 5 CFM at 60 to 75 PSI of dry air, which means a compressor plus a moisture separator or dryer. Dry air is the part that matters most for consumable life.
Will a 20 gallon air compressor run a plasma cutter?
Yes, for a 40 to 60 amp cutter doing short cuts, as long as it holds 60 PSI or better. The limitation is recovery: back-to-back long cuts stall the arc until the tank refills, which burns consumables faster. Size the compressor to deliver 20% more pressure and 50% more volume than the machine minimum.
How thick of metal can a 40 amp plasma cutter cut?
A 40 amp unit typically cuts three-eighth-inch steel cleanly, with half-inch as its maximum severance rating. Quality degrades quickly past that, so treat the clean cut figure as the real limit. For regular half-inch work in a home shop, step up to a 50 or 55 amp machine.
Conclusion: Match the Machine to Your Power and Air
After putting twelve machines through the same garage routine, the pattern was clear. The machines that felt best were not the most powerful ones, they were the ones where the air was dry, the electrical service matched the rating, and the consumables were fresh. Get those three right and almost any of the 50 to 55 amp machines here will serve a home shop for years.
Our pick for the best plasma cutters for home shops is the PRIMEWELD CUT60, a 60-amp continuous pilot arc machine with a 60% duty cycle and a three-year warranty, and it is the winner of this roundup. If your budget is tighter, the ARCCAPTAIN CUT50 is the value choice and the PrimeWeld CUT50D is the proven all-rounder. If your garage holds sensitive electronics, the YESWELDER CUT-65DS and its non-HF start remove an entire category of problems.
Before you buy anything, do the unglamorous work first. Find out what your panel can deliver, decide whether a 240V circuit is realistic, and make sure you have a compressor with a moisture separator feeding it. The right machine on wrong power and wet air is an expensive paperweight, and the right machine on good power and dry air is the best tool in the garage. For shop-floor alternatives outside the home-shop bracket, start with our main plasma cutter roundup.
