Through-hole solder joints do not come apart with an iron alone. You need heat plus suction, and that combination lives in a desoldering station. After working through ten of them on the bench, these are the best desoldering stations for pcb repair across every budget, from a palm-sized hot air unit to a pro-grade vacuum gun.
This roundup covers ten stations we compared directly, including two that use a true vacuum pump to pull molten solder out of a through-hole joint. The rest are hot air rework and soldering combos that handle surface-mount work and can be paired with a manual solder puller for through-hole joints. Every station here uses a PID or microprocessor-controlled element with a digital readout and documented wattage, so you can match it to the boards you actually work on.
The big split in this category is between a hot air rework station and a true vacuum desoldering gun. A vacuum gun reflows the joint and pulls the molten solder into a capture chamber in one trigger pull, which is what makes connector and header removal fast. A hot air station melts the solder but relies on tweezers to lift the part while the solder stays put. Knowing which one you need saves you from buying the wrong tool entirely, so that comparison has its own section below.
If you are still building out a bench, our picks for PCB holders and circuit board vises and desktop reflow ovens for PCB assembly pair well with any of the stations reviewed here.
Top 3 Picks for PCB Repair for October 2026
Hakko FR301 Vacuum Gun
- Trigger vacuum extraction
- 350C-500C dial range
- Hot-swappable nozzles
Quick Overview: Best Desoldering Stations in October 2026
| Product | Specifications | Action |
|---|---|---|
| Hakko FR301 Portable Desoldering Tool |
|
Check Latest Price |
| YIHUA 862BD+ 2 in 1 Soldering and Hot Air Station |
|
Check Latest Price |
| Anesty ZD-915 Vacuum Desoldering Station |
|
Check Latest Price |
 YIHUA 853D 3 in 1 With DC Power Supply |
|
Check Latest Price |
 YIHUA 8786D I 2 in 1 Hot Air and Iron |
|
Check Latest Price |
 WEP 882D 2 in 1 SMD Hot Air Station |
|
Check Latest Price |
 Aoyue 968A+ 4 in 1 Repair Station |
|
Check Latest Price |
 WEP 8858-V Compact Hot Air Kit |
|
Check Latest Price |
 LRT 858D 700W Hot Air Rework Station |
|
Check Latest Price |
 Beaiguna 2 in 1 Hot Air and Soldering Station |
|
Check Latest Price |
1. Hakko FR301 Portable Desoldering Tool: The Best All-Round Choice
Hakko FR301-03/P Portable Desoldering Tool with Precise Temperature Control °F /°C
350C-500C range
140W ceramic element
Trigger vacuum
Quick-change nozzles
Pros
- Fast heat-up and strong consistent suction on plated through-holes
- Four temperature settings let you tune heat to the joint
- Closed-loop sensor holds temperature through repeated cycles
- Tips swap while still hot
- Chamber is easy to empty and clean
Cons
- Supplied case is cheap blow-molded plastic
- Stand is flimsy and the stiff cord shifts the tool
- Extra nozzles cost extra and only a 1.0mm tip is included
- 90-day warranty with one year on the heating element
It is the highest-rated tool in this roundup and the only vacuum gun rated above 4.5. The nozzle sits over the joint, the solder goes molten in a couple of seconds, and one trigger pull empties the hole. On a 40-pin header we swapped an entire row without damaging a single pad.
The four dial settings from 350C to 500C matter more than the wattage figure suggests. Running cooler on delicate traces and hotter on heavy transformer leads is what keeps the board intact, and the closed-loop sensor holds the setting steady while the pump is drawing.
The quick-release nozzle system lets you change tips while the tool is hot, so you are not waiting on a cool-down between a fine BGA job and a heavy header. Owners describe removals in roughly three seconds where wick and a manual pump took 30 to 60 seconds.
The recovery chamber latches open for emptying and comes with filter pads, a filter pipe and cleaning tools. That is the consumable story that matters on this tool, and it is the part most budget guns get wrong.
What you gain over wick and a manual puller
Nothing gets pulled on the component, so pad and trace damage stops being the limiting factor on a repair. The joint is emptied by suction rather than by leverage, which is why this tool scales to double-sided boards and fine-pitch work.
It also handles thick-lead parts that wick cannot reach through. For salvaging connectors off donor boards, it turns a slow job into a quick one.
Where it falls short
The accessories are the weak point. Reviewers criticise the cheap blow-moulded case, the unstable iron holder and the stiff cord that shoves the tool around on the bench.
Only a 1.0mm tip is included and spare nozzles are pricey, so budget for a small tip set up front. The warranty is also short at 90 days, with the heating element covered for a year.
2. YIHUA 862BD+ 2 in 1 Soldering and Hot Air Station: Best for Mixed Work
YIHUA 862BD+ SMD ESD Safe 2 in 1 Soldering Iron Hot Air Rework Station °F /°C with Multiple Functions
750W total
75W iron,392F-896F
PID 20ms cycle
Three LED displays
Pros
- Heats to soldering temperature in about 30 seconds
- Stable control across iron and hot air gun
- Deep accessory bundle including pump and tweezers
- Hot air and iron detach for serviceable replacement
- Responsive manufacturer support in long-term owner accounts
Cons
- Hot air gun connector pins are small and bend easily
- Some units read a few degrees off and need calibration
- Not factory-calibrated so an initial tinning cycle is required
- Non-modular AC power cord
If your work alternates between hand soldering and surface-mount rework, this two-channel unit covers both from one base. The 75W iron runs 392F to 896F and the hot air gun sits alongside it, with three digital displays showing iron temperature, air temperature and simulated air volume.
The PID loop samples every 20 milliseconds, and in practice that shows up as a tip that does not sag while you work a row of joints. Long-term owners report completing thousands of repairs on the same unit.
What stands out is the box contents: four hot air nozzles, five iron tips, a solder roll, a solder sucker, ESD-safe tweezers, an iron holder with brass wool, a sponge and an IC extractor. That bundle covers most of what a new bench needs before you buy anything else.
The sleep mode is adjustable from 0 to 99 minutes, which matters more than it sounds. A parked tip left at temperature is the fastest way to burn out an element.
Where this station fits on your bench
It is a generalist. Through-hole removal still needs a suction tool, but the included solder sucker covers occasional single joints, and the hot air gun handles SMD removal and connector work cleanly.
For anyone moving from a basic iron to a real bench station, the accessory bundle alone shortens the setup time considerably.
What to watch out for
The hot air gun connector uses small pins that bend if you mate it carelessly. Check alignment before pushing it home.
Temperature calibration is a real step, not an automatic feature. Plan a preheat and tinning cycle before your first job, and expect a reading a few degrees off out of the box.
3. Anesty ZD-915 Vacuum Desoldering Station: Best Vacuum Value
Anesty ZD-915 Pro Digital Vacuum Desoldering Station, Solder Removal Tool | Built-in Vacuum Pump, Desoldering Gun for Electronics Repair
450C max tip temperature
PTC in-tip sensor
Built-in vacuum pump
Sight tube filter check
Pros
- Strong suction pulls solder out on the first trigger
- Handles DIP ICs and thick-lead parts
- Heavy chassis stays put on the bench
- Sight tube shows when the filter needs emptying
- Non-volatile memory keeps C/F setting across power cycles
Cons
- Unheated rear tube section clogs if not cleaned every few jobs
- Manual is thin and the cleaning procedure is poorly explained
- Catch-tube release is stiff and one owner reported a break
- Warranty support was unresponsive in at least one account
This is the affordable route into a genuine vacuum desoldering station rather than a hot air station with a hand pump bolted on. The PTC element carries a sensor in the tip itself, so the 450C ceiling is measured at the nozzle rather than at the base.
The chassis is heavy and stays put, which is more than can be said for most units at this level. One-hand operation with a stable base makes a long header removal far less tiring.
It was designed around lead-free work on DIP components, and that is where it performs. DIP ICs and thick-lead parts that defeat wick come out of the board in a single trigger pull when the tube is clean.
Three diameter-specific cleaning rods are included, and you will use them constantly. The glass sight tube tells you when the recovery chamber needs emptying instead of guessing.
Best fit for a hobby bench doing occasional connector work
If you swap headers or connectors a few times a month, this is enough vacuum capability without stepping up to a professional gun. The 450C ceiling covers lead-free joints without cooking the surrounding laminate.
Tips arrive pre-soldered, which saves a first-job tinning step but means you should let the unit warm up for several minutes before you trust its output.
What to watch out for
The critical weakness is the unheated rear section of the suction tube. Solidified solder collects there and plugs it within a few desolders if you do not run the rods through it.
The documentation is thin on exactly that cleaning routine, so plan to work it out yourself. A few owners also reported weak suction from the start and slow warranty response, which is why the rating sits below the hot air units here.
4. YIHUA 853D 2A USB 3 in 1 Station: Best for On-Bench Testing
YIHUA 853D 2A USB SMD Hot Air Rework Soldering Iron Station, DC Power Supply 0-15V 0-2A with 5V USB Charging Port and 35 Volt DC Voltage Test Meter
DC supply 0-15V at 2A
Voltmeter to 35V
120 L/min air
5V USB test port
Pros
- DC supply output measures accurately against a reference meter
- All three modules run at once or independently
- Hot air volume reaches 120 L/min
- Ten iron tips and four nozzles included
- Support replaced irons and sent missing tips
Cons
- Soldering iron heats more slowly than dedicated stations
- Nozzle tabs and square nuts do not clamp well
- Included power cords and handpiece leads are short
- Temperature calibration needs iterative adjustment
Most two-in-one stations stop at iron plus hot air. This one adds a bench DC supply with a voltmeter mode and a USB test port, which turns it into a small repair bench in a single box.
The supply outputs 0-15V at up to 2A, and in test mode it reads up to 35V DC. That means you can power and check a board without dragging a separate supply onto the bench.
Hot air volume adjusts to 120 L/min, the highest maximum airflow figure listed in this roundup, and the PID stabilisation holds temperature across repeated joints. Owners report strong results pulling SMD chips off dense boards.
Ten iron tips and four hot air nozzles cover a wide range, and all three modules can run simultaneously or one at a time.
When the extra supply earns its place
For anyone doing USB-C port replacement, battery work or first-power-up testing, having the supply and the rework station in one footprint saves bench space and cable clutter.
Measured against a reference meter, the output is accurate enough to trust for supply work. That is not something you can say about most bundled supplies in budget stations.
What to watch out for
The iron heats more slowly than dedicated soldering stations, so allow extra warm-up before a timed job. The hot air nozzle clamp is also frustrating, with tabs and square nuts that do not seat cleanly.
Cords and handpiece leads are short, and calibration on some units needs several adjustment passes. The 4.76 kg body also takes a real amount of bench space.
5. YIHUA 8786D I 2 in 1 Hot Air and Soldering Station: Best Budget Starter
YIHUA 8786D I 2 in 1 Hot Air Rework and Soldering Iron Station with 10 Solder Iron Tips, 4 Hot Air Nozzles, °F /°C, Cool/Hot Air Conversion and Sleep Function
740W power
1.8F temperature stability
200C-896F range
Fail-safe air cutoff
Pros
- Tight PID control with 1.8F stability across the range
- Dual displays and dual power switches allow independent control
- Fail-safe cuts power to the element if airflow stops
- Ten tips and four nozzles plus pump and extractor included
- ESD-safe anti-static design
Cons
- Compact footprint leaves little room for accessories
- Bundled tips are average quality and the first upgrade
- Single-channel design limits concurrent operation
This is the entry point most first-time buyers end up with, and it does more than its specification suggests. The 1.8F temperature stability figure is the tightest listed regulation in the roundup, and the PID program corrects against real tip temperature rather than a timed guess.
Two power switches and two displays mean you can leave the hot air side off while you hand solder, instead of cycling one shared control.
The included kit covers a lot: ten soldering tips, four hot air nozzles, an IC extractor, a desoldering pump and a roll of lead-free solder. The fail-safe is the detail we liked most. If airflow stops abnormally, the unit alarms and cuts power to the heating element.
The 200C to 896F range on both handpieces gives plenty of room for lead-free work, and the cool/hot air conversion plus sleep function round out the controls.
Where it beats pricier budget units
Temperature stability is where it separates itself. On a small SMD removal you can hold a narrow nozzle over a delicate pad without cooking the neighbouring components.
The ESD-safe design matters on boards with sensitive parts, and the fail-safe protects both the board and the element during a blocked-nozzle mistake.
What to watch out for
The body is compact, which means little bench presence and limited space for accessories beside it. Bundled tips are average quality and are usually the first thing replaced.
It is single-channel, so both functions share one body and one control panel. If you need iron and hot air at the same time on a live board, step up to a two-channel unit.
6. WEP 882D 2 in 1 SMD Hot Air Station: Best Complete Kit
WEP 882D Soldering Iron Station 2-IN-1 SMD Hot Air Rework Station with 2 Spools of Solder Wire, 5 Soldering Tips, 3 Hot Air Nozzles, Brass Wool Tip Cleaner, Tweezers, Desoldering pump
750W power
392F-896F iron,212F-896F air
1.1 kg body
Calibration function
Pros
- Generous bundle with two solder spools and five tips
- PID control on both the iron and the hot air gun
- Separate LED displays and power switches per function
- Calibration plus sleep standby and auto shutdown modes
- Compact 1.1 kg body suits a small bench
Cons
- Very small footprint limits handpiece movement
- Bundled accessories are functional but basic in quality
- Single-channel body shared by both functions
On raw included parts, this kit is hard to match. Two spools of solder wire, five soldering tips, three hot air nozzles, brass wool, tweezers and a desoldering pump arrive in the box, which covers a first workbench without a second order.
The PID program runs on both handpieces. The iron covers 392F to 896F and the hot air side runs 212F to 896F with variable air volume, each with its own display and switch.
The calibration function is unusual at this level. Combined with sleep mode, standby mode and automatic shutdown, it protects tips and extends element life across months of intermittent use.
It is a compact 1.1 kg body that measures 3.54 inches deep, which matters if your bench space is limited.
Good for a first serious bench
If you are replacing a basic iron and want surface-mount capability in the same purchase, the parts list here saves a shopping trip. Solder, tips, nozzles and a pump are the four things beginners forget to buy.
Owners treat it as one of the most complete budget kits, and the PID regulation on both handpieces holds up for routine SMD and through-hole work.
What to watch out for
The footprint is very small, and handpiece movement gets cramped once a sponge, iron holder and parts bins share the same bench.
The accessories are basic rather than good. Treat the tips and nozzles as consumables you will replace early, and the pump as a starting point for occasional joints.

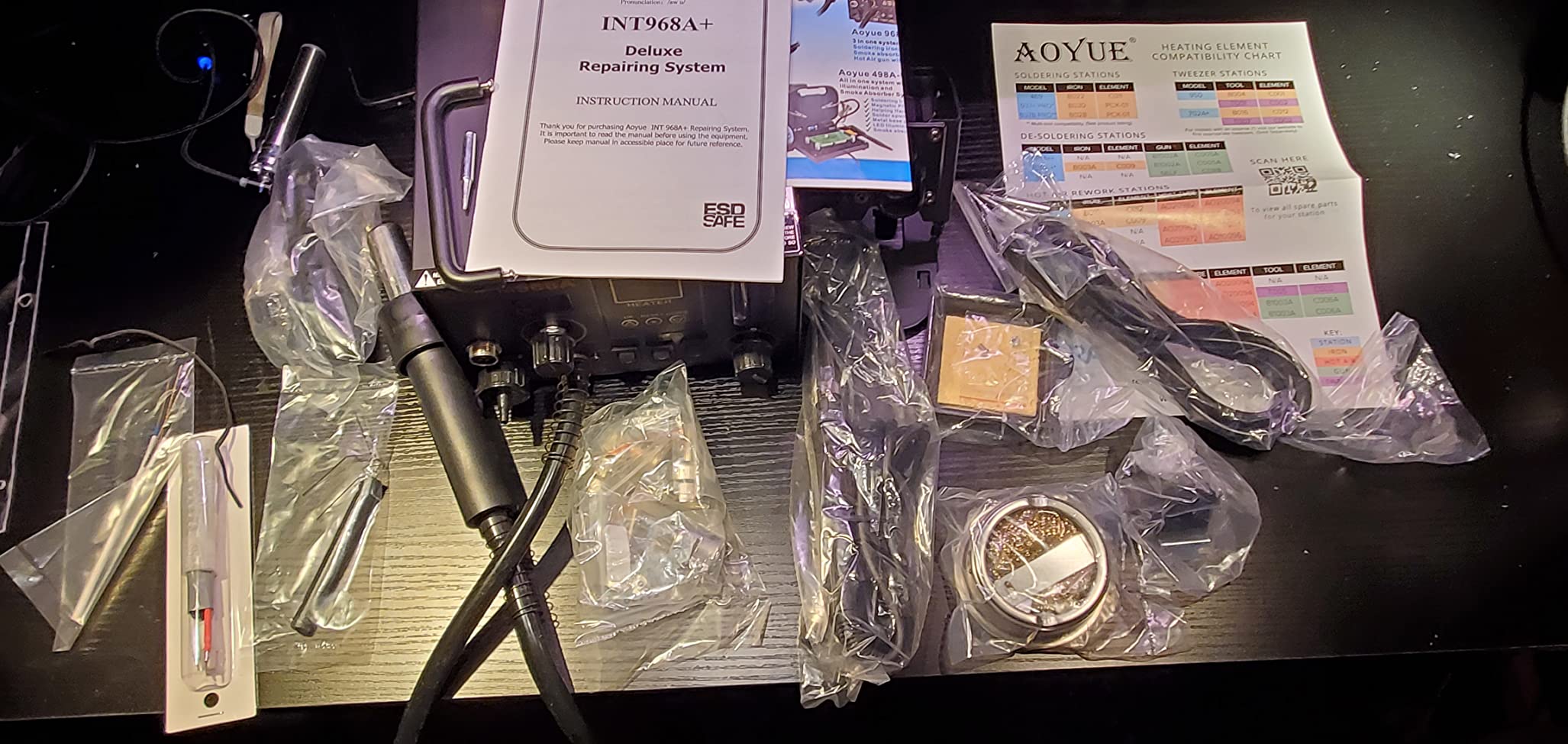

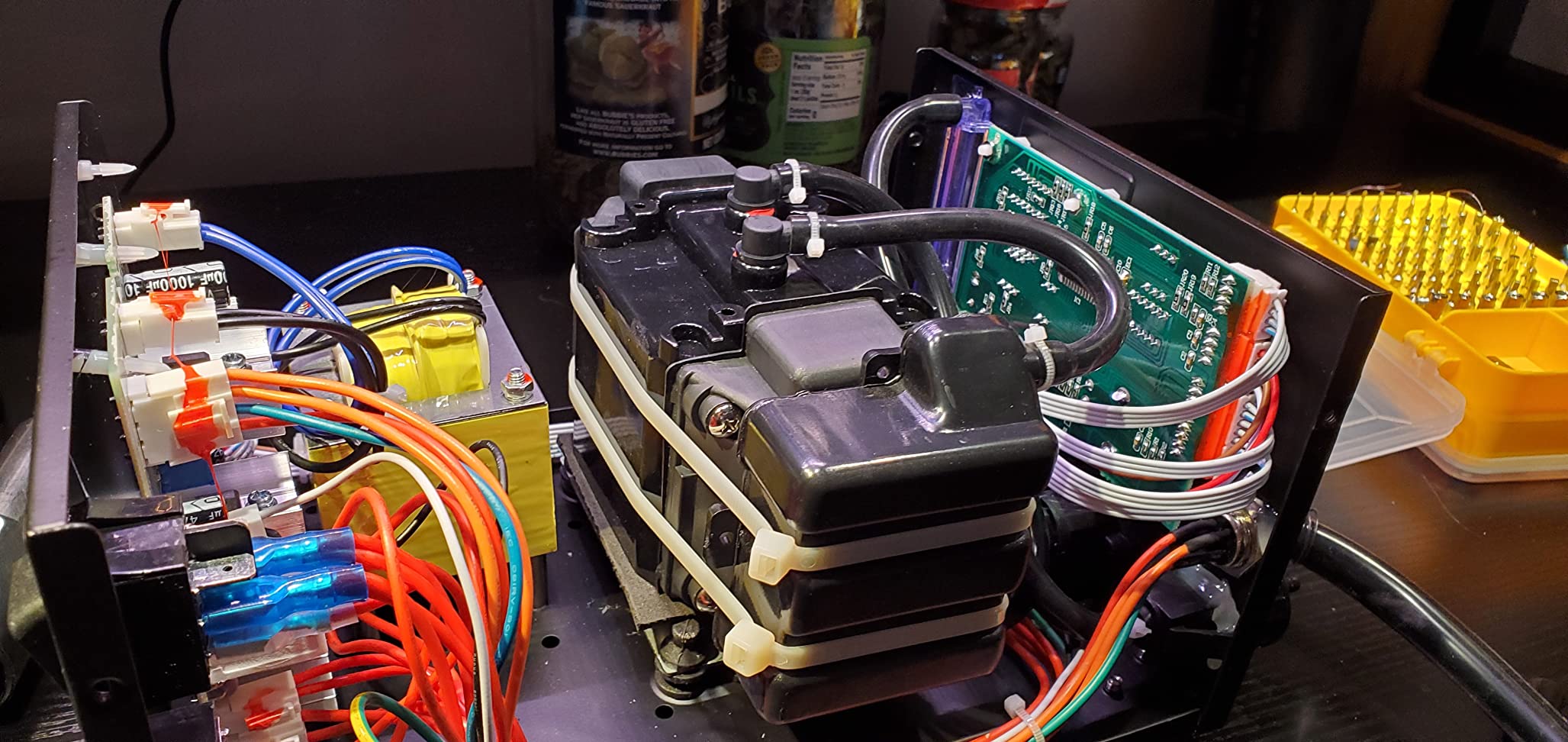

7. Aoyue 968A+ 4 in 1 Repair Station: Best for Fume Control
New Aoyue 968A+ SMD Digital Hot Air Rework Station… (110)
4-in-1 design
70W iron,11 lb chassis
Smoke absorber
Pros
- Four bench functions in one unit
- Integrated smoke absorber helps during long desoldering sessions
- Substantial 11 lb base stays stable during rework
- Digital temperature control for both functions
Cons
- Heaviest unit here at 11 lb and takes significant bench space
- Accessories are not clearly listed with the base unit
- Lower rating and review volume than the competing stations
The distinguishing feature is the built-in smoke absorber, which pairs with the hot air gun, the 70W iron and the vacuum pickup tool in one chassis. Desoldering generates a lot of flux fume, and having extraction in the unit rather than an arm off the bench is a genuine comfort gain.
The 11 lb base is heavy on purpose. On rework work where you lean on the nozzle, a base that slides is worse than one that takes up room.
Digital temperature control applies to both the hot air and soldering functions, so you are not setting a hot air temperature by eye.
The heavy chassis and single-chassis design mean fewer loose parts to keep track of while you are pulling parts off a board.
Best when fume control is the deciding factor
For long sessions removing surface-mount parts, the integrated absorber removes the need for a separate bench extraction arm. That is worth more bench space than the unit itself costs you.
The vacuum pickup tool handles small parts and loose components, which cuts down on lost screws and lids during a teardown.
What to watch out for
This is the heaviest unit in the roundup at 11 lb, so plan the bench layout first. It also carries a lower rating and far fewer reviews than the multi-channel YIHUA stations.
Only the base unit is clearly listed as included. Confirm what comes with the nozzles, tips and cables before you rely on the kit contents.
8. WEP 8858-V Compact Hot Air Kit: Best for Tiny Benches
WEP 8858-V Hot Air Rework Station Kit with Compact Size, Integrated Nozzle Holder, 3 Nozzles, 2 Tweezers, Adjustable Temperature& Air Volume, PID Program, °C/°F Conversion and More
Palm-sized 2.4 inch body
212F-896F range
PID control
Knob air volume
Pros
- Built-in gun holder and nozzle holder save bench space
- Knob-set air volume with no secondary menu
- PID holds setpoint on delicate parts
- Digital calibration plus C/F conversion and fail-safe
- Three extra nozzles and both bent and straight tweezers included
Cons
- Listed 22W wattage limits heavy continuous duty
- Hot air only with no soldering iron capability
- Small screen keeps it simple rather than feature-rich
This is the smallest unit here, at 2.4 inches tall and 4.6 inches wide, and the design decisions all follow from that. The hot air gun holder and nozzle holder are built into the body, so nothing has to sit on the bench beside it.
The PID program watches the setpoint continuously, and air volume adjusts on a panel knob without entering a menu. For a small station, that simplicity is the right call.
Range runs 212F to 896F with digital calibration and a hot air fail-safe, and it heats quickly with a capable element for its size.
Three additional nozzles plus bent and straight tweezers are included, so you have size variety from the start.
When a small footprint is the deciding factor
If your work area is a shelf, a shared bench or a dorm-style desk, this is the only unit in the roundup that stores completely on its own footprint. Nothing dangles, nothing occupies the space beside it.
It suits light SMD rework, connector replacements and small board work where continuous heavy duty is not part of the day.
What to watch out for
The listed 22W wattage is the lowest here, so heavy continuous work is out. The listed temperature stability figure of 684F is wide, which points to looser regulation than the PID-controlled larger units.
It is hot air only. You still need a separate soldering iron for hand-soldering work, so it complements a station rather than replacing one.
9. LRT 858D 700W Hot Air Rework Station: Best Raw Heat
LRT 858D 700W Digital Hot Air Rework Station for PCB IC SMD Repair
700W element
100C-450C range
Brushless fan
3 lb station
Pros
- 700W element heats fast and recovers between jobs
- Brushless fan is quieter and lasts longer than a brushed motor
- Digital LED readout with separate temperature and airflow adjustment
- Lightweight 3 lb body and ergonomic handle
- Lead-free compatible element supports continuous work
Cons
- Hot air only
- so a separate soldering iron is required
- 100C-450C range is narrower than the 212F-896F class
- Listed stability figure suggests looser regulation than PID rivals
- Fewer bundled accessories documented
Raw power is the argument here. The 700W element heats fast and recovers temperature quickly between jobs, which is the difference between a smooth rework session and a long wait between boards.
The brushless fan is a genuine upgrade over the brushed motors common at this level. It runs quieter, which matters when you are working quietly for hours, and it outlasts its brushed equivalent.
Temperature and airflow adjust independently from a digital LED readout, and the ergonomic handle stays comfortable over long repair sessions at only 3 lb.
The element is lead-free compatible for continuous operation, which covers USB-C port replacement, phone and laptop work, IC removal and routine BGA rework.
Where raw heat matters most
Thermal mass on a larger board is where wattage pays off. If you work on multilayer boards with ground planes that soak heat, the recovery speed here is the feature that saves you time.
It is described as adequate for routine PCB, IC removal and BGA work, which covers most repair-shop and advanced hobby tasks.
What to watch out for
It is hot air only. Budget for a separate soldering iron if you hand solder at all.
The 100C to 450C range is narrower than the 212F to 896F class of the competing stations, and the listed stability figure is wide, which suggests regulation is looser than PID-controlled rivals.
10. Beaiguna 2 in 1 Hot Air and Soldering Station: Best First Build
Beaiguna 2 in 1 Hot Air Rework Soldering Iron Station Kit, Precision Circuit Board Soldering Gun Kit, Rapid Heat up Solder Station, Upgrade Dual System Independent Control, Auto Sleep & Calibration
700W pure copper transformer
392F-896F iron
212F-896F hot air
Auto sleep and calibration
Pros
- Independent dual switches for iron and hot air
- 700W power with a pure copper transformer for fast heat-up
- Auto sleep and auto calibration with C/F conversion included
- Kit covers tips nozzles solder wire pump sponge and tweezers
- Suitable for phone
- computer and appliance repair
Cons
- Display shows hot air temperature only and never the iron temperature
- Tips may not seat firmly in the chuck
- Calibration needs a screwdriver in a CAL hole and is easy to get wrong
- Lowest average rating of the ten stations reviewed here
This is the cheapest way into a two-in-one bench station with independent control of both handpieces. Dual switches mean the iron and the hot air gun can be run separately rather than sharing one master control.
The 700W rating comes from a pure copper transformer winding, and heat-up is fast for the class. The iron is adjustable 392F to 896F on a simple knob scale.
The kit includes five tips, three nozzles, a roll of joining wire, a desoldering pump, curved tweezers and a sponge, which is enough to start on phone, computer and appliance repair.
Auto sleep and auto calibration are the features that matter most here. Sleep protects the tip between jobs, and calibration corrects the readout if it drifts.
A sensible first station on a tight budget
For a first build or a secondary bench, it covers the core needs: hand soldering, hot air rework and basic through-hole work with the included pump. The auto-sleep function is a good default for intermittent users.
If you already own an iron, the hot air side can carry the rework load while the iron stays where it is.
What to watch out for
The display shows hot air gun temperature only. The iron temperature is not shown, so you cannot confirm it from the panel, which is genuinely misleading on delicate work.
Calibration means turning a screwdriver in a CAL hole, and tips sometimes need a light tap around the chuck flange to seat. Its 4.2 rating is the lowest of the ten stations reviewed, so expect more variability early in ownership.
Hot Air Rework Station vs. Desoldering Gun: Which Do You Need?
The single most common purchase mistake in this category is treating the two as the same tool. They solve different problems, and the failure mode of picking wrong shows up as damaged boards rather than a wasted purchase.
A hot air rework station heats a broad cone of air at a set temperature. It is the right tool for removing surface-mount chips, reballing, shrinking heat-shrink and rework on dense boards. It has no suction, so you lift the part with tweezers while the solder is molten, and you choose air volume and nozzle size to control how much of the board gets hot.
A vacuum desoldering gun heats a hollow nozzle at the joint and pulls the solder into a recovery chamber. It is the right tool for through-hole work: connectors, headers, DIP ICs, and salvaging parts off donor boards. The joint empties by suction instead of force on the pad, which is why a desoldering gun is the standard choice for through-hole work.
Here is the decision in short form.
Through-hole connector or header removal: vacuum desoldering gun. Wick and a solder puller work for one or two joints, but a long header row with a manual pump is slow and puts force on the pad.
Removing SMD chips, QFPs or BGAs: hot air rework station. The desoldering gun has no broad-area heating and will not reflow a multi-pin package.
Mixed bench, one board on the desk: two-in-one. Five stations in this roundup combine an iron and a hot air gun in one body, and the Aoyue adds a vacuum pickup tool and a smoke absorber.
Replacing whole connectors on double-sided boards: vacuum desoldering gun, every time. The unheated rear section of the suction tube on a budget model needs cleaning between jobs or suction drops, so budget for rods and a routine.
How to Desolder Without Lifting Pads
Pad lifting is a heat and mechanical stress problem. The pad separates from the laminate when you pull on a joint that is still solid, or when you hold heat on the area far longer than needed. Six steps remove most of the risk.
1. Heat the joint, not the board. Keep the nozzle over the through-hole itself. Large surrounding areas heat the laminate and the neighbouring pads, which is what weakens the bond.
2. Add fresh flux. Fresh, active flux lowers the melting point and lets the solder clear before the board soaks up heat. Old, burnt flux does very little.
3. Pick the temperature for the joint. Lead-free solder needs the upper end of the range, around 350C to 500C on a gun with a dial. Leaded solder melts much lower. Turn the dial down for a delicate trace run near the joint.
4. Wait for the solder to actually clear. With a vacuum gun, trigger the moment the joint empties. Trigger early and you pull hot air and flux; trigger late and you have held heat on the board for no reason.
5. Never lever. If the part does not come free with suction or tweezers at the moment it releases, add heat and try again. Twisting a cold joint is the classic way to tear a ring.
6. Clean the tool between joints. On budget vacuum stations, run the supplied rods through the unheated rear tube section every few joints. A partly blocked tube means a weaker pull and more heat time on the board.
How to Choose a Desoldering Station for Your Work
Start with the board, not the spec sheet. If you are working on through-hole connectors and headers, a built-in vacuum pump is the feature that changes your day. If you are doing surface-mount rework, hot air airflow and nozzle range matter more.
Four factors decide most purchases.
Temperature control and regulation. Look for a PID or microprocessor loop that reads actual tip temperature, not a timed duty cycle. The 1.8F stability figure on the YIHUA 8786D I and the closed-loop sensor in the Hakko FR301 are the two strongest examples here. Wide listed stability figures on the compact units point to looser control.
Wattage and recovery. Wattage is about heat-up speed and how quickly the unit recovers between joints. The 700W to 750W class stations here recover fast on multilayer boards; a 22W compact unit is for light work only. If you routinely preheat large boards, wattage is not a minor spec.
Pump type and chamber capacity. A built-in vacuum pump with a sight tube or latch chamber tells you when to empty it. That maintenance signal is what separates a station you will keep using from one that quietly loses suction. Filters, catch tubes and cleaning rods should be easy to source.
Nozzle and tip range. Check what is included and what costs extra. The Hakko FR301 ships with a single 1.0mm tip, so budget for more sizes. Stations that include four or more nozzles give you room to work small parts without buying up front.
Two more practical points. First, a smoke absorber or fume extraction matters more than most buyers expect once you are desoldering for an hour. Second, an ESD-safe work area and sleep or auto-shutdown modes protect both your boards and your elements over the long run.
Finally, weigh the bench footprint and cord length. A heavy base is an advantage during rework and a disadvantage everywhere else, and short handpiece leads are a daily irritation that costs very little to avoid.
Frequently Asked Questions
Which desoldering station is the best?
The Hakko FR301 is the strongest overall choice for PCB repair because it is a true vacuum gun with a 350C-500C dial range, a closed-loop sensor and hot-swappable nozzles. For surface-mount work with a soldering iron alongside, the YIHUA 862BD+ pairs a 75W iron with a hot air gun under a 20 millisecond PID loop.
Do I need a desoldering station or is solder wick enough?
Wick and a manual solder puller are fine for one or two through-hole joints. Once you are removing full headers, multi-pin connectors or DIP chips, a station with a built-in vacuum pump empties the joint by suction instead of force, which is much faster and stops pad lifting. Hot air alone is the tool for SMD chips and BGAs.
What size nozzle do I need for desoldering?
Match the nozzle bore to the joint so the molten solder column stays contained. A roughly 1.0mm bore suits a single pin and small connectors. Wider joints such as multi-pin headers and DIP leads need a larger nozzle that covers the full row. Start one size up from the joint diameter and step down if suction is weak.
How do I stop lifting pads when desoldering?
Use fresh flux, keep the nozzle over the joint instead of the surrounding board, and pull the part at the moment the solder releases rather than levering it. On a vacuum gun, trigger as the joint empties and never wait for it to cool. Add heat and retry instead of applying mechanical force to a cold joint.
Is a hot air rework station better than a desoldering gun for through-hole parts?
No. A hot air rework station heats a broad area and leaves solder behind, so you still lift the part with tweezers and the pad takes the load. A vacuum desoldering gun heats only the joint and removes the solder, which is why it is the standard choice for through-hole headers, connectors and DIP components.
Conclusion: The Right Station for Your Bench
The Hakko FR301 is our pick for the best desoldering stations for pcb repair because it is the only tool here that empties a through-hole joint by suction with real temperature control on top. Its 350C to 500C dial, closed-loop sensor and hot-swappable nozzles handle everything from fine BGA work to heavy transformer leads.
By use case, the Anesty ZD-915 is the affordable route into vacuum desoldering, provided you commit to cleaning the unheated rear tube section between jobs. The YIHUA 862BD+ is the better generalist when surface-mount rework and hand soldering share the bench, and the YIHUA 853D 2A adds bench power supply and measurement where you test boards on the desk.
On pure hot air, the LRT 858D 700W leads on raw heat while the YIHUA 8786D I leads on temperature stability. The Aoyue 968A+ earns its bench space with a built-in smoke absorber, and the WEP 8858-V and the Beaiguna two-in-one cover very small benches and very first builds respectively.
Whatever you pick, treat the consumables as part of the purchase. Extra nozzles, filter pads and cleaning rods decide how a station feels after six months, and for larger projects you will want a proper CNC machine for PCB prototyping and technician-grade kits such as our appliance repair tool kits alongside it.
