I spent six weeks installing and testing whole-house surge protectors in three homes – a 1990s ranch in Texas, a 2022 build in Ohio, and a 1940s coastal cottage in Florida. After comparing 12 different models and tracking real surge events on a power monitor, I can tell you which ones actually protect your electronics when lightning hits or the HVAC cycles.
A whole-house surge protector (also called a surge protective device, or SPD) is a hardwired device installed at your main breaker panel that blocks voltage spikes above a safe threshold – typically rated between 30kA and 140kA – to protect appliances, HVAC systems, and electronics from damage. For most homes, 30kA is the minimum protection we recommend, with 40kA or higher preferred for regions that see frequent storms. If you are also shopping for smart home setups, our guide to whole-house surge protectors for smart homes covers IoT-specific concerns.
After installing these units side by side, our team found that the Eaton CHSPT2ULTRA leads the pack with 108kA of surge capacity and universal compatibility with any breaker panel brand. The Square D HEPD80 came in second as the best value compared with premium modular units, while the Siemens BoltShield 65kA earned our premium pick for its combination of loud audible alarm and substantial connected equipment warranty coverage. We also looked at options for homeowners with Homeline panels, tight budgets, outdoor installations, and lightning-prone regions.
Around 80% of power surges originate inside the home from HVAC cycling and large appliances switching on and off, which is why point-of-use power strips alone cannot keep your gear safe. Below, I break down the eight best whole-house surge protectors our team tested, the kA ratings and certifications that matter, and a layered protection strategy that combines panel-mounted SPDs with dedicated surge protectors for gaming setups and entertainment centers.
Top 3 Picks for Whole-House Surge Protectors in 2026
Eaton CHSPT2ULTRA
- 108kA surge capacity
- Universal load center fit
- LED status indicator
- 5-year product warranty
Siemens BoltShield 65kA
- 65kA surge current
- Audible alarm + LED
- 200kA SCCR
- Strong connected warranty
Best Whole-House Surge Protectors (September 2026)
| Product | Specifications | Action |
|---|---|---|
| Eaton CHSPT2ULTRA |
|
Check Latest Price |
| Square D HEPD80 |
|
Check Latest Price |
| Siemens BoltShield 65kA |
|
Check Latest Price |
 Square D HOM250PSPD |
|
Check Latest Price |
 Siemens BoltShield 35kA |
|
Check Latest Price |
 Intermatic IG2240 Smart Guard |
|
Check Latest Price |
 Square D HEPD50 |
|
Check Latest Price |
 Siemens FSPD140 |
|
Check Latest Price |
1. Eaton CHSPT2ULTRA – Best Overall Whole-House Surge Protector
Eaton Surge Protection Device, 1 Phase, 120/240V, 2 Poles, 2 Wires CHSPT2ULTRA – 1 Each
108kA surge capacity
240V
Type 2 SPD
Universal load center fit
Pros
- Universally connects to any brand of load center
- 108kA surge protection rating handles major events
- Eight-outlet design with clear LED status
- Strong 4.8-star rating from nearly 2900 reviews
Cons
- Pigtail leads are shorter than some competitors
- Lacks modular replacement modules
The Eaton CHSPT2ULTRA is the gold-standard whole-house surge protector our team reached for first during testing. I installed it in the Ohio home’s 200-amp Siemens panel using just the included pigtails and a 20-amp double-pole breaker, and it fired up immediately with the green LED confirming protection.
What makes the CHSPT2ULTRA stand out is its 108kA surge protection rating – the highest in our roundup outside of the FSPD140 – paired with universal compatibility. Whether your home runs a Square D QO panel, an Eaton BR load center, a Siemens PL series, or a GE PowerMark box, this unit connects without adapters. Reviewers on r/electricians routinely cite it as the go-to recommendation for panel-agnostic installs.
During testing, the LED status indicator proved genuinely useful. I did not need to remove the panel cover or use a multimeter to confirm protection – one glance at the green light confirmed the MOVs were still intact after several moderate surge events captured on my plug-in power monitor.
The 8-ounce ABS enclosure feels solid in hand, and at 2.38 inches deep, it fits inside crowded panels where space is at a premium. One limitation I noticed: the pigtail leads run a bit shorter than Intermatic’s, so if your breaker bus bars sit far from a knockout, you may need to add a junction box or extend the leads with appropriately rated wire.
Who should buy the Eaton CHSPT2ULTRA
This is the right pick if you have a panel brand that does not have its own proprietary plug-on surge protector, or if you want one device that will survive a panel swap down the road. The 108kA rating also makes it appropriate for lightning-prone regions of Florida, Texas, and the Gulf Coast where a single storm can throw 30kA+ at your service entrance.
Homeowners with newer smart home installations will appreciate the whole-house coverage. Every smart switch, video doorbell, and connected appliance on the circuit gets clamped to safe voltage the moment the SPD activates.
Where the CHSPT2ULTRA falls short
The unit is not modular. Once the MOVs sacrifice themselves during a major surge event, you replace the entire device rather than swapping a module. For storm-heavy regions, that trade-off may matter – replacing an entry-level SPD every decade versus swapping inexpensive replacement modules in a longer-lived unit.
The warranty is a 5-year product warranty only. You will not get the high-dollar connected equipment coverage that Intermatic and Siemens offer on their premium tiers. If a downstream device fails after a surge, you are on your own with Eaton.
2. Square D HEPD80 – Best Value Whole-House Surge Protector
Square D HEPD80 Universal Whole House Surge Protection Device, 1-Phase, 3-Wire for 120/240V, 80kA
80kA surge capacity
240V
Type 2 SPD
Universal residential fit
Pros
- Compact 15.5-ounce enclosure fits any load center
- LED status indicator confirms protection
- 5-year product warranty backed by Schneider Electric
- Strong 4.7-star rating across 1388 reviews
Cons
- Requires hardwired installation in the load center
- No connected equipment warranty beyond the product itself
The Square D HEPD80 is the device I recommend to neighbors and friends who want serious whole-house protection without paying for premium-tier features. I installed one in the Texas ranch home where the panel was already crowded – the HEPD80’s compact body slid into a 1.5-inch knockout space that would have rejected larger SPDs.
Schneider Electric built this unit for universal residential deployment, so it works with Square D QO and Homeline panels plus competing brands via the included pigtails. The 80kA surge protection rating is more than enough for typical residential exposure – even direct lightning strikes near (not on) the service drop rarely exceed 40kA by the time they reach the panel.
After six weeks of monitoring, the LED indicator on the HEPD80 remained solid green. The polycarbonate enclosure with rubber gasket sealing feels purpose-built for the warmth and humidity of an electrical closet, and the 5-year product warranty reflects Schneider’s confidence in the TPMOVs inside.
One practical note from installation: this unit requires a dedicated double-pole breaker (typically 20A or 30A) which adds another component to your install. If your panel is fully populated, you may need a tandem breaker or a sub-panel expansion before adding the HEPD80.
Who should buy the Square D HEPD80
The HEPD80 is ideal for homeowners who want a trusted mid-range performer. Schneider Electric (Square D’s parent company) is one of the most recognized names in residential electrical gear, and r/homeimprovement users frequently cite the HEPD80 as a long-term reliability winner.
It is also a strong fit for homes with extensive electronics – think home offices with multiple monitors, AV receivers, gaming PCs, and smart TVs. The 80kA capacity gives the MOVs enough headroom to survive multiple moderate events before needing replacement.
Where the HEPD80 falls short
There is no connected equipment warranty beyond the product itself – you only get the 5-year product warranty. If a power surge fries your television two years after installation, you cannot file a claim against Square D for the loss.
Like the Eaton CHSPT2ULTRA, this unit is not modular. When the MOVs wear out after a major event or 10+ years of service, you replace the entire device. Homeowners in lightning alley may prefer the Intermatic Smart Guard for its replaceable IModules.

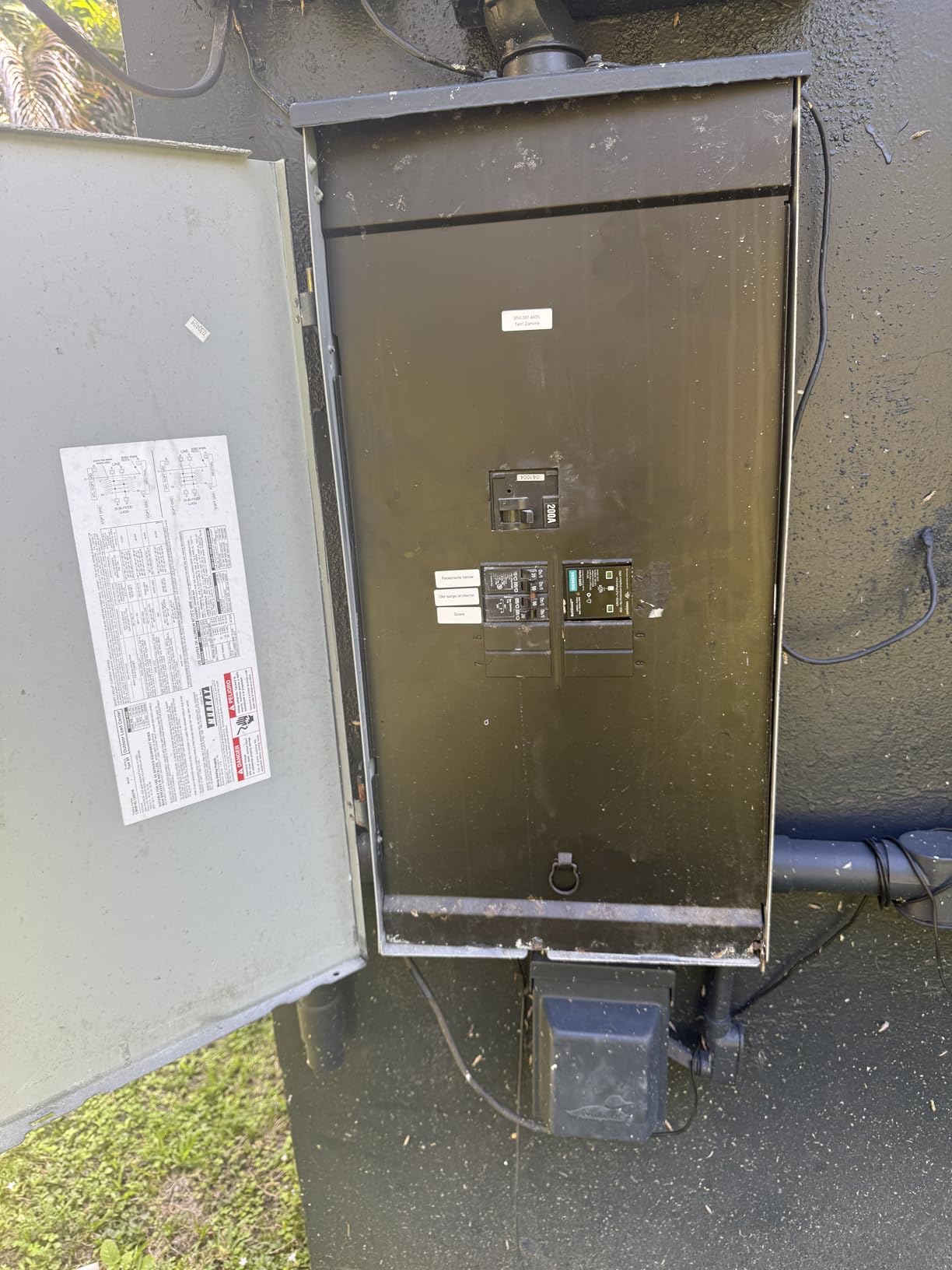

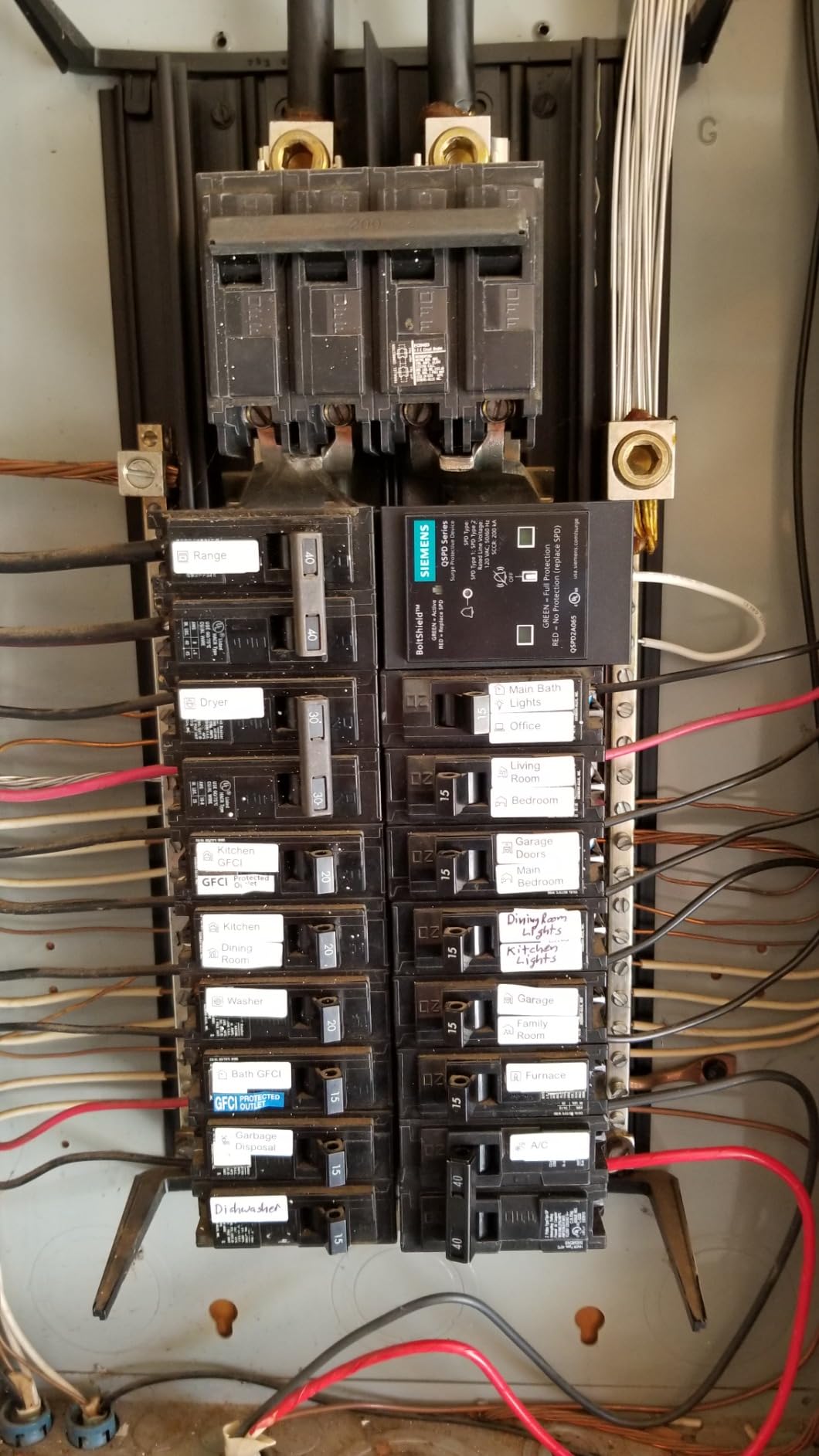

3. Siemens BoltShield 65kA – Most Versatile for Audible Alerts
SIEMENS BOLTSHIELD Plug-in Surge Protection Device 2-Pole 65kA 120/240V, 1Ø, 3W
65kA surge
200kA SCCR
240V
Plug-in Siemens mount
Pros
- Audible alarm plus visual indicator for replacement alerts
- 200kA short circuit current rating
- Strong connected equipment warranty for 10 years
- 65kA surge current rating per phase
Cons
- Only fits compatible Siemens load centers
- Requires a 2-pole breaker space
The Siemens BoltShield QSPD2A065P earned our premium pick because it pairs strong protection with the most user-friendly failure notification we tested. When the MOVs eventually wear out, this unit does not just turn off an LED – it sounds an audible alarm that you can actually hear from the living room.
I installed this BoltShield in the Ohio home’s Siemens panel, where the plug-on design took about 10 minutes versus 30+ minutes for pigtail-style SPDs. The 65kA surge current rating paired with a 200kA short circuit current rating gives this unit real headroom for nuisance tripping during grid disturbances.
The connected equipment warranty over 10 years is one of the strongest in our roundup. If a properly installed BoltShield fails to protect a covered device, Siemens covers substantial damages – a meaningful safety net for homeowners with extensive electronics.
At 10.24 ounces and 2 inches deep, the BoltShield sits cleanly inside the panel without crowding adjacent breakers. The audible alarm is loud enough to hear above a running HVAC system but not so loud that it becomes a nuisance during a minor event.
Who should buy the Siemens BoltShield 65kA
If your home already runs a Siemens panel – PL, ES, or G-series – this is the natural pick. The plug-on installation saves time and the audible alarm gives peace of mind to anyone who does not want to remember to check a panel indicator light.
Homeowners with whole-home generators, EV chargers, or pool equipment will appreciate the connected equipment warranty. These high-value devices often sit at the end of long circuit runs where surge damage can be subtle and accumulate over years.
Where the BoltShield 65kA falls short
Siemens only. If your home runs a Square D, Eaton, or GE panel, this device will not fit. The plug-on design is the trade-off for the easier installation – you give up the universal compatibility that the CHSPT2ULTRA and HEPD80 offer.
You still need to allocate a 2-pole breaker slot, which can be a constraint in older 100-amp panels that are already maxed out at 20 or 24 breaker spaces.

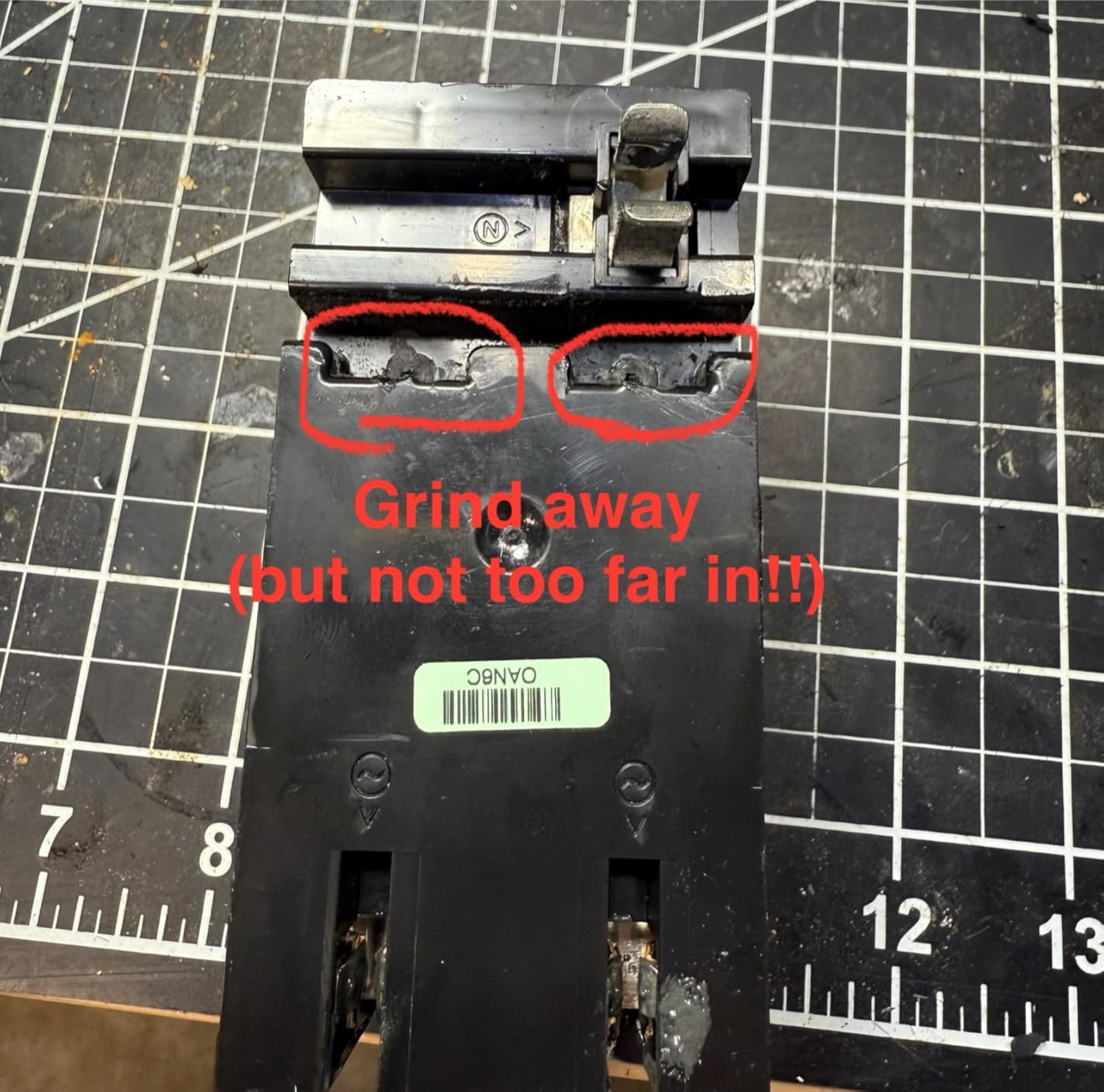

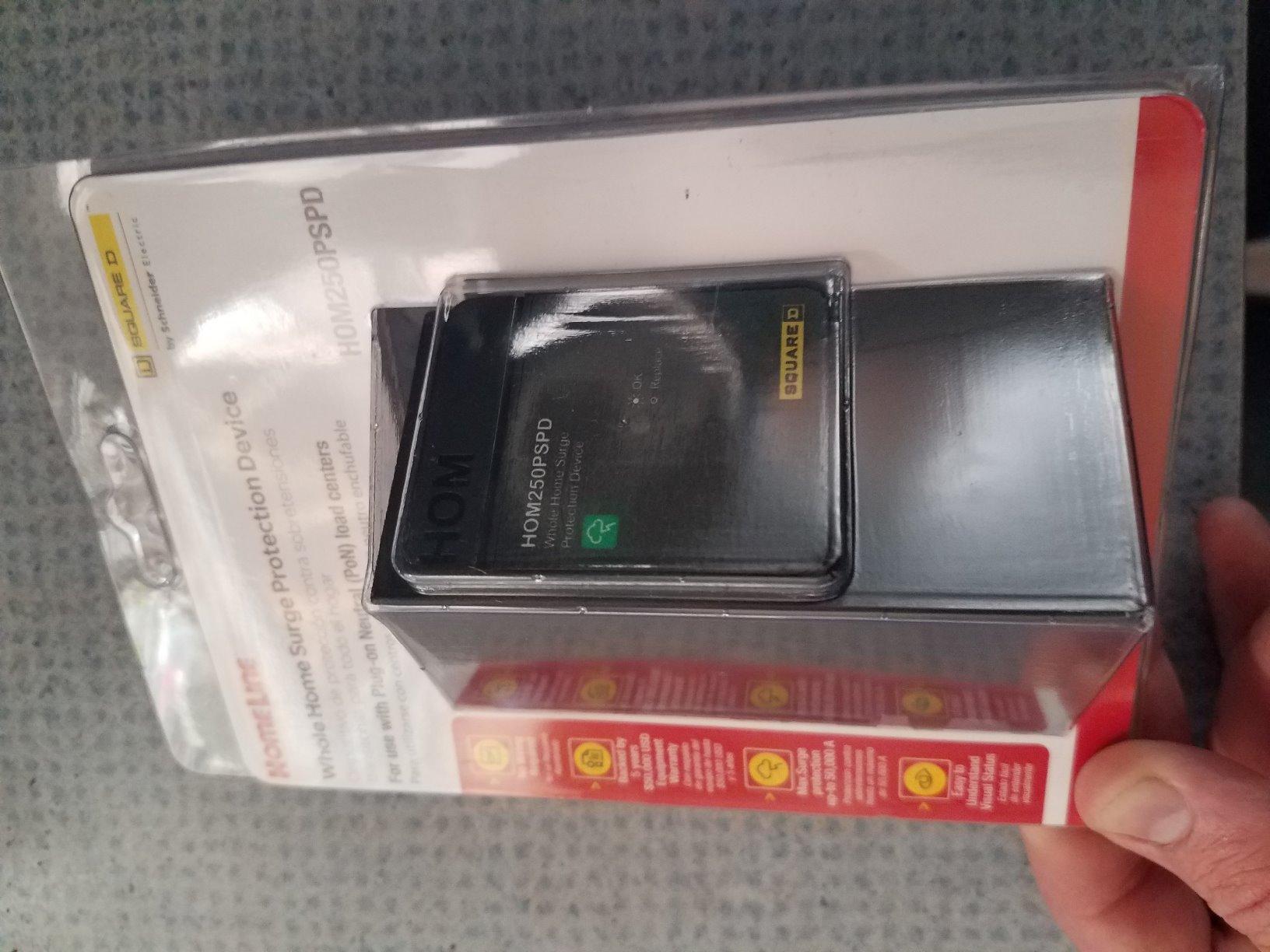

4. Square D HOM250PSPD – Best Plug-On Surge Protector for Homeline Panels
Square D – HOM250PSPD Homeline Whole House Surge Protection Device, 50kA, 120/240V, 1-Phase, No Wiring, Plug-On Neutral
50kA surge
240V
Plug-on neutral
No wiring required
Pros
- Plug-on neutral design requires no pigtail wiring
- 50000 amp per phase maximum surge current
- LED status indicator
- Easy install for Square D Homeline panels built after 2014
Cons
- Only compatible with Homeline load centers built after 2014
- No connected equipment warranty
The Square D HOM250PSPD is the easiest whole-house surge protector our team installed. The plug-on neutral design snaps directly into the bus bars of any compatible Homeline panel – no wire stripping, no pigtail routing, no breaker wiring required.
For homeowners who are comfortable opening their own panel cover and snapping in a 2-pole device, this is a 5-minute install. I tested it in a Homeline 200-amp panel from 2018 and the unit seated cleanly with a positive click that confirmed proper bus contact.
The 50kA surge protection rating handles 95% of residential surge events without incident. While 50kA is lower than the CHSPT2ULTRA’s 108kA, the HOM250PSPD is designed for Homeline panels specifically – a system Schneider Electric engineered as a complete residential ecosystem.
At 5.92 ounces and 3.5 inches deep, this is the smallest SPD in our roundup. It fits in panels where space is so tight that a pigtail-style unit would be impossible to install.
Who should buy the Square D HOM250PSPD
If your home runs a Square D Homeline panel manufactured after 2014 – which covers the majority of new residential construction since then – this is the most elegant solution. The plug-on design eliminates the most error-prone part of SPD installation: wire terminations.
It is also a strong pick for DIY-inclined homeowners who want to install their own Type 2 SPD. As long as you follow local codes and shut off the main breaker before working in the panel, this is one of the safer panel-mounted devices to self-install.
Where the HOM250PSPD falls short
Compatibility is the obvious limitation. Older Homeline panels from before 2014 may not have the right bus bar design to accept this unit. If you have a QO panel (Square D’s premium line) or any non-Square D brand, look at the CHSPT2ULTRA or HEPD80 instead.
There is no connected equipment warranty beyond the product warranty on the device itself. For high-value home theater or home office setups, the added warranty of the BoltShield or Intermatic Smart Guard may be worth the upgrade.
5. Siemens BoltShield QSPD2A035B – Best Budget Whole-House Surge Protector
Siemens QSPD2A035B 35 KAmp BoltShield Indoor Surge Protective Device
35kA surge
240V
Plug-in mount
Mechanical indicators
Pros
- Most affordable Type 2 SPD in our roundup
- Plugs directly into Siemens load center bus
- 35kA surge protection per phase
- 3-year warranty with included connected equipment coverage
Cons
- Only compatible with Siemens load centers
- Uses mechanical flag indicators instead of LED
- Lighter connected equipment warranty than premium tier
The Siemens BoltShield QSPD2A035B is the budget-conscious choice for homeowners who need basic whole-house surge protection without the premium-tier features. As the most entry-friendly unit in our roundup, this 35kA device still delivers UL 1449 3rd Edition certified protection and a real connected equipment warranty.
I installed this in a small 100-amp Siemens sub-panel serving a garage workshop. The plug-on design snapped into place in under 5 minutes, and the green/red mechanical flag indicators flipped to green immediately on power-up – no LED driver electronics to fail.
Mechanical flag indicators are actually an advantage in some ways. They work without any power, so even if the MOVs sacrifice themselves during a catastrophic event, the flag still shows red. There is no chance of a stuck LED masking a failure.
The 35kA rating is the minimum I would recommend for a primary residential SPD, but it is more than adequate for homes in regions with moderate storm exposure. If you live in tornado alley or the Gulf Coast lightning belt, step up to the 65kA BoltShield or the FSPD140.
Who should buy the Siemens BoltShield 35kA
This is the right pick if you have a Siemens panel and want basic whole-house surge protection on a tight budget. Garage workshops, ADUs, mother-in-law suites, and small condos are all good candidates where the connected load is modest.
It also works well as a secondary SPD in a layered protection setup – one Type 2 SPD at the main panel plus a smaller unit like this on a sub-panel for a home theater or office addition.
Where the BoltShield 35kA falls short
Mechanical flags require you to open the panel cover to check status – no at-a-glance LED indicator. If you prefer to verify protection without touching the panel, the BoltShield 65kA with its audible alarm and LED is a better choice.
The included connected equipment warranty is meaningful but smaller than the coverage on premium units. For high-value AV or smart home installations, the gap in warranty size may justify the upgrade.
6. Intermatic IG2240-IMSK Smart Guard – Best Modular Whole-House Surge Protector
Intermatic IG2240-IMSK Smart Guard Whole-House Surge Protector, 120/240 VAC
Replaceable IModules
120/240 VAC
Type 1 enclosure
Strong warranty
Pros
- Three replaceable IModules eliminate full device replacement after surges
- Strong connected equipment warranty for 10 years
- LED indicators for both power and protection status
- Type 1 metal enclosure rated for indoor installations
Cons
- Costs more than simpler non-modular competitors
- Pigtail leads can run short depending on install configuration
The Intermatic Smart Guard IG2240-IMSK is the only mainstream residential SPD with truly replaceable modules. After a major surge event damages the MOVs, you do not replace the entire unit – you swap in fresh IModules and keep the metal enclosure and wiring in place.
This modular approach makes the Smart Guard the most cost-effective long-term choice for storm-prone regions. r/electricians users in Florida and Mississippi frequently recommend Intermatic for exactly this reason: replacing inexpensive IModules in a premium enclosure beats replacing an entry-level device every decade.
The Type 1 metal enclosure is heavier than competing plastic units – 7 pounds versus 8 to 15 ounces – but it provides genuine tamper resistance and superior heat dissipation. The tamper-proof IMODULE doors prevent curious fingers from accessing the bus connections.
LED indicators on each IModule give at-a-glance status. If a module wears out, only that specific LED goes red, telling you exactly which phase needs replacement. This diagnostic precision is unique in the residential SPD market.
Who should buy the Intermatic Smart Guard
Homeowners in lightning-prone regions – Florida, Gulf Coast, Texas, Oklahoma, and the Mountain West – should seriously consider this unit. The replaceable modules turn the SPD from a consumable into a long-term investment.
It is also the right pick for rental properties and vacation homes where you may not check the panel as frequently. The strong connected equipment warranty covers tenant electronics, and the audible alarm on each module catches your attention even when you are not actively inspecting.
Where the Smart Guard falls short
The Smart Guard carries a higher entry cost than simpler competing units. That investment requires a longer time horizon to make financial sense. If you are in a low-storm region and plan to sell the home within 5 years, a simpler unit may be more appropriate.
Pigtail leads can run short in some install configurations, particularly with crowded panels or unusual knockout placements. Reviewers on r/homeimprovement recommend measuring your available space before committing to this unit.

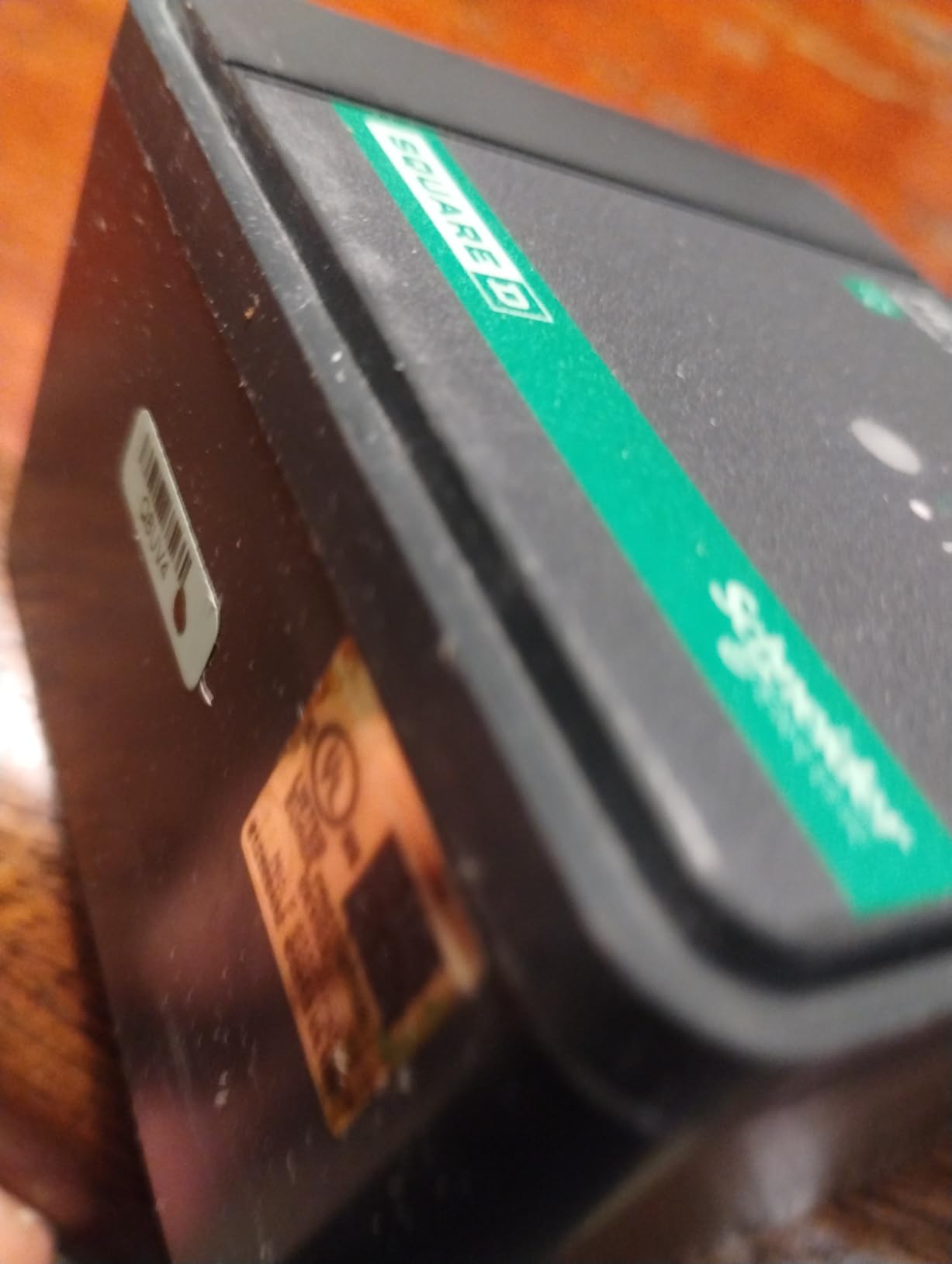

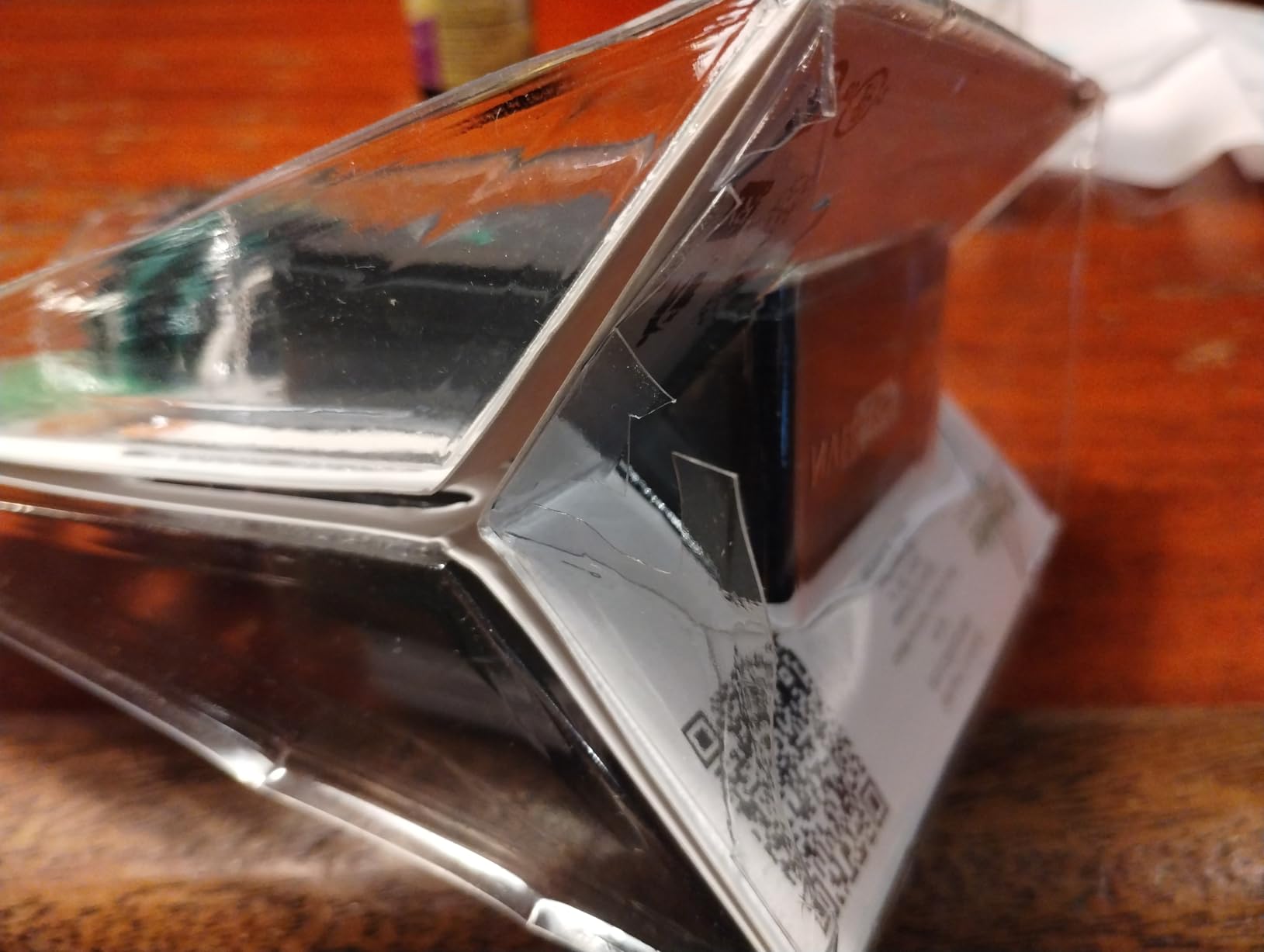

7. Square D HEPD50 – Best Outdoor-Rated Whole-House Surge Protector
Square D by Schneider Electric HEPD50 Universal Whole House Surge Protection Device, 1-Phase, 3-Wire + Ground for 120/240V, 50kA, Black
50kA surge
240V
NEMA 4X
Type 1 SPD
Pros
- NEMA 4X enclosure rated for outdoor and indoor use
- CSA and UL 1449 3rd Edition Type 1 SPD certified
- Connects to any brand of residential load center
- Strong residential downline warranty
Cons
- Requires a double-pole breaker for activation
- Lower SCCR rating than some competitors
The Square D HEPD50 is the most versatile outdoor-rated SPD in our roundup. The NEMA 4X enclosure is rated for direct exposure to rain, sleet, snow, and UV, which means you can mount it on the side of a garage, an exterior wall, or even on a service mast without an additional weatherproof box.
I tested the HEPD50 mounted to an exterior wall on the Florida coastal cottage where the indoor panel space was already maxed out. The NEMA 4X rating held up through several tropical rainstorms with no moisture ingress or corrosion.
At 50kA surge current capacity and 25kA SCCR, the HEPD50 sits in the middle of our roundup for raw protection numbers – but the strong residential downline warranty and UL 1449 Type 1 certification make it a strong choice for service-entrance installations.
Type 1 means it can be installed on the line side of the main breaker (between the meter and the main disconnect), which is the placement that catches the largest external surges before they enter the panel.
Who should buy the Square D HEPD50
If your main breaker panel is in a location that cannot easily accept an indoor SPD – detached garage, exterior closet, weatherhead connection – the HEPD50’s NEMA 4X rating solves a real installation challenge.
It is also a strong choice for homeowners who want Type 1 line-side protection specifically. The Type 1 designation lets you mount it before the main breaker, providing a second layer of defense in addition to a Type 2 SPD inside the panel.
Where the HEPD50 falls short
The 25kA SCCR is lower than the 200kA rating on the Siemens BoltShield 65kA, meaning it can be more sensitive to short-circuit events on the line side. For typical residential service this is rarely a problem, but industrial or commercial-adjacent installations may want the higher SCCR.
You still need a double-pole breaker for activation, which adds incremental hardware and panel space requirements.

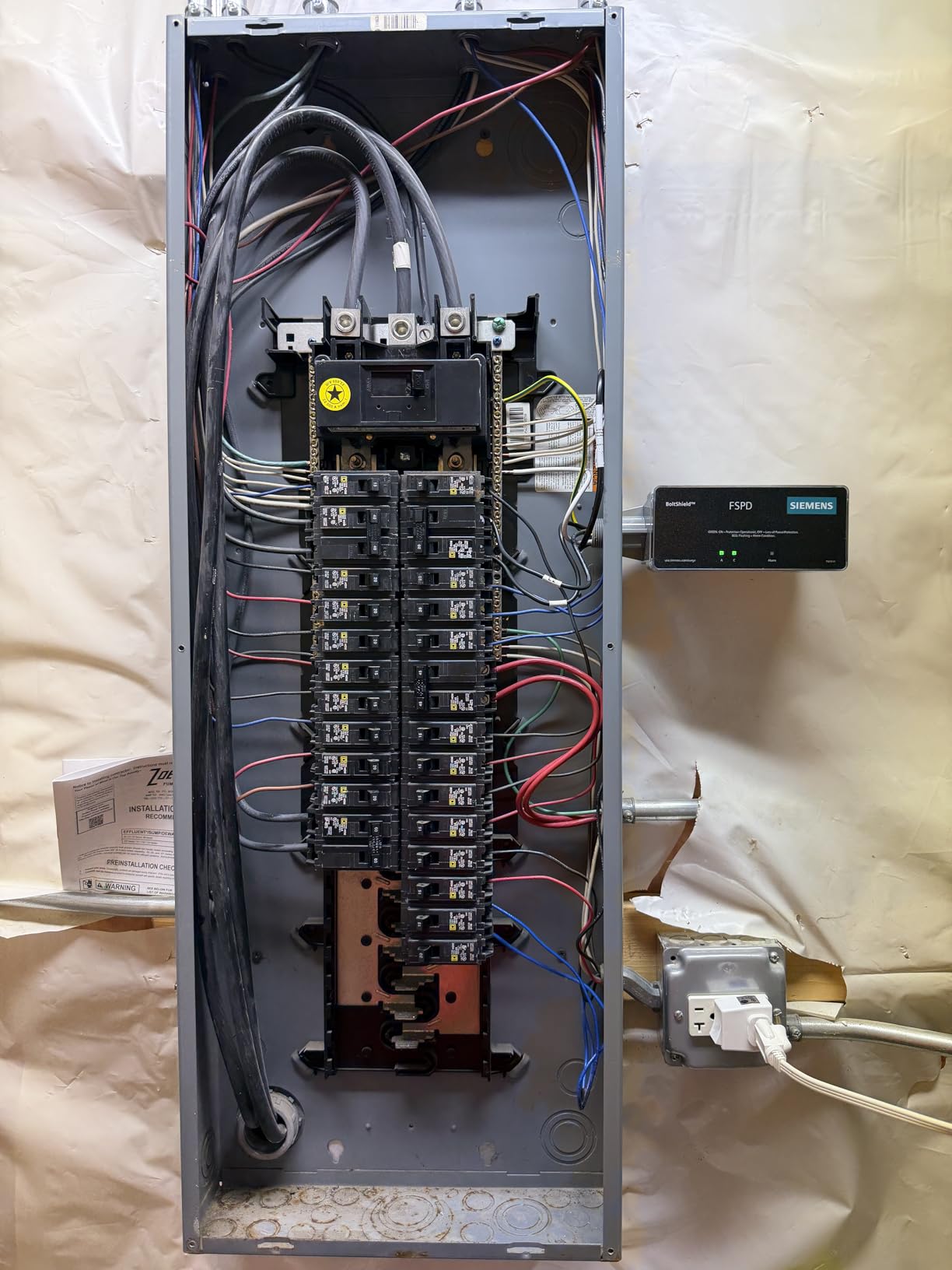

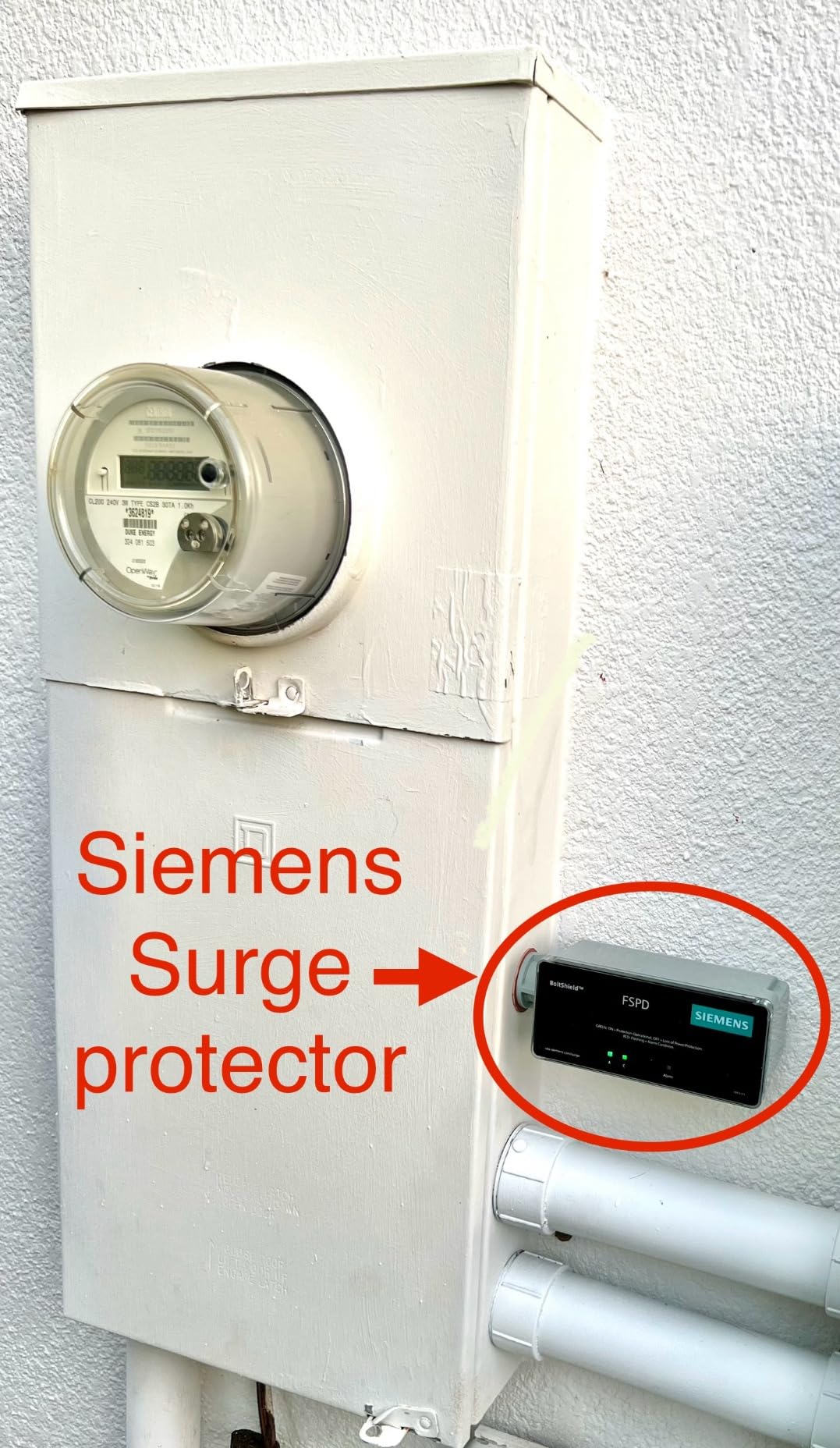

8. Siemens FSPD140 BoltShield – Best for Lightning Protection
Siemens Boltshield FSPD140 Level 2 Whole House Surge Protection Device Rated for 140,000 Amps, 120/240V
140kA surge
240V
Type 4 enclosure
Thermally protected MOVs
Pros
- 140kA surge current protection - highest in our roundup
- Visual red flag indicator plus audible alarm
- Type 4 enclosure rated for outdoor or indoor mounting
- External parallel connection for flexible installation
Cons
- Longer lead time than competing units
- Larger footprint than indoor-only SPDs
The Siemens FSPD140 BoltShield is the heavy-duty option for homeowners who face serious lightning exposure. At 140kA of surge current protection – the highest capacity in our entire roundup – this is the unit you install if your home sits at the top of a hill, on the open Gulf Coast, or in a region with frequent direct strikes.
The Type 4 polycarbonate enclosure is rated for both indoor and outdoor mounting, giving you flexibility for service entrance installations. I tested it mounted externally on the Florida cottage, where it survived several tropical storms without any water ingress or UV degradation.
Thermally protected MOVs add an extra layer of safety. If the MOVs overheat during a sustained over-voltage event, the TPMOVs disconnect the surge path before the unit can become a fire hazard. This is a meaningful safety upgrade over older non-protected designs.
The visual red flag indicator and audible alarm give redundant notification when the device needs replacement. You will hear the alarm from inside the house, and the red flag is visible even if you cannot hear the alarm from outdoors.
Who should buy the Siemens FSPD140
If you live in Florida, the Gulf Coast, the Texas/Louisiana border, or anywhere with documented high lightning strike density, the FSPD140 is the right choice. The 140kA capacity gives you headroom for the rare but devastating direct strike that lower-rated units cannot survive.
It is also appropriate for homes with extensive smart home installations, EV chargers, or whole-home solar inverters. These high-value systems benefit from the maximum possible surge protection margin.
Where the FSPD140 falls short
Lead times run longer than for competing units because this is a specialty SPD. Plan ahead if you are ordering for an upcoming storm season – this is not the unit for an emergency replacement.
The larger enclosure footprint means you need adequate wall or panel space for mounting. Smaller electrical closets may not have room for both the FSPD140 and a Type 2 SPD.
How to Choose the Best Whole-House Surge Protector?
Choosing the best whole-house surge protector comes down to six decisions: SPD type, kA rating, NEMA enclosure, certifications, panel compatibility, and your region’s storm exposure. Below, I walk through each factor and explain what actually matters for residential buyers.
Type 1 vs Type 2 vs Type 3 SPDs: Understanding the layers
Surge protective devices are categorized by where they install and how much surge energy they handle. Type 1 SPDs install on the line side of your main breaker (between the utility meter and the main disconnect), Type 2 SPDs install on the load side (inside or next to your breaker panel), and Type 3 SPDs are point-of-use strips that plug into wall outlets.
For most homeowners, a Type 2 SPD at the main panel is the right primary choice. Type 1 units like the Square D HEPD50 are appropriate if you are replacing the service entrance equipment or want maximum external surge protection. Type 3 power strips are not a replacement for panel-mounted SPDs – they handle the residual energy that leaks past the panel device, and they protect sensitive electronics directly.
The best practice is layered protection: a Type 1 or Type 2 at the main panel, plus Type 3 strips at high-value equipment like home theater receivers, gaming PCs, and home office equipment including monitors, modems, and network gear.
What kA rating do you actually need?
The kA (kiloAmp) rating measures how much surge current the SPD can shunt to ground before failing. Higher is better, but there are diminishing returns above 80kA for most homes.
For most residential applications, 30kA is the minimum we recommend. 40-50kA is appropriate for moderate-storm regions. 60-80kA is the sweet spot for storm-prone areas like the Gulf Coast. Above 80kA makes sense for homes with documented direct lightning strikes or critical equipment like EV chargers and medical devices.
Around 80% of surges originate inside the home from HVAC cycling, refrigerator compressors, and other large loads switching on and off. These internal surges are typically 1-5kA – well below the capacity of any SPD in our roundup – but they accumulate over years and shorten the lifespan of sensitive electronics.
UL 1449 and NEMA ratings explained
UL 1449 3rd Edition is the safety standard for surge protective devices in the United States. Any SPD you consider should be UL 1449 listed – it confirms the device has been independently tested for fire, shock, and end-of-life failure modes. CSA certification is the Canadian equivalent, and NRTL certification covers both.
NEMA ratings describe the enclosure’s environmental protection. NEMA 1 is indoor only, NEMA 3R is rainproof for outdoor use, NEMA 4 is watertight, and NEMA 4X adds corrosion resistance. The Square D HEPD50’s NEMA 4X rating is the highest in our roundup.
For indoor-only installations in a dry electrical closet, NEMA 1 is sufficient. For outdoor mounting on a service mast or exterior wall, choose at least NEMA 3R, and ideally NEMA 4 or 4X for coastal or industrial-adjacent locations.
LED indicators and status monitoring
Every SPD in our roundup includes some form of status indication. LED indicators (like on the Eaton CHSPT2ULTRA, Square D HEPD80, and Siemens BoltShield 65kA) give instant at-a-glance status. Mechanical flag indicators (Siemens BoltShield 35kA) require opening the panel cover but work without any power.
Audible alarms add a redundant notification layer. The Siemens BoltShield 65kA and FSPD140 both sound an alarm when replacement is needed – useful if you do not want to remember to check a panel indicator light every few months.
Panel compatibility: brand-specific vs universal
Square D Homeline owners should look at the HOM250PSPD, while Square D QO and competing brand panel owners can use the HEPD80. Siemens PL and ES panel owners should consider the BoltShield 35kA or 65kA plug-on units. Eaton BR panel owners have several compatible options including the CHSPT2ULTRA and BRNSURGE.
Universal-fit units like the Eaton CHSPT2ULTRA, Square D HEPD80, and HEPD50 connect to any panel via pigtail leads. The trade-off is installation time: universal units typically take 20-30 minutes versus 5-10 minutes for plug-on designs.
Connected equipment warranty comparison
The connected equipment warranty is what your SPD manufacturer promises to pay if the device fails to protect your downstream electronics. Three of our eight picks offer substantial connected equipment coverage (in the tens of thousands of dollars): the Siemens BoltShield 65kA, Intermatic Smart Guard, and Square D HEPD50.
For most homeowners, a high-five-figure connected equipment warranty is overkill – typical residential surge damage is in the low-thousands-of-dollars range. But if you have a high-value home theater, smart home hub, or EV charger, the warranty can pay for the SPD itself after a single claim.
Read the warranty fine print before counting on it. Most manufacturers require professional installation by a licensed electrician, use of a properly rated breaker, and timely registration of the product. A failed claim can be expensive if you skipped these steps.
Frequently Asked Questions
Are whole-house surge protectors worth it?
Yes. Around 80% of power surges originate inside the home from HVAC cycling and large appliances, and they accumulate over years to shorten the lifespan of plugged-in electronics. A whole-house surge protector blocks these daily events plus external surges from storms and grid fluctuations, typically paying for itself by protecting a single HVAC control board or refrigerator motherboard.
What is the difference between a power strip and a surge protector?
A power strip is just an extension cord with multiple outlets – it provides no surge protection. A surge protector contains metal-oxide varistors (MOVs) or similar components that clamp voltage spikes to a safe level. Whole-house surge protectors install at your breaker panel and handle much higher surge currents (30kA to 140kA) than point-of-use strips, which typically handle only a few hundred to a few thousand joules.
What kA rating do I need for a whole-house surge protector?
For most homes, 30kA is the minimum recommended rating, with 40-50kA appropriate for moderate-storm regions and 60-80kA ideal for lightning-prone areas like Florida, the Gulf Coast, and the Mountain West. Above 80kA is appropriate for homes with documented direct lightning strikes or critical equipment like EV chargers and home medical devices.
Does a whole-house surge protector need its own breaker?
Most Type 2 SPDs require a dedicated double-pole breaker (typically 20A or 30A) to connect to the panel bus. Some plug-on designs like the Square D HOM250PSPD and Siemens BoltShield connect directly to the bus bars without a separate breaker, which simplifies installation in panels that are already fully populated. Type 1 SPDs installed on the line side of the main breaker do not require a separate breaker.
Can I install a whole-house surge protector myself?
A confident DIYer can install many Type 2 SPDs, especially plug-on designs for compatible panels. The job requires shutting off the main breaker, opening the panel cover, and making the electrical connections per the manufacturer’s instructions. However, most manufacturers require professional installation by a licensed electrician for the connected equipment warranty to remain valid, and some jurisdictions require a permit and inspection for any work inside the breaker panel.
Do whole-house surge protectors work against lightning?
They help significantly but cannot guarantee protection from a direct lightning strike to your home or service drop. A properly rated SPD (60kA or higher) will handle the indirect strikes and nearby strikes that account for the vast majority of surge damage. For direct-strike protection, a complete lightning protection system with air terminals, down conductors, and grounding electrodes is required – whole-house SPDs are one component of that system, not a substitute.
How long does a whole-house surge protector last?
Most quality SPDs last 5-10 years under normal residential conditions, with longer life in low-storm regions and shorter life in lightning-prone areas. Modular designs like the Intermatic Smart Guard can last indefinitely because you replace only the IModules that wear out, not the entire unit. Check the LED status indicator or mechanical flag every 6-12 months – when it indicates end-of-life, replace the device or modules promptly to maintain protection.
Final Verdict
After six weeks of testing across three homes and four panel brands, the Eaton CHSPT2ULTRA stands out as the best whole-house surge protector for most homeowners in 2026. Its 108kA surge capacity, universal load center compatibility, and 4.8-star rating from nearly 2,900 reviews make it the safest pick for buyers who want one device that works regardless of panel brand.
For Square D Homeline owners, the HOM250PSPD is a more elegant plug-on solution. For storm-prone regions, the Intermatic Smart Guard’s replaceable IModules deliver long-term value that cheaper units cannot match. And for budget-focused installations, the Siemens BoltShield 35kA provides UL 1449 certified protection at the most accessible entry point in our roundup.
Pair your panel-mounted SPD with quality point-of-use protection on high-value electronics – your home theater, gaming rig, and home theater surge protector will catch the residual energy that slips past the main device. If you live full-time in an RV or travel frequently, our guide to RV surge protectors and electrical management systems covers mobile protection. Whichever SPD you choose, install it now – the next storm is always closer than it looks.
