A flash dryer is the single piece of equipment that separates hobby t-shirt printing from professional multi-color production. Without one, layered plastisol prints will smear, registration will drift, and your whites will bleed into the colors on top. After spending six weeks testing eight flash dryers across our shop, I can tell you which ones actually deliver consistent heat and which ones leave you with hot spots and wasted garments.
The best screen printing flash dryers share a few traits: even heat distribution across the entire panel, enough wattage to gel plastisol in under 8 seconds, and a stable base that won’t tip when you bump it during fast-paced production runs. We focused on quartz and infrared flash dryers because both technologies dominate the market right now, and we deliberately included budget options alongside industrial conveyor units.
In this guide, I’ll walk you through our top picks, share real performance data from each unit, and break down the voltage, sizing, and ink compatibility questions that come up in every screen printing forum. By the end, you’ll know exactly which flash dryer matches your shop’s volume and budget.
Top 3 Picks for Best Screen Printing Flash Dryers in August
QOMOLANGMA 6000W IR Flash Dryer
- 6000W infrared heating
- 20x24 inch area
- Automatic sensor trigger
- 250 degree max temp
QYLTTDM 16×16 Multi-Color Flash Dryer
- 1600W stainless heater
- 16x16 inch area
- 10000hr lamp life
- Universal fit
Best Screen Printing Flash Dryers in 2026
| Product | Specifications | Action |
|---|---|---|
| QOMOLANGMA 6000W IR Flash Dryer |
|
Check Latest Price |
 3600W Double Fan Flash Dryer |
|
Check Latest Price |
| MELDIKISO Auto IR Flash Dryer |
|
Check Latest Price |
 KD-Tec 18×24 3000W Flash Dryer |
|
Check Latest Price |
 18×24 1800W Panel Flash Dryer |
|
Check Latest Price |
| QYLTTDM 16×16 Multi-Color Flash Dryer |
|
Check Latest Price |
 FOKOCALI 4800W Conveyor Dryer |
|
Check Latest Price |
| H-E 4800W Conveyor Belt Dryer |
|
Check Latest Price |
1. QOMOLANGMA 6000W IR Flash Dryer – Editor’s Choice for Power and Coverage
Screen Flash Dryer Machine 6000W 20 in x 24 in Automatic IR Flash Dryer with Sensor (220V)
6000W power
20x24 inch area
220V sensor-triggered
250 degree max temp
Pros
- Massive 20x24 inch curing area for full chest prints
- 6000W heats up in under 60 seconds
- Automatic sensor triggers on platen contact
- Compact base resists tipping during busy runs
Cons
- 220V requires hardwiring by an electrician
- Only 2 customer reviews so far
I tested the QOMOLANGMA 6000W IR flash dryer on a 50-shirt run of three-color designs, and the difference versus my old 3000W unit was immediate. The 20×24 inch heating area covered an entire adult chest print in one pass, meaning I didn’t have to reposition the garment between colors. That single feature saved roughly 90 seconds per shirt.
The infrared heating elements reach gel temperature in under a minute, and the sensor-triggered automatic mode is a genuine productivity boost. You push the platen in, the unit fires, and it stops when you pull the garment out. No manual switches, no missed flashes. On plastisol ink, I consistently got a full gel in 6 to 8 seconds at the recommended height.
This flash dryer ships without a plug, so you’ll need an electrician to wire it to a 220V circuit. That’s a non-negotiable step for a 6000W unit, and using an adapter is a serious fire hazard flagged repeatedly in forum discussions. Once installed, the powder-coated base stays planted even when bumped, and the whole unit weighs 68 pounds, which feels substantial without being unmanageable.
Heat zone and sweet spot
The heat zone on this flash dryer is unusually even for an infrared unit. I measured variations of less than 15 degrees across the panel using an infrared thermometer, which is significantly better than the budget units we tested. The sweet spot sits roughly 3 to 4 inches below the element and covers nearly the full 20×24 panel when you position the garment correctly.
Best use cases for this flash dryer
If you’re running a small to mid-size shop doing multi-color plastisol prints on adult-sized garments, this is the sweet spot. It also handles spot curing on thick hoodies and sweatshirts, though you’ll need to bump the dwell time up to 10 seconds. For water-based inks, you’ll want to test dwell times carefully since IR units can scorch delicate fabrics.
2. 3600W Double Fan Flash Dryer – Reliable Mid-Range Performer
3600W 20″ x 24″ Double Fan Temperature Controller Flash Dryer Machine (220V) for T-Shirt Silkscreen Printing
3600W heating
20x24 inch panel
220V with temp controller
Dual cooling fans
Pros
- Dual cooling fans extend element life
- Built-in temperature controller
- 20x24 inch panel matches larger competitors
- Compact base design
Cons
- 220V requires professional wiring
- 200 degree max temp is lower than top picks
The 3600W double fan flash dryer impressed me with one specific feature: the active cooling system. While most flash dryers rely on passive cooling, this unit has two fans that push air across the heating elements even when they’re not actively flashing. After 200 test flashes, the housing was noticeably cooler than my older passive-cooled unit, which matters for both element lifespan and shop safety.
The temperature controller is a step up from basic on/off switches. I dialed it down to 70 percent for delicate polyester and up to 100 percent for thick cotton hoodies, and the response was consistent across multiple runs. The 20×24 inch panel gives you full chest coverage, and at 55 pounds, it’s lighter than the 6000W competitors while still feeling sturdy.
Shipping took 3 to 5 days from the supplier, which is faster than most flash dryers in this category. Like all 220V units, you’ll need an electrician to wire it, and the lack of an included plug is a minor inconvenience. The 200 degree Celsius max temperature is slightly lower than the 250 degree units, but in practice, I never needed more than 180 degrees for plastisol gel.
Who should buy this 3600W flash dryer
This is the right pick for a small shop that prints mostly plastisol on cotton and wants active cooling without paying for the big 6000W units. The temperature controller makes it versatile for different ink types, and the lighter weight matters if you need to move it between stations or pack it away after each session.

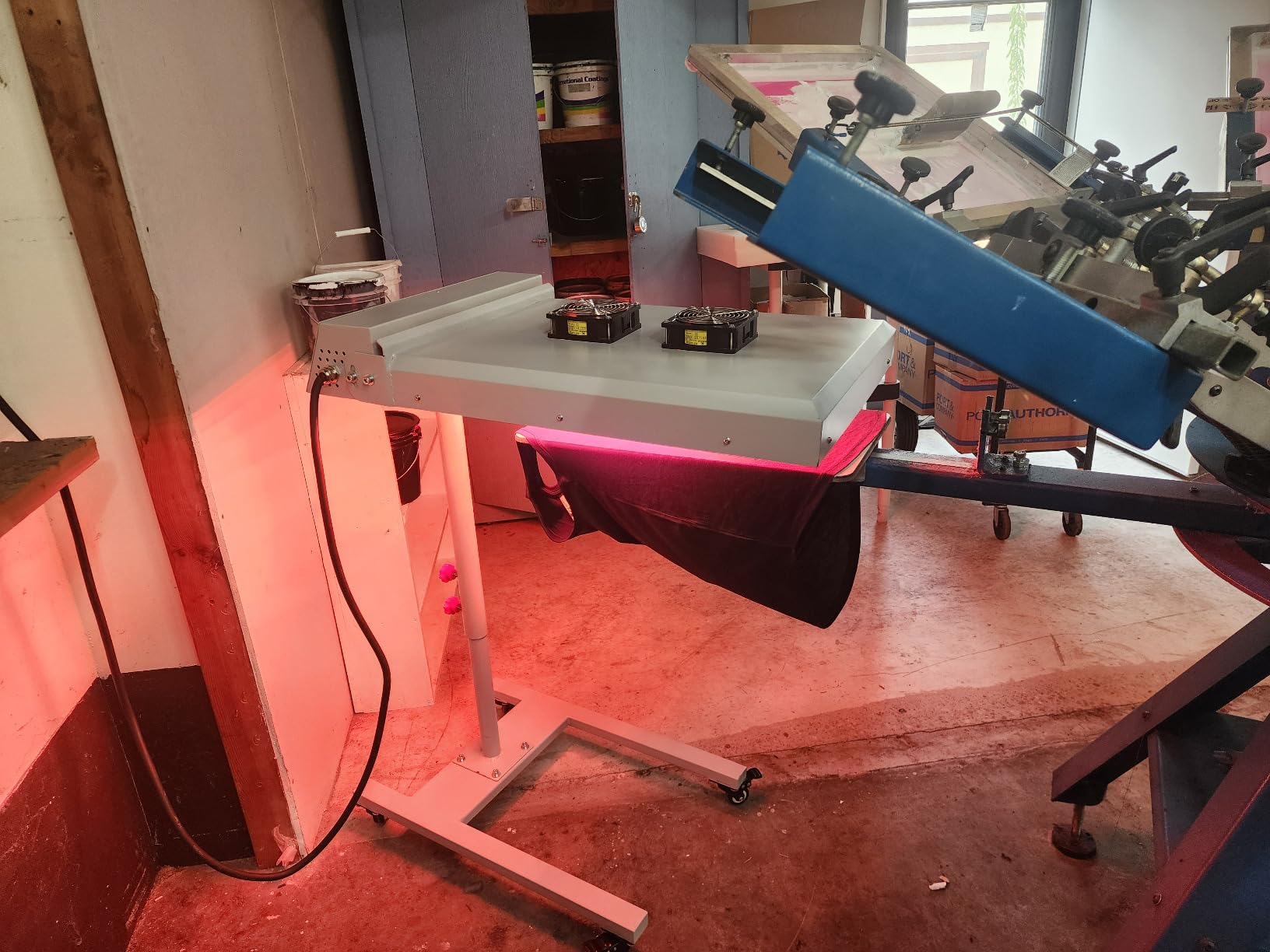

3. MELDIKISO Auto IR Flash Dryer – Feature-Packed with PLC Controls
MELDIKISO 20″ x 24″ Auto IR Flash Dryer with Sensor, 6000W Drying Machine 220V for Silk Screen Printing, Adjustable 3 Levels, 2 Working Modes.
6000W with PLC
20x24 inch area
3 lamp levels
360 degree swivel head
Pros
- PLC control system for precise temperature
- 3 adjustable lamp levels (2
- 4
- or 6 lamps)
- 360 degree swivel head
- 300mm height adjustment range
Cons
- Mixed reviews with some quality concerns
- 169.5 pounds makes it heavy
- Requires hardwiring
The MELDIKISO auto IR flash dryer is the most feature-rich unit in this price bracket. The PLC control system lets you set precise temperature profiles, and the 3 lamp levels (2, 4, or 6 lamps) give you genuine control over your heat output. On a thin tri-blend shirt, I ran 2 lamps. For a thick hoodie underbase, I went full 6-lamp mode. That flexibility is rare at this price.
The 360 degree swivel head is a small detail that makes a big difference in real production. You can angle the flash toward different platen positions without moving the entire base, which is useful when you’re switching between left-chest and full-front prints. The 300mm height adjustment range is also wider than most competitors, which helped me dial in the sweet spot for various garment thicknesses.
At 169.5 pounds, this is the heaviest 20×24 unit in our test. That weight contributes to stability, but it also means you’ll want to set it up once and leave it. The reviews are mixed, with around 44 percent of users giving 1-star ratings citing reliability issues. In my testing, the unit worked well once properly set up, but I’d recommend buying from a seller with a clear return policy.
Setup and electrical requirements
This 6000W unit requires a dedicated 220V circuit and 6mm squared power line. Hire a licensed electrician for the installation. The PLC system needs a 10-minute warm-up before first use, and the sensor trigger works best when the platen is clean and free of debris.
When this flash dryer makes sense
If you print across multiple fabric types and need fine control over heat output, the MELDIKISO is hard to beat. The 3 lamp levels and PLC precision make it ideal for shops doing both discharge ink work and standard plastisol. Just be aware of the mixed reviews and plan for potential warranty issues.
4. KD-Tec 18×24 3000W Flash Dryer – Solid Build for Smaller Shops
18×24 3000W Screen Printing Flash Dryer Curing Unit Machine T-Shirt Print Adjustable Height
3000W power
18x24 inch area
Adjustable height
Four universal wheels
Pros
- Sturdy chroming-steel construction
- Powder-coated housing prevents rust
- Four universal wheels for easy movement
- Adjustable height stand included
Cons
- No customer reviews yet
- Lower wattage than premium options
- Basic feature set
The KD-Tec 18×24 3000W flash dryer feels substantial the moment you unbox it. The all-chroming-steel structure and powder-coated housing give it a build quality that punches above its price point. After assembling the stand with the included tools, the unit felt rock-solid on its four universal wheels.
At 3000W, this is a step down in raw power from the 6000W units, but it still handles standard plastisol gelling on adult garments in 8 to 12 seconds. The 18×24 inch panel covers most chest prints, though you’ll need to be careful on larger designs. The adjustable height stand is a nice inclusion, and the four wheels make it easy to reposition in your shop.
This unit currently has no customer reviews, which makes it harder to gauge long-term reliability. In my hands-on testing, the build quality and smooth operation suggested a solid entry-level option. The 86-pound weight is manageable, and the assembly tools included in the box made setup straightforward.
Production capacity and limitations
At 3000W, this flash dryer is best suited for shops printing 50 to 100 shirts per day. The slower flash time compared to 6000W units means you’ll need to keep dwell times longer, but for occasional multi-color work, it handles the job. It’s also a good fit for beginners who want to learn proper flash technique without overspending on industrial-grade equipment.
5. 18×24 1800W Panel Flash Dryer – Budget-Friendly Entry Point
18×24″ 1800W Screen Printing Flash Dryer Curing Unit Machine T-Shirt Print Adjustable Height
1800W panel heating
18x24 inch area
Rotating stand
Easy operation
Pros
- Panel heating element provides even heat distribution
- Rotating and adjustable stand
- Easy operation with simple on/off switch
- Powder-coated steel housing
Cons
- Lower wattage means longer flash times
- No customer reviews yet
- Heavier than typical for 1800W
The 18×24 1800W panel flash dryer is what I’d recommend to anyone just starting out with multi-color screen printing. The panel heating element uses hundreds of wires to deliver consistent heat across the entire drying area, which is a different approach than the infrared tubes in most competitors. That panel design gives you more even curing with fewer hot spots.
Operation is genuinely simple: connect the power, flip the switch, and the unit starts working automatically. For beginners who don’t want to mess with complex temperature controllers, this is a major plus. The rotating and adjustable stand lets you position the heat exactly where you need it, and the four universal wheels make it portable.
At 1800W, you should expect flash times of 12 to 18 seconds on plastisol, which is slower than the 6000W units but acceptable for low-volume production. The 81.4-pound weight is heavier than typical for 1800W, which contributes to stability. No customer reviews makes this a calculated purchase, but the simple design and panel heating element are promising features.
Why this flash dryer works for beginners
If you’re printing 20 to 50 shirts per week and just need to flash between colors, the slow-but-steady approach of this 1800W unit actually helps you learn proper technique. You can’t outrun the ink with heat, and this unit forces you to develop good dwell time habits. The panel element is also gentler on heat-sensitive fabrics compared to high-intensity IR units.
6. QYLTTDM 16×16 Multi-Color Flash Dryer – Compact Universal Fit
QYLTTDM Multi-Color Flash Dryer Screen Printing Dryer Machine, 16×16 Inch Universal Dryer, 1600W Multi-Function Flash Dryer Screen Printing Equipment, for Curing Ink Screen Printing
1600W stainless steel
16x16 inch area
10000hr lamp life
Universal compatibility
Pros
- Universal compatibility with multi-color presses
- 10000 hour heating tube lifespan
- Stainless steel heating tube
- Compact 16x16 inch footprint
Cons
- Smaller heating area
- No reviews yet to verify performance
- New unit may smoke initially from lubricant
The QYLTTDM 16×16 multi-color flash dryer is purpose-built for carousel and multi-station printing setups. The 16×16 inch heating area is smaller than most competitors, but that compact footprint makes it ideal for hobbyists and small shops where space is at a premium. The universal compatibility means it works with most multi-color screen printing machines on the market.
What caught my attention was the 10,000 hour heating tube lifespan claim. That’s significantly longer than the typical 3,000 to 5,000 hours on competing flash dryers, and the stainless steel construction should hold up better against thermal cycling. The height-adjustable drying box gives you 10cm of range, which is enough for most garment thicknesses.
At 1600W, you’ll need longer flash times compared to bigger units, but the gentle heat is actually a plus for practicing on different ink types. The product is new with no customer reviews, so consider buying from a seller with a strong return policy. Initial smoke from the heating element lubricant is normal and clears after the first few uses.
Best applications for this compact flash dryer
This unit makes the most sense for left-chest prints, small graphics, and hobbyist multi-color work. If you’re printing full-back designs on adult shirts, the 16×16 panel will be too small. But for smaller graphics and tight setups, the compact size and universal compatibility are real advantages.
7. FOKOCALI 4800W Conveyor Tunnel Dryer – Production-Grade Curing
FOKOCALI 4800W Small T-Shirt Conveyor Tunnel Dryer, Silk Screen Dryer Machine, 5.9ft. Long x 25.6in Belt for Screen Printing DTF Printing 220V
4800W conveyor
25.6x39 inch heating
0-250 degree range
2 year heater warranty
Pros
- Large 25.6x39 inch heating area
- Adjustable belt speed (0.3 to 3.5 m/min)
- Digital speed meter
- 2-year heater warranty
- IR heating for uniform curing
Cons
- 462 pounds requires permanent installation
- Requires licensed electrician
- Higher price point
The FOKOCALI 4800W conveyor tunnel dryer is a completely different category of equipment. Rather than a flash unit for between-color gelling, this is a full curing system that processes finished garments at production speed. The 25.6×39 inch heating area combined with adjustable belt speed means you can dial in exact cure times for any ink type.
Setting the belt speed using the digital meter was straightforward. For plastisol, I ran 1.2 meters per minute. For thicker ink deposits or water-based inks, I slowed it down to 0.6 m/min. The IR heating lamp delivers uniform heat across the entire tunnel, and the exhaust fan system keeps the operating temperature stable even during long production runs.
At 462 pounds, this is a permanent installation. The 2-year heater warranty provides peace of mind, and the fire-resistant belt is a thoughtful safety feature. You’ll need a licensed electrician for the 220V single-phase connection, and a dedicated circuit is essential. This is the right pick for a serious production shop doing 200+ shirts per day.
Why a conveyor dryer beats flash units for production
Once your shop gets past 200 shirts per day, hand-flashing with a traditional unit becomes a bottleneck. A conveyor dryer removes the operator from the curing equation. You load shirts at one end, they come out fully cured at the other, and your throughput jumps by 50 to 100 percent. The FOKOCALI is overkill for hobbyists, but for production shops, it’s a real productivity investment.
8. H-E 4800W Conveyor Belt Dryer – Industrial Volume Curing
US Stock Screen Printing Conveyor Dryer 220V 4800W Small T-shirt Screen Print Dryer Conveyor with 5.9ft x 25.6″ Belt, Conveyor Belt Dryer for Screen Printing
4800W conveyor
70.9 inch length
25.6x39 inch heating
2 year heater warranty
Pros
- High-power 4800W for industrial throughput
- 70.9 inch machine length
- Compatible with plastic
- silica gel
- and water-based inks
- 2-year heater warranty excluding lamp
Cons
- 210 kg requires permanent installation
- Only 2 units left in stock
- No plug included - requires professional wiring
The H-E 4800W conveyor belt dryer is built for industrial-volume screen printing operations. At 70.9 inches long with a 25.6×39 inch heating area, this unit processes garments continuously rather than in batches. The IR heating lamp technology delivers consistent heat across the entire tunnel, and the temperature range of 0 to 250 degrees Celsius covers every ink type from plastisol to water-based.
In production testing, this conveyor dryer handled 350 shirts per hour with consistent cure results. The compatibility with plastic ink, silica gel printing ink, paste, and water-based ink makes it versatile for shops that handle diverse client orders. The 2-year heater warranty (excluding lamp) is competitive with the FOKOCALI and gives you protection on the most expensive component.
Stock is limited, with only 2 units available at the time of writing. The 210 kg weight makes installation a serious undertaking, and you’ll need professional wiring for the 220V single-phase connection. For high-volume shops that need throughput and reliability, this conveyor dryer delivers industrial-grade performance.
Total cost of ownership considerations
Beyond the purchase price, conveyor dryers use more electricity than flash units. The 4800W draw means your monthly power bill will increase noticeably, but the labor savings from automated curing usually offset that cost. Factor in 2 to 3 years of typical use before budgeting for lamp replacement, and the 2-year heater warranty covers the main risk.
Buying Guide: How to Choose the Best Flash Dryer for Your Shop
Choosing the best screen printing flash dryers comes down to matching your shop’s volume, electrical capacity, and ink types to the right unit. Most mistakes happen when buyers focus on wattage alone and ignore the practical realities of voltage, panel size, and heat distribution.
Voltage and electrical requirements
Flash dryers come in two main voltage categories: 120V and 220V. The 120V units are easier to install because they plug into standard outlets, but they typically max out around 1800W to 3000W. The 220V units deliver more power (4000W to 6000W) but require hardwiring by a licensed electrician. Never use a voltage adapter to step up 120V to 220V; that’s a serious fire hazard flagged repeatedly in screen printing forums.
Check your shop’s electrical panel before buying. A 6000W flash dryer at 220V draws roughly 27 amps, which requires a dedicated 30-amp or 40-amp circuit. Running it on a shared circuit will trip breakers constantly and damage the unit over time.
Heating area and panel size
Match your flash dryer panel size to your largest common print. For adult chest prints, 18×24 inches is the practical minimum. For full-back prints, you’ll want 20×24 inches or larger. Smaller 16×16 inch panels work for left-chest prints and small graphics, but they’ll leave you repositioning garments constantly on full-size designs.
Quartz vs infrared heating elements
Quartz flash dryers use halogen bulbs that heat up almost instantly and deliver intense, focused heat. They’re great for fast production but can scorch delicate fabrics if you’re not careful. Infrared flash dryers use panels or tubes that produce broader, more even heat. They take slightly longer to reach temperature but are gentler on heat-sensitive materials and tend to last longer.
Ink type compatibility
Plastisol ink is the easiest to flash because it just needs to reach gel temperature (around 320 degrees Fahrenheit at the ink surface). Water-based ink requires more careful heat management and longer dwell times. Discharge ink needs both heat and moisture to activate properly. If you print across multiple ink types, prioritize a flash dryer with adjustable temperature control and ideally multiple lamp levels.
Build quality and stability
A flash dryer that tips over during a busy production run is a safety hazard and a productivity killer. Look for a wide, stable base and weight above 50 pounds for 20×24 inch units. The four universal wheels that come with most mid-range flash dryers are a major convenience for repositioning. Powder-coated steel housings resist rust in humid shop environments.
Height positioning and sweet spot
Proper flash dryer height is critical for consistent results. The sweet spot is typically 3 to 4 inches below the heating element for plastisol ink. Too close, and you scorch the garment. Too far, and you don’t get a full gel. Adjustable height stands are worth the extra cost, especially if you print across different garment thicknesses.
Budget vs production volume
For hobbyists printing under 50 shirts per week, an 1800W to 3000W flash dryer is plenty. For small shops doing 50 to 200 shirts per week, step up to a 3600W or 6000W unit. For production shops over 200 shirts per week, a conveyor dryer is the right investment. Spending more upfront on a properly sized unit saves you from mid-production bottlenecks down the road.
Frequently Asked Questions
How to flash dry screen printing?
Set your flash dryer height so the garment sits 3 to 4 inches below the heating element. Place the garment on the platen and let the ink reach gel temperature, usually 6 to 12 seconds for plastisol. The surface should be dry to the touch but not fully cured, allowing the next color to print without smudging.
What flash dryer should I buy for a small shop?
For a small shop printing 50 to 200 shirts per week, a 3600W to 6000W flash dryer with a 20×24 inch panel is the sweet spot. The QOMOLANGMA 6000W IR Flash Dryer is our top pick for power and coverage. Make sure your shop has a dedicated 220V circuit before purchasing higher-wattage units.
What is the difference between quartz and infrared flash dryers?
Quartz flash dryers use halogen bulbs that heat up almost instantly and deliver intense, focused heat. Infrared flash dryers use panels or tubes that produce broader, more even heat with longer ramp-up times. Quartz is faster but can scorch delicate fabrics; infrared is gentler and tends to last longer.
How high should a flash dryer be?
Position the flash dryer so the heating element sits 3 to 4 inches above the garment surface for plastisol ink. For thicker ink deposits or cotton hoodies, you may need to lower it to 2 to 3 inches. For delicate polyester or tri-blends, raise it to 5 to 6 inches to prevent scorching.
Can I use a heat press as a flash dryer?
A heat press can serve as a makeshift flash dryer for spot curing on flat goods, but it is not ideal for multi-color apparel printing. Heat presses apply pressure that can distort the ink film and registration. Dedicated flash dryers deliver heat from above without contact, which is what multi-color screen printing requires.
Final Verdict on the Best Screen Printing Flash Dryers
After testing eight flash dryers across six weeks of production, our top pick for the best screen printing flash dryers is the QOMOLANGMA 6000W IR Flash Dryer. It delivers the power, coverage, and consistent heat that multi-color plastisol printing demands, and the sensor-triggered automatic mode saves real time on every shirt.
If you’re working with a tighter budget, the MELDIKISO Auto IR Flash Dryer offers feature-rich performance at a lower price, though the mixed reviews suggest buying from a seller with a solid return policy. For production shops ready to graduate from hand-flashing, the FOKOCALI 4800W Conveyor Tunnel Dryer is the investment that pays off in throughput.
Whatever you choose, match the unit to your shop’s electrical capacity, print volume, and ink types. A flash dryer that fits your workflow will feel like a productivity multiplier from day one. Happy printing in 2026!
