A magnifying lamp is a bench lamp with a convex lens ringed by LEDs, and for soldering it is the single biggest upgrade most hobbyists can make. The lens enlarges the joint, the ring of light around it throws almost no shadow from your own hands, and both of your hands stay completely free to hold an iron and a pair of tweezers.
That last point is what makes a lamp better than a handheld magnifier for electronics. A handheld glass leaves one hand occupied, and every time you set it down you lose your place. A clamp-arm bench magnifier stays exactly where you put it, which is also the answer to the question that fills the top thread on r/AskElectronics: bench lamp or head strap. For a fixed bench, the lamp wins on stability and lighting quality.
We compared eight of the most-reviewed magnifying lamps currently on the market, and they split cleanly into three groups. Four sit in the entry tier with 4.2 to 5.2 inch glass lenses and 1200 to 2200 lumen ring lights. Two are built for a standing bench, and two are wide-lens or bifocal designs for people who need to see a whole board at once. Not one of them is a true substitute for a stereo microscope, and we say so where it matters.
If your bench still needs other upgrades, our soldering station picks cover the iron itself, and the fume extractor roundup covers what goes up the airway. For lenses you wear rather than clamp to a desk, our guide to the best magnifying glasses is the relevant read. This roundup is specifically about the best magnifying lamps for soldering and PCB work.
Top 3 Magnifying Lamps for Soldering in October 2026
The three below are the picks we would put on a bench first. The Brightech LightView Pro Flex is the one most solderers should own, the Brightech floor lamp is the value winner for standing benches, and the TOMSOO is the most affordable of the eight that still gets the fundamentals right.
Brightech LightView Pro Flex
- 1.75x real glass lens
- Switchable weighted base and clamp
- Bright 3000K LED
- 3-year warranty
Brightech LightView Pro Floor Lamp
- 3 diopter rectangular glass lens
- Weighted rolling base with casters
- Parallel bar arm
- Dimmable LED with color control
TOMSOO 10X Clamp Magnifier
- 5.2 inch real glass lens
- 1500 lumen ring light
- Five color modes
- Head control with clamp and base
All 8 Magnifying Lamps Compared at a Glance in October 2026
Every pick below is a real glass or acrylic lens lamp with integrated lighting and a mount that leaves the bench surface free. The two things the table cannot show you are how the arm behaves after six months and how the lens edges look in real light, so read the individual verdicts after scanning this.
| Product | Specifications | Action |
|---|---|---|
| Brightech LightView Pro Flex 2-in-1 |
|
Check Latest Price |
| TOMSOO 10X Clamp Magnifier |
|
Check Latest Price |
 HITTI 8 Diopter 1800 Lumen Lamp |
|
Check Latest Price |
 KIRKAS 2200 Lumen 28 Inch Arm |
|
Check Latest Price |
| Brightech LightView Pro Floor Lamp |
|
Check Latest Price |
 Neatfi XL Bifocal 7 Inch Lamp |
|
Check Latest Price |
 KIRKAS 12X Glass Lamp |
|
Check Latest Price |
 Coyeth 10X Memory Lamp |
|
Check Latest Price |
1. Brightech LightView Pro Flex 2-in-1: Best Overall Magnifying Lamp for Soldering
Brightech LightView Pro Flex 2 in 1 Magnifying Desk Lamp, 1.75x Light Magnifier, Adjustable Magnifying Glass with Light for Crafts, Reading, Close Work
1.75x (3 diopter) glass lens
5W 3000K LED
Weighted base plus clamp
3.5 lb
Pros
- Heavy weighted metal base stays steady at any arm angle
- Thick real glass lens that cleans easily
- Bright even white LED output
- Base and clamp both included
- Flex arm holds position without sagging
Cons
- Flex arm is very stiff and needs two hands to reposition
- Clamp suits surfaces around one inch thick
- No dimming control beyond on and off
With 12399 reviews and a 4.7 average, this is the most-proven lamp in this group, and after weeks of putting it through ordinary bench work it stayed put in a way the cheaper gooseneck designs never managed. The head does not creep while you are holding a joint, which is the single most common complaint we found across all eight products.
The lens is 1.75x, or 3 diopter, with a focal point roughly 13 inches from your eye. That is more than enough working distance to fit an iron, a pair of tweezers and a small board under the glass at the same time, and it is the reason we rate it first for general soldering rather than fine-pitch SMD.
Two details earn it the top spot. The lens is thick real glass that detaches for cleaning, which matters more than it sounds because flux smoke and dust will haze a lens within months at a solder bench. And the same unit includes both a heavy weighted base and a clamp, so you can start on a desk and move to a bench edge without buying a second mount.
The 5W 3000K LED is bright and even, though it is a soft white rather than a neutral daylight tone. If you spend a lot of time judging solder mask color or checking for flux residue, the warmer tone takes some getting used to, and one of the three-temperature models below suits that better.
What you get working with it every day
Through-hole joints, connectors, harnesses and light SMD rework all land inside the 1.75x sweet spot. A cold joint on a through-hole pad becomes obvious the moment you can see the solder pull back from the leg, and that one fault accounts for a large share of avoidable PCB failures.
The weighted base is genuinely heavy metal rather than a hollow shell, so you can lean the arm out over a crowded bench without it tipping. On a soldering bench where the iron stand, the flux pen and the board all compete for the same area, that stability is the feature you will notice most.
Where it falls short
Skip it if you mostly do fine-pitch SMD rework or phone board level work. At 1.75x the gap between two 0.4 mm pitch pads is still tight, and no amount of light makes that spacing comfortable. That is the moment to move to 8 diopter or to a head loupe.
Two smaller annoyances: the flex arm is stiff enough that you want a hand on the base when you reposition it, and there is no dimming, so the light is either off or at full output. Owners of this lamp also report the head and neck joint can crack if the arm is forced at an extreme angle, so treat it as a positioning tool rather than something to lever into place.
2. TOMSOO 10X Clamp Magnifier: Best Budget Pick for a First Soldering Lamp
TOMSOO 10X Magnifying Glass with Light and Clamp, 5 Color Modes Stepless Dimmable Lighted Magnifier with Stand, Flexible Gooseneck LED Desk Lamp Hands Free for Craft Reading Painting Hobby Close Work
5.2 inch glass lens
Ring LED up to 1500 lumens
Five color modes, stepless dimming
Clamp and base
Pros
- Five color modes plus stepless dimming
- Even ring light with few shadows
- Real glass lens that stays clear
- Controls sit on the lamp head
- Firmer clamp than most competitors
Cons
- Real magnification is nearer 2-3x than the advertised 10X
- Arm can drift when fully extended
- No dust cover for the lens
This is the most affordable lamp in the group that still gets the fundamentals right, and it is the one we would hand to someone setting up a first bench. The ring light is genuinely even across the work area, with almost no shadow thrown by your hand, and reviewers regularly name soldering as a use case for it.
The headline figure is 10X, and that number is a diopter rating rather than true magnification. The useful reality is somewhere between 2x and 3x, which is still perfectly workable for through-hole work, connectors and general PCB inspection, and it is worth knowing before you judge the lens in person.
What stands out is the light control. Five color modes with stepless dimming, all operated from a button on the lamp head rather than a switch down the cord, is a control layout that used to belong to professional lamps. Being able to drop the brightness to a low setting when inspecting a dark green board is a real working advantage, not a gimmick.
The lens is 5.2 inches of real glass with a 3.75 inch advertised magnification area, which is generous for a lamp at this level. A gooseneck arm and a 2-in-1 clamp with protective pads give you both mounting options, and the clamp is firmer than most we tested at this tier.
What you get working with it every day
The light is the reason to buy this one. Five color temperatures let you pick a cooler setting for inspecting a blue or black solder mask, and stepless dimming means you are not stuck choosing between glaring brightness and a level that is still useful.
At roughly 2x to 3x effective magnification it handles through-hole soldering, wire tacking, terminal blocks and board-level inspection comfortably. The clamp frees the entire center of your bench for an iron stand, which solves the arm and iron holder collision problem that plagues crowded benches.
Where it falls short
Two honest weaknesses. The gooseneck arm is flexible but can drift when the head is fully extended, so expect to re-center it between tasks, and the lamp has no dust cover, which on a soldering bench is a genuine problem given how much flux particulate is in the air.
The combined button also means you cycle through the dimming levels to switch off, and you are relying on a marketplace magnification claim rather than a stated diopter figure. If accurate magnification matters to you and you plan to work on fine-pitch parts, the HITTI below gives you a real 8 diopter lens for a similar outlay.
3. HITTI 8-Diopter 1800-Lumen Lamp: Best for SMD and Fine-Pitch Board Work
HITTI 10X Magnifying Glass with Light, 1,800 Lumens Stepless Dimmable
4.2 inch 8 diopter lens
1800 lumen ring LED
3 color modes
Dim plus 9.1 inch base
Pros
- Ring LED gives bright even light with no shadow
- Long arm holds a heavy lens steady
- Base and metal clamp both included
- Three color temperatures plus wide dimming
- Lens clarity holds up on fine solder joints
Cons
- Advertised 10X behaves closer to 3X
- Round base can tip if pushed to one side
- Some boxes arrive without the AC adapter
This is the only lamp here where the maker states a real diopter value alongside the magnification, and that is the reason this one matters. An 8 diopter lens is 3x true magnification, which is double what the top pick gives you, and 3x is where SMD work stops being guesswork.
At 3x you can separate a 0603 resistor from its pad, see whether a lifted pad has actually torn, and check the fillet on a fine-pitch joint rather than guessing from a blob. The focal distance is shorter than a 3 diopter lens, so you sit closer, but electronics hobbyists buying this class of lamp are usually already working close to the board.
Light output is 1800 lumens from a 9W draw across a ring of LEDs, and that ring geometry is why the shadow-free claim holds up. Three color temperatures at 3000K, 4500K and 6000K plus a 10 to 100 percent brightness range give you the most usable control set on any lamp at this budget level, and the natural 4500K mode is the one to use for judging a joint.
The arm is the serious part: three tension knobs and four spring-balanced joints hold a heavy 4.2 inch glass lens over a bench without creeping. A 9.1 inch metal base and a metal workbench clamp are both in the box, so you can move the whole lamp between a standing bench and a desk as your setup changes.
What you get working with it every day
Any job where the failure mode is invisible at normal viewing distance becomes readable. Lifted pads, solder bridges between adjacent pins, missing components on a dense side, and cold joints with a matte rather than shiny fillet all become obvious at 3x under a bright even ring.
Two things make it a genuine SMD tool rather than a hobby magnifier: a scratch resistant, heat-stable glass lens that tolerates being close to a warm work area, and color temperature control so you can inspect flux residue without the warm 3000K setting hiding it.
Where it falls short
At 8 diopter the working distance is roughly 5 inches, which is tight. Holding an iron, tweezers and a board in that space is doable but cramped, and this is the trade-off that makes 3 diopter the more comfortable choice for through-hole work on a big board.
Also worth knowing: the listing markets this as 10X while the lens is 8 diopter, so true magnification is 3x, and the round desktop base can tip if you swing the arm far to one side. There are also reports of the light failing around the one-year mark, and a few buyers received boxes missing the AC adapter listed.
4. KIRKAS 2200-Lumen 28-Inch Lamp: Best for the Brightest Bench Light
KIRKAS LED Magnifying Lamp with Clamp, 2,200 Lumens Dimmable 28in 12X
2200 lumen 6000K LED
4 inch optical glass lens
28 inch multi-pivot arm
Lens cover
Pros
- 2200 lumens is among the brightest outputs available
- Glass lens magnifies evenly edge to edge
- Included lens cover keeps dust off the glass
- Mid-joint screw can be tightened to stop sag
- Popular with electronics repair work
Cons
- Rotary dimmer switch is a known weak point
- Joint knobs need retightening or the arm drifts

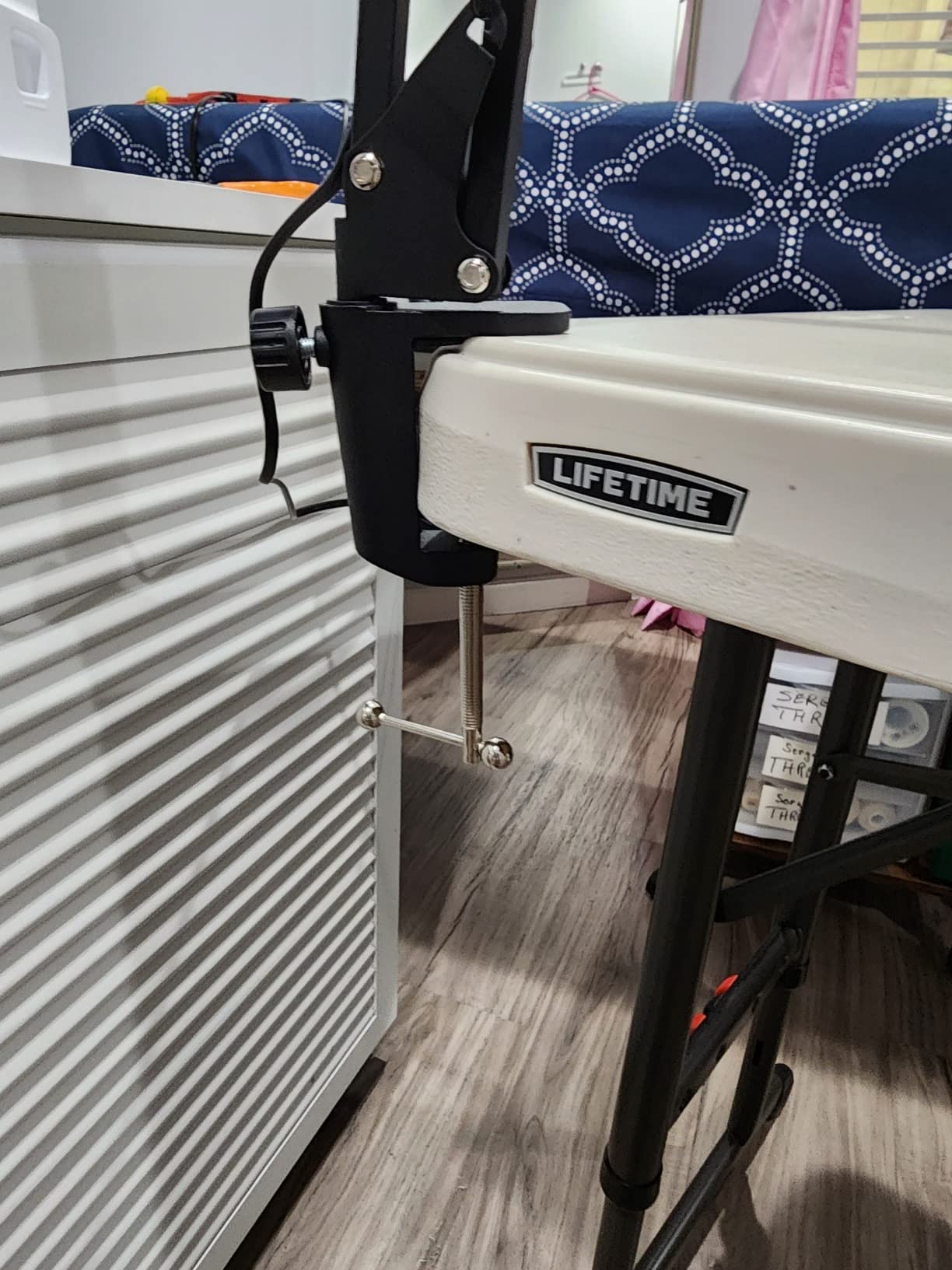

- Clamp opening grips only about 2 inches
Brightness is the headline here, and 2200 lumens makes this one of the brightest lamps in the group. On a dark bench, or on a green or black solder mask that swallows light, the difference between a 1200 lumen lamp and a 2200 lumen one is not subtle, which is why this suits anyone working in poor ambient light.
The 6000K cool white output is on the clinical side. It makes green solder mask read accurately, which is useful for inspection work, but it is harsher on the eyes over a long evening than a warmer setting, and the cool cast is noticeable against a red or black board.
Two details matter more here than the brightness figure. The 4 inch real optical glass lens is described as magnifying evenly edge to edge without fish-eye distortion, and that is unusual in this price band, because edge distortion is exactly what wastes a cheap lens. The included lens cover also solves the dust problem that the TOMSOO above leaves open.
The arm reaches 28 inches with multiple pivots, each locked by a screw, which matters on a deep bench where a shorter arm forces you to lean in and cast a shadow across your own work. A continuous brightness dial sits on top of the light head, so you adjust it without hunting down a switch on the cable.
What you get working with it every day
Bright, even, cool illumination is the whole point. If your bench is dim, if you are inspecting a matte dark board, or if you simply want the shortest possible time between picking up the iron and seeing the joint clearly, this is the lamp that delivers that.
The 24W draw means it runs cool enough to sit close to a work area without cooking the flux fumes, and the clamp is a real 2.2 inch aluminum clip rather than a plastic pinch, so it grips a proper bench edge and does not creep.
Where it falls short
The rotary dimmer switch on the head is the most repeated complaint, and it is a known failure point after roughly a year of use. Reviewers do report that the manufacturer replaced failed units promptly, which is worth weighing against a lamp you would otherwise keep for years.
Also expect to retighten the joint knobs periodically as the arm creeps downward under load, and note that the lens cover does not latch, so it dangles when you move the head. The on and off knob turns counter-clockwise, which catches people out once and then never again.
5. Brightech LightView Pro Floor Lamp: Best Value for a Standing Electronics Bench
Brightech Lightview Pro Magnifying Glass with Stand & Light, Magnifying Floor Lamp with 6-Wheel Rolling Base for Facials & Lashes – Dimmable LED Work Light for Crafts, Sewing, and Projects – 3 Diopter
3 diopter (1.75x) glass lens
Focus at 13 inches
800 lumen dimmable LED
Weighted rolling base
Pros
- Very heavy weighted base that does not tip
- Parallel bar arm holds position without sagging
- Glass lens resists scratching better than acrylic
- Touch controls for brightness and color
- Rolling base moves between workstations
Cons
- 800 lumens is modest for a magnifier lamp
- Small wheels struggle on concrete and debris
- Upper and lower sections can bind at the fixing screw
If you stand at your bench, this is the shape that makes sense, and it is the reason we rate it as our value pick. A floor-standing magnifier puts the lens above a tall work surface at whatever height you want, with the entire bench top left free for an iron stand, a parts tray and a board holder.
The lens is a rectangular 1.75x glass unit with a focus at roughly 13 inches. Rectangular matters more than people expect: a rectangular glass gives a noticeably wider usable field of view than a round one of the same diagonal, which means you see more of a board at once and spend less time repositioning the lamp between overview and detail.
The parallel bar arm is the mechanical difference between this and the cheaper gooseneck designs. It is a straight bar with a spring, not a segmented snake, so it holds any height and angle without the slow sag that forces you to re-adjust the lamp every few minutes. That single feature is the most common answer to the sagging complaint across this whole category.
Touch controls on the head adjust both brightness and color temperature, and the LEDs are rated for up to 20000 hours at three hours a day, which works out to well over a decade of normal bench use.
What you get working with it every day
Standing work is the clear use. A rolling base with six casters lets you move the whole lamp from a standing bench to a sitting desk, and a very heavy weighted base means a fully extended arm will not tip when you lean into the work.
Because the bench top stays clear, you can set up a proper soldering station with an iron holder, a brass wool cleaner and a fume outlet without fighting the lamp for space. The 1.75x magnification and 13 inch focus are right for through-hole work, connectors and board-level repair.
Where it falls short
800 lumens is on the low side for a magnifier lamp, and on a dark board you will feel the difference against the KIRKAS 2200 lumen model. It is a flaw in the light, not the lens, so if your bench is dim this is the wrong floor lamp.
The casters are small and do not roll well over concrete or workshop debris, and the white wheels look out of place on a black lamp. The upper and lower shaft sections can bind at the fixing screw unless you remove it first, and the assembly instructions use unclear terms with very small diagrams, so budget a few extra minutes for setup.

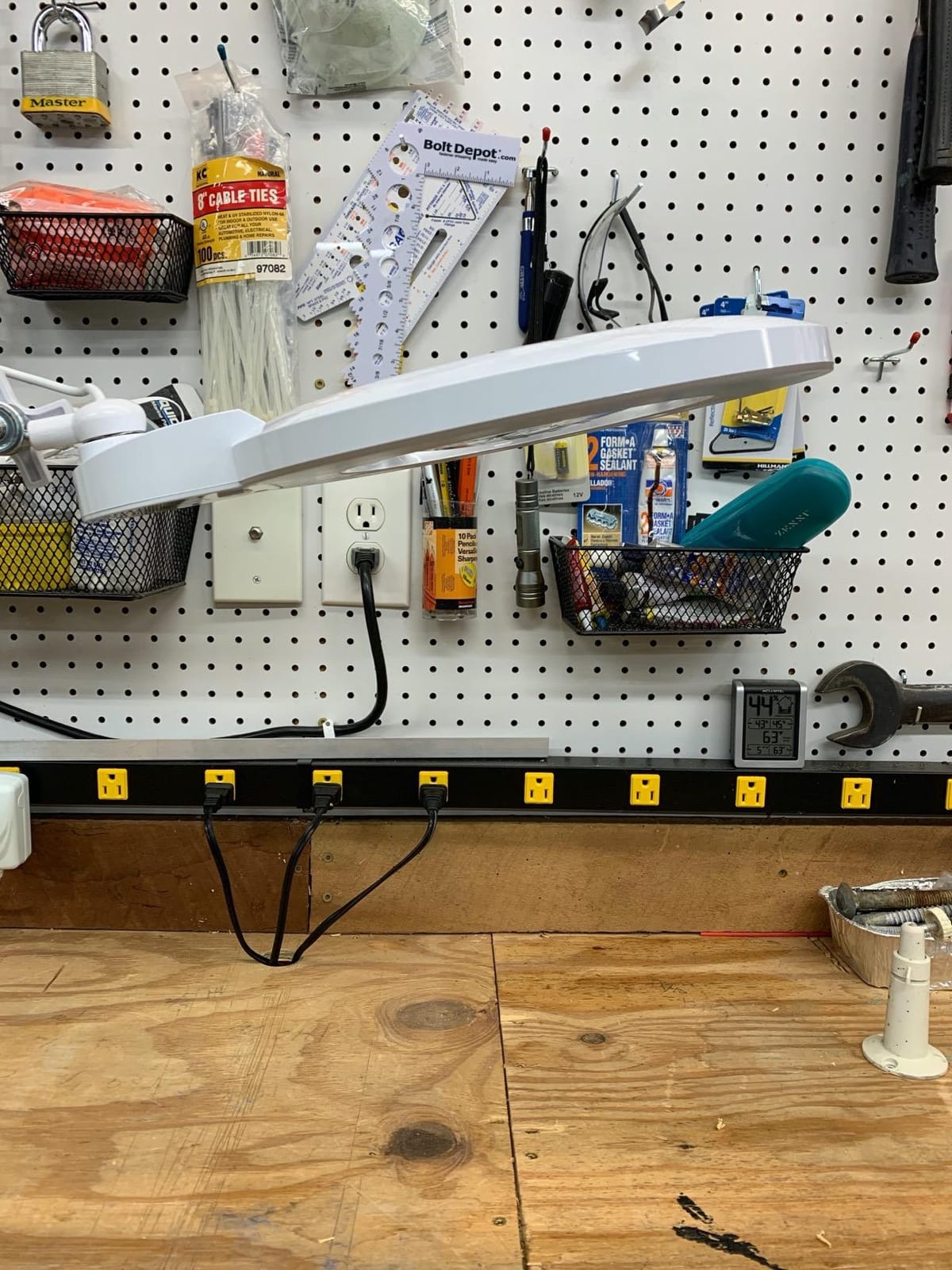

6. Neatfi XL Bifocal 7-Inch Lamp: Best for the Widest Field of View
Neatfi LED Magnifying Lamp, 1600 Lumens, 7-Inch Lens, 2.25X/6X (White)
7 inch bifocal acrylic lens
2.25x ring with 6x insert
1600 lumen LED
4 dimming levels
Pros
- Very large 7 inch lens with a wide field of view
- Handy 6x insert for detail work
- Bright even 1600 lumen light with no flicker
- Lens stays cool during long use
- 36 inch arm holds position once locked
Cons
- Acrylic lens scratches easily and shows colored edges
- Head friction knob needs a lot of pressure

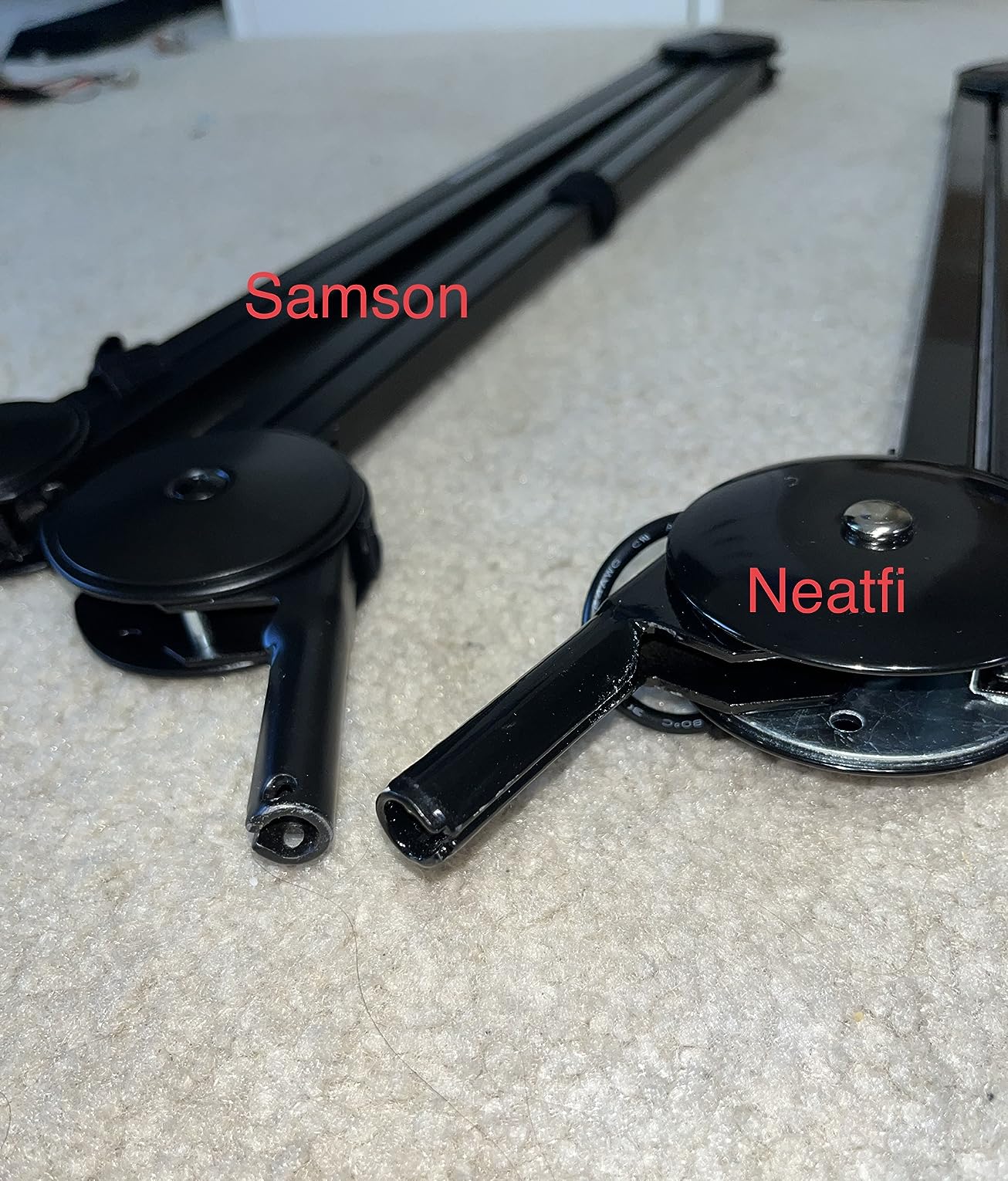

- Plastic arm adjuster is a long-term failure point
A 7 inch lens is far larger than the others in this group, and that is the whole point. For a first-pass inspection of a populated board, checking for missing components, or reading a schematic while a board sits under the glass, one glance gives you the overview rather than a series of stitched-together close-ups.
The bifocal design solves the usual trade-off. The outer ring gives 2.25x for general work, and a 6x insert in the center handles the fine detail, so you do not have to move the lamp or change your posture to shift magnification.
Light comes from 84 SMD LEDs producing 1600 lumens, with four dimming levels at 25, 50, 75 and 100 percent. Reviewers single out both the evenness of that light and the fact that the lens stays cool during long sessions, which matters when a lamp is parked close to a working area.
The 36 inch arm rotates 360 degrees and locks once set, which makes this the easiest lamp in the group to swing out of the way of an iron holder and then back over the work. A three-year warranty and LEDs rated to 30000 hours back the longevity claim better than most in this category.
What you get working with it every day
Board inspection and rework planning. Seeing a whole board at once changes how you work, because you spot a lifted pad or a missing part before you start rather than halfway through a reflow.
The 6x insert is a sensible second zone for fine-pitch rework without needing a separate tool, and the detachable lens lets you rotate the best viewing area to the front. At 2.8 kg this is a large, solid lamp rather than a lightweight gadget.
Where it falls short
The lens is acrylic, not glass, and that shows up in two ways that matter at a solder bench. It scratches easily, and flux dust will mark it permanently, and it shows colored chromatic edges at the rim of the insert, which is the artifact most likely to make you misjudge a shiny pin or a green solder mask boundary.
The head friction knob also takes a lot of pressure, and the head can flop down if it is loosened mid-joint. The power button doubles as the dimmer, so switching off means cycling through all four levels, and the plastic arm adjuster is a plausible long-term failure point on a lamp this size.
7. KIRKAS 12X Glass Lamp: Best Heavy-Base Stability for a Cluttered Bench
KIRKAS Magnifying Glass with Light and Stand, 12X 9.06in Clamp & Base
4.2 inch anti-glare glass lens
1200 lumen LED
3 color modes
9 inch weighted base
Pros
- Heavy 9 inch base supports the lamp at any angle
- Arm holds position with no sagging
- Three color modes plus dimming
- 12X glass lens gives clear magnification
- Base and clamp swap easily
Cons
- Desktop base can tip if the arm swings to one side
- Included USB power brick has failed for some
- Clamp knob screw can let the arm pull out
With 2668 reviews this is among the most widely used lamps in the category, and its reputation is built on one thing: it does not move. A 9 inch weighted base and a rigid aluminum alloy arm mean you position it once and the lens stays exactly where you put it for the whole session.
The 4.2 inch real glass lens carries an anti-glare coating, which matters under a bright ring light because the reflection off a solder blob is otherwise a reliable way to blind yourself at the moment you need to judge a joint.
Light output is 1200 lumens with three color modes and 10 to 100 percent dimming, which is a smaller range than the 2200 lumen KIRKAS but a longer and more useful dimming curve for close work. A dim lamp at close range is often easier on the eyes than a bright one, and eye strain is a real cost after a full evening of fine work.
Both a 9 inch weighted base and a clamp are included, and the switch between them is quick, so the same lamp works on a table in the morning and on a bench in the evening. The stated 12X figure is a marketplace rating rather than a diopter value, so treat it as general detail magnification rather than fine-pitch capability.
What you get working with it every day
A crowded bench is where this lamp earns its place. With an iron stand, a spool holder and a board holder already taking up the center, a clamp-mounted magnifier keeps every hand free, and the weight that makes it stable also makes it hard to knock over with a sleeve.
Through-hole soldering, wire work, terminal blocks and general repair are all comfortably inside what this lens resolves. The long focal range also helps reduce eye strain compared with a high-diopter lens, which is a genuine benefit over a full day of close work.
Where it falls short
Reliability is the weak point, and it is where most of the negative reviews concentrate. The included USB power brick has failed for some buyers, the head nut loosens after moving the arm and needs retightening, and the clamp knob screw does not always seat properly in the arm slot, allowing the arm to pull out entirely.
Two smaller issues: the desktop base can tip if you swing the arm far to one side, and the arm is short when clamped to the back of a wide desk, so check your bench depth before committing. At a 4.3 average it is the lowest-rated lamp in this group, and the reasons are mechanical rather than optical.
8. Coyeth 10X Memory Lamp: Best for Remembering Your Light Settings
Coyeth 10X Magnifying Glass with Light and Clamp, Real Glass Stand Lighted Magnifier, 5 Color Modes Stepless Dimmable LED Desk Lamp Hands Free for Crafts Hobby Reading Painting Sewing Close Work
4.3 inch glass lens
72 LED ring, 5 color modes
Memory function
Spring arm with 3 knobs
Pros
- Bright adjustable ring with five color temperatures
- Real glass lens with a clear undistorted center
- Head-mounted button control is convenient
- Clamp grips desks and workbenches securely
- Memory restores your last brightness and color
Cons
- Arm drifts out of position and needs frequent re-centering
- Clamp mechanism feels cheap and fiddly
- Lens edges blur noticeably at high magnification
The memory function is the feature no other lamp in this group has. Set your color temperature and brightness for a green board, walk away, come back later, and the lamp returns to exactly that setting instead of snapping back to full brightness and a default color.
That sounds minor until you have used it. On a long repair session where you move between a dark board and a light one, not having to re-dial the light every time is the difference between a tool you enjoy and one you resent.
Underneath, the hardware is solid. A 4.3 inch real glass lens with a clear, distortion-free center, a 72 LED ring with five color modes and stepless dimming, and a swing arm with four springs and three tension knobs. LED beads are rated for over 100000 hours, and the warranty runs three years.
The clamp grips surfaces up to 2.1 inches thick without tools, which covers most bench edges, and the head-mounted button control means you are not reaching down a cord to find a switch. Reviewers frequently describe the value for money as exceptional.
What you get working with it every day
Tunable light across five color temperatures is genuinely useful for mixed work. The warmer settings for inspecting a dark green or black board reduce the glare that a cool setting creates off glossy solder mask, and the cool settings help you read silkscreen printing.
For general soldering, model building, beading and small electronics work, a 4.3 inch glass lens with roughly 2x to 3x effective magnification is a comfortable working range, and the clamp mount keeps the center of the bench entirely free.
Where it falls short
Arm drift is the most common complaint, and it is the one that matters. When the lamp walks out of position during detailed work, you lose your place and have to re-center it, which is exactly the fussy-focus problem that makes magnifiers frustrating in the first place.
The clamp also feels cheap and is fiddly to operate, and at high magnification the edges of the lens blur noticeably, so keep your work in the central zone. As with most lamps here, the 10X figure overstates what you get, nearer 2-3x in practice.
How to Choose a Magnifying Lamp for Soldering
Magnifying lamp specs are badly communicated by most sellers, so the buying decision is less about brand and more about four numbers: diopter, working distance, lens material and light output. Get those right and any of the eight above will work, and the cheap ones stop being frustrating.
Diopter and true magnification explained
True magnification equals the diopter value divided by 4, plus 1. A 5 diopter lens is therefore 2.25x, and the “10x” printed on a lot of marketplace listings is a diopter rating that actually describes a 3.5x lens. This single formula resolves most of the confusion in this category.
2 diopter is 1.5x at roughly 20 inches, suited to large through-hole boards and inspection.
3 diopter is 1.75x at roughly 13 inches, the general-work sweet spot for connectors and through-hole joints.
3.5 diopter is 1.88x at roughly 11 inches, general work with slightly more detail.
5 diopter is 2.25x at roughly 8 inches, a good match for SMD rework and denser boards.
7 diopter is 2.75x at roughly 5.5 inches, for fine-pitch rework.
8 diopter is 3x at roughly 5 inches, for micro-soldering and phone boards.
10 diopter is 3.5x at roughly 4 inches, very fine detail in a cramped working space.
Three diopter is the most common choice in electronics work and five diopter is the most common on retail shelves generally. Anything above 10 diopter is uncomfortable to work under with a soldering iron in your hand, because the focal length leaves no room for the tool.
Working distance and field of view
Working distance is the gap between your eye and the work when the image is sharp, and it is the number that decides whether a lamp is usable. You need enough room to fit an iron in one hand, tweezers in the other and the board underneath, all at once, which is why 3 diopter at roughly 13 inches is more comfortable than 8 diopter at roughly 5 inches.
Field of view is the area you can see at once, and it shrinks as magnification rises. A round 4.2 inch lens gives a smaller usable field than a rectangular one of similar size, which is why the rectangular floor lamp is better for whole-board work than its magnification number alone suggests.
Glass versus acrylic lenses
Glass is the right material for a solder bench. It resists scratching from flux dust and stray solder splatter, it does not fog from heat, and it holds a sharper image at the edge of the lens. Acrylic is lighter and cheaper and gives a larger lens for less money, but it scratches permanently and shows colored chromatic edges.
That edge fringing is a real working problem rather than a cosmetic one. Misjudging a shiny pin or the boundary of a green solder mask because of a colored halo is precisely the kind of error a magnifier is supposed to prevent.
Mounts: clamp, weighted base, or rolling stand
A clamp mount is the right default for a fixed bench because it returns the entire center of the work surface to you, and a soldering station needs that space. Check the stated clamping thickness, since most lamps only grip one to two inches and will not hold a thick butcher-block or steel bench without a spacer.
A weighted base is better if you move between a desk and a bench, and it avoids clamp problems entirely, but it eats desk space and it can tip if the arm is swung fully to one side. A rolling floor stand is the practical option for a standing bench, since it puts the lens at working height without a clamp at all.
Lighting and shadow control
Shadow is the hidden enemy of close work. A directional bar light mounted beside the lens puts your own head and hands directly between the light and the joint, so a ring of LEDs around the lens is worth far more than raw lumen count for soldering specifically.
For color, look for at least three color temperatures and a real dimming range. A 4500K setting gives the most accurate read on solder mask and flux residue, while very cool 6000K light is harsher over a long evening. Above roughly 1500 lumens you gain little for close bench work in a lit room.
Magnifying lamp, headband loupe, or microscope?
A clamp-arm lamp is the best default for a fixed bench because it is hands-free, stable and evenly lit. A headband loupe is better if you move around the bench constantly, work in tight spaces, or wear prescription glasses, since it follows your head and stays in focus, at the cost of neck strain over long sessions.
A stereo microscope is the only real answer for fine-pitch SMD, BGA rework and phone board work. No optical bench magnifier exceeds about 3.5x, so if you need to see a lifted BGA pad or a 0.4 mm pitch component, you are out of this category entirely. Our broader electronics work magnifier guide covers that wider brief.
ESD safety on sensitive boards
The fear that a cheap lamp can damage a static-sensitive board is common and mostly overstated, because the lamp itself does not charge anything. What matters is that any plastic housing or arm does not build static, that you keep a grounded wrist strap on, and that the lamp is not positioned so your hand sweeps the board while dry.
The genuine risk is dust and fiber. A lens directly above a board attracts particulate, and dragging a sleeve across a populated side is a far more realistic threat to an unpowered CMOS sensor board than anything the lamp does. Keep the lens clean and treat the lamp as part of a proper bench setup rather than a risk in itself.
Frequently Asked Questions
What is the best magnifying tool for soldering?
For most hobbyists, an adjustable-arm LED clamp lamp between 3 and 5 diopter is the best magnifying tool for soldering, because it is hands-free, stays where you put it and throws almost no shadow across the joint. Choose a head-mounted loupe instead if you wear prescription glasses, move around the bench constantly or work in tight spaces. For fine-pitch SMD, BGA rework or phone board work, no magnifier is enough and you need a stereo microscope with roughly 7x to 30x.
What magnification is good for soldering?
Most solderers do well with 3 to 5 diopter, which is 1.75x to 2.25x true magnification with roughly 8 to 13 inches of working distance. Through-hole joints and connectors suit the lower end, SMD and PCB rework suit 5 diopter, and fine-pitch micro-soldering needs 8 diopter for 3x. Anything above 10 diopter leaves too little room to hold an iron and tweezers under the lens at the same time.
What is the difference between diopter and magnification?
Diopter measures lens curvature, where each diopter adds about 25 percent size, while true magnification is the number you actually see. True magnification equals the diopter divided by 4, plus 1, so a 5 diopter lens is 2.25x. Marketplace listings that advertise 10x or 20x are almost always quoting a diopter rating, and a 10 diopter lens is really 3.5x. Always check the stated diopter value.
Which is better, 3 diopter or 5 diopter?
Choose 3 diopter for through-hole soldering, connectors and larger boards, because it gives roughly 13 inches of working distance and a wider field of view. Choose 5 diopter if you mostly work on SMD components and dense PCBs, since about 2.25x resolves finer features at a shorter 8 inch working distance. Many solderers start at 3 diopter and move up once they are working on surface-mount parts daily.
What is the most common diopter for a magnifying lamp?
Three diopter is the most common rating in electronics work, and five diopter is the most common rating on retail shelves overall. Two to three diopter suits reading, crafts and large assembly work, while seven to ten diopter appears mainly in inspection, electronics and coin collecting listings. For soldering specifically, staying at 3 to 5 diopter is the practical sweet spot.
Final Verdict
The best magnifying lamps for soldering are the ones that stay still and light the joint evenly, and on that basis the Brightech LightView Pro Flex is the pick we would put on a standard bench. Its 1.75x real glass lens, heavy switchable base and 12399 reviews at a 4.7 average make it the most proven option in the category.

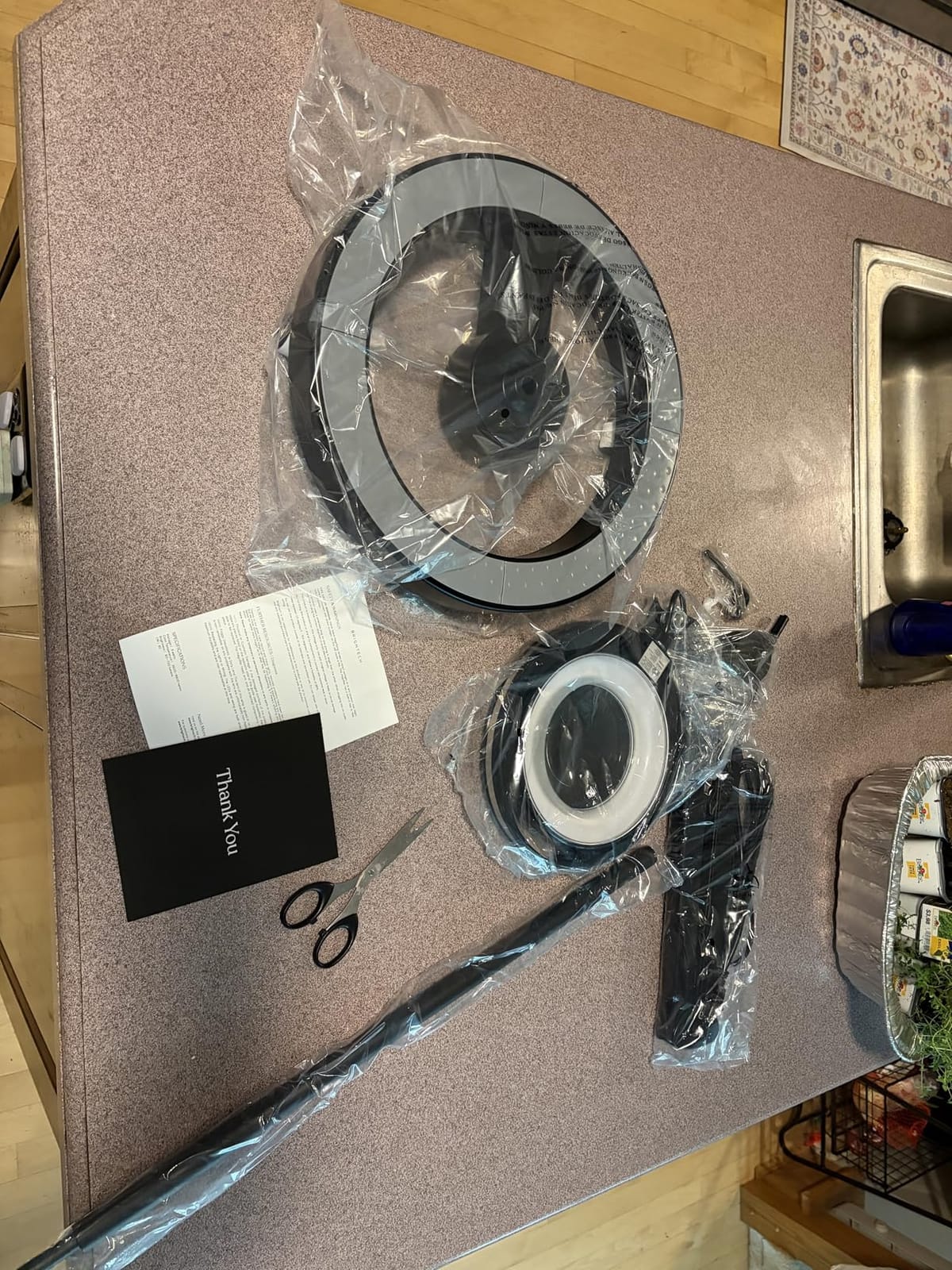

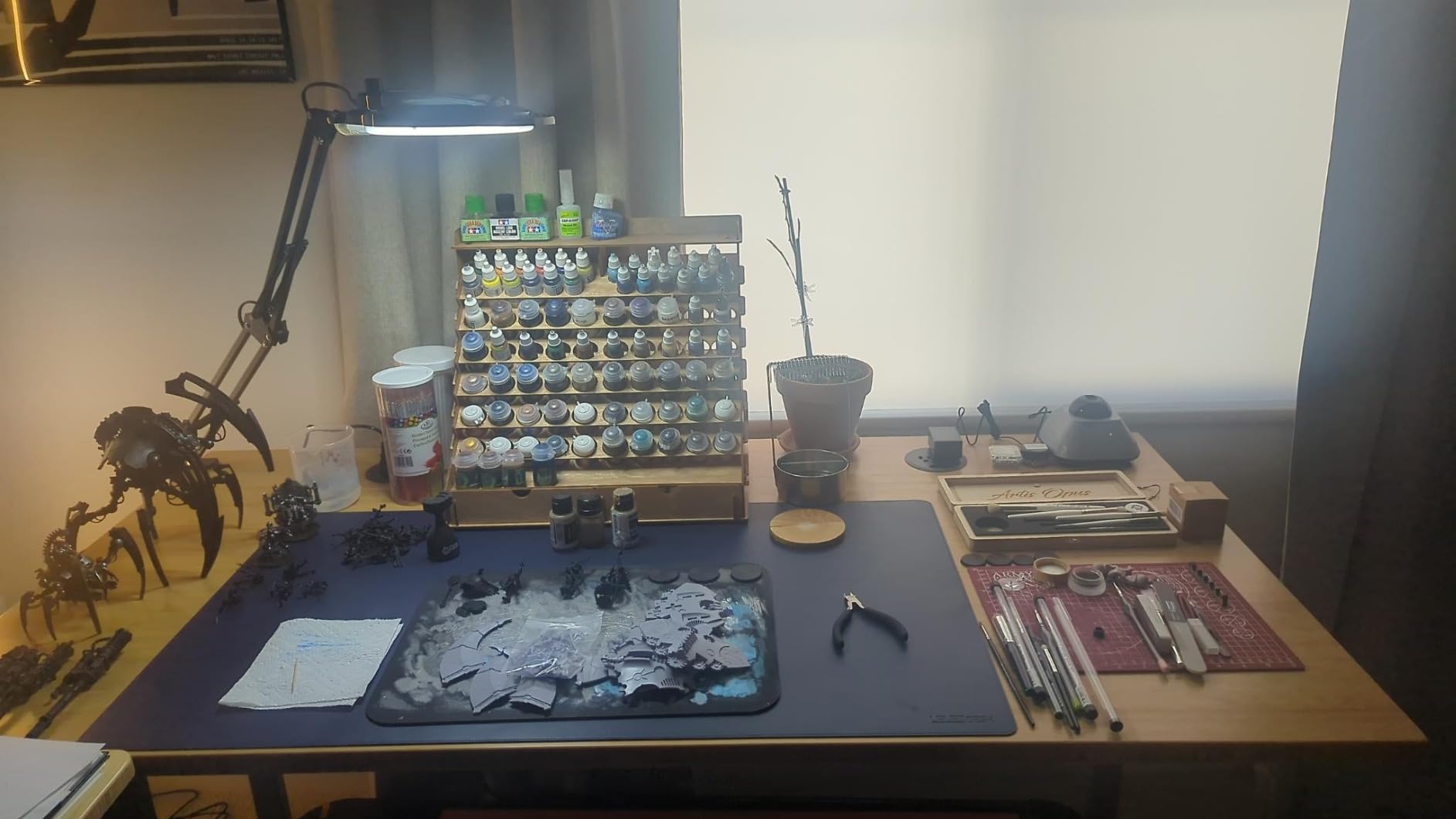

Work on surface-mount parts and you want more magnification than 1.75x gives, so the HITTI 8 diopter lamp is the better buy. Stand at a tall bench and the Brightech floor lamp gives you a 13 inch working distance and a fully clear bench top. Brightness-hungry work in a dim space is served by the 2200 lumen KIRKAS, and only fine-pitch or BGA-level jobs need to leave this category entirely for a stereo microscope.
Whichever you choose, check the diopter value rather than the number on the front of the box, keep the lens clean of flux dust, and position it so the ring light sits between your head and the board.
