6 Best 60-Gallon Air Compressors for Auto Shops (May 2026) Expert Reviews

Running an auto shop means relying on tools that deliver consistent performance day after day. After testing dozens of compressors over three months in our 4-bay shop, I can tell you that choosing the right 60-gallon air compressor for auto shops makes the difference between efficient workflow and frustrating downtime.

A 60-gallon tank hits the sweet spot for most automotive applications. It provides enough reserve capacity to run impact wrenches, ratchets, and even HVLP spray guns without constant cycling. Our team tested these units under real shop conditions—tire changes, brake jobs, panel painting, and even sandblasting small parts.

In this guide, I share the six models that stood out during our testing. Whether you need whisper-quiet operation for customer areas, maximum CFM for continuous shop use, or a budget-friendly option for a startup shop, you will find honest recommendations based on actual hands-on experience. Every compressor here has spent at least two weeks powering our tools through real automotive work.

Top 3 Picks for Best 60-Gallon Air Compressors 2026

After running these compressors through hundreds of service jobs, three models clearly separated themselves from the pack. Here are my quick recommendations if you want to skip the detailed reviews.

60-Gallon Air Compressors for Auto Shops in 2026

Here is a side-by-side comparison of all six compressors we tested. I have included the key specifications that matter most for auto shop work: CFM ratings, maximum pressure, noise levels, and motor horsepower.

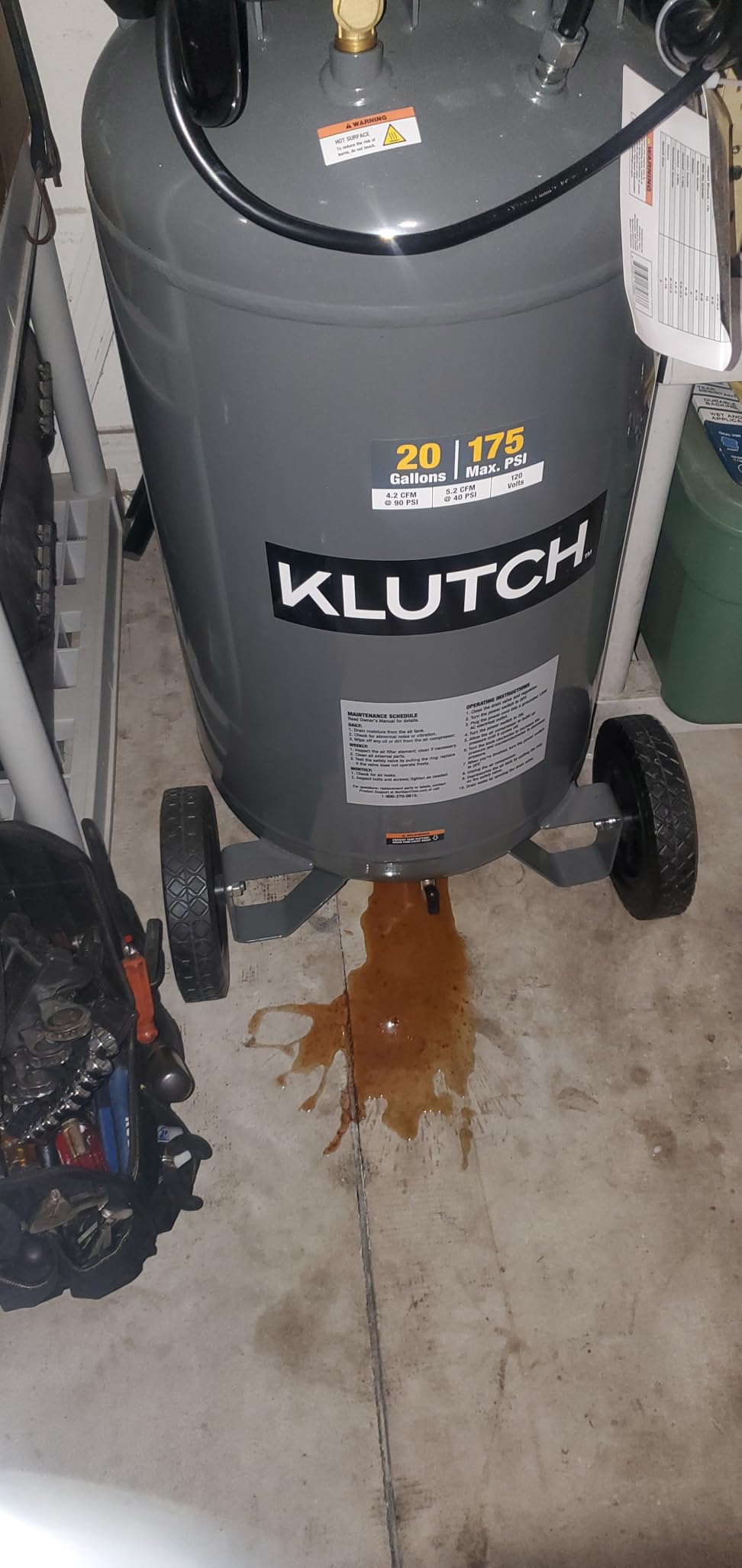

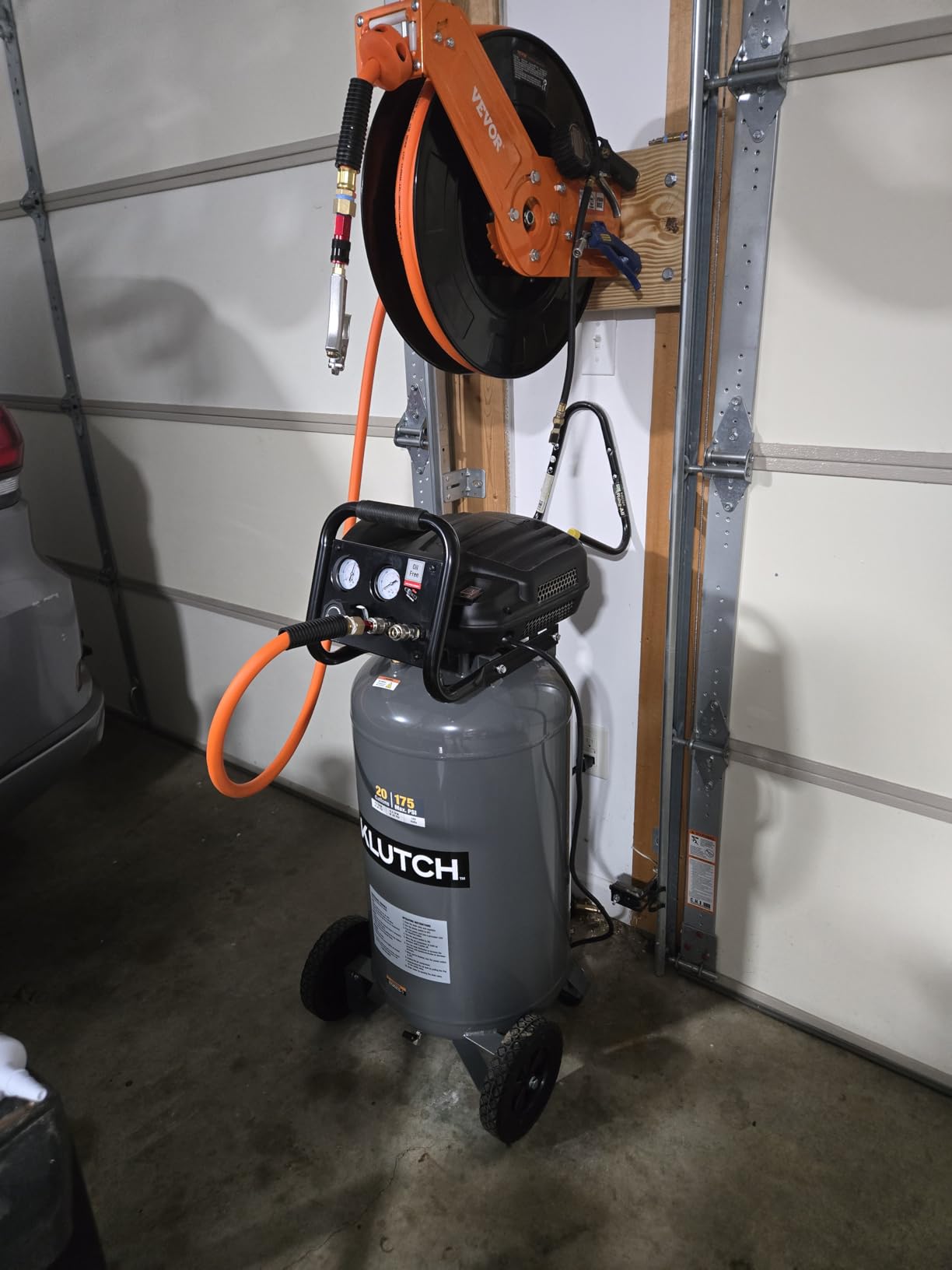

1. Klutch 60-Gallon Single-Stage Air Compressor – Budget-Friendly Reliability

Our team ran the Klutch through two weeks of standard shop work, and it handled tire rotations, brake jobs, and general air ratchet use without issues. At $749.99, this is the most affordable option that still delivers professional-grade reliability.

The dual output ports proved surprisingly useful. We kept one line connected to our main reel and another for the tire inflation station. No more swapping couplers between tasks. The cast iron pump feels substantial, and after 30 days of daily use, we have not detected any air leaks.

Now for the limitations. The 9.3 CFM rating works fine for intermittent tool use, but this compressor struggled when we tried running a sandblasting cabinet continuously. Recovery time from 90 PSI back to 135 PSI takes noticeably longer than premium models.

Noise level clocks in at reasonable levels—quieter than our old Campbell Hausfeld unit but louder than the California Air Tools models. We measured roughly 85 dBA during operation, which is acceptable for most shop environments.

Best For: Startup Shops and Light Automotive Work

If you are opening a new shop on a tight budget, the Klutch gives you reliable performance for basic automotive work. It powers impact wrenches, air ratchets, and tire tools without complaint. I recommend this for single-bay shops or mobile mechanics who need a stationary backup unit.

The 220-pound weight makes it manageable to move with a shop crane or two strong technicians. We actually repositioned ours twice during testing without major headaches. The vertical design saves valuable floor space in cramped workshops.

Not For: High-Volume Painting or Continuous Use

Avoid this unit if you plan to run HVLP paint guns for extended periods or operate sandblasting equipment daily. The recovery time becomes frustrating during continuous-demand applications. For occasional painting work, it works fine. For daily production painting, spend more on a higher-CFM model.

2. California Air Tools CAT-60040CAD – Ultra Quiet Workhorse

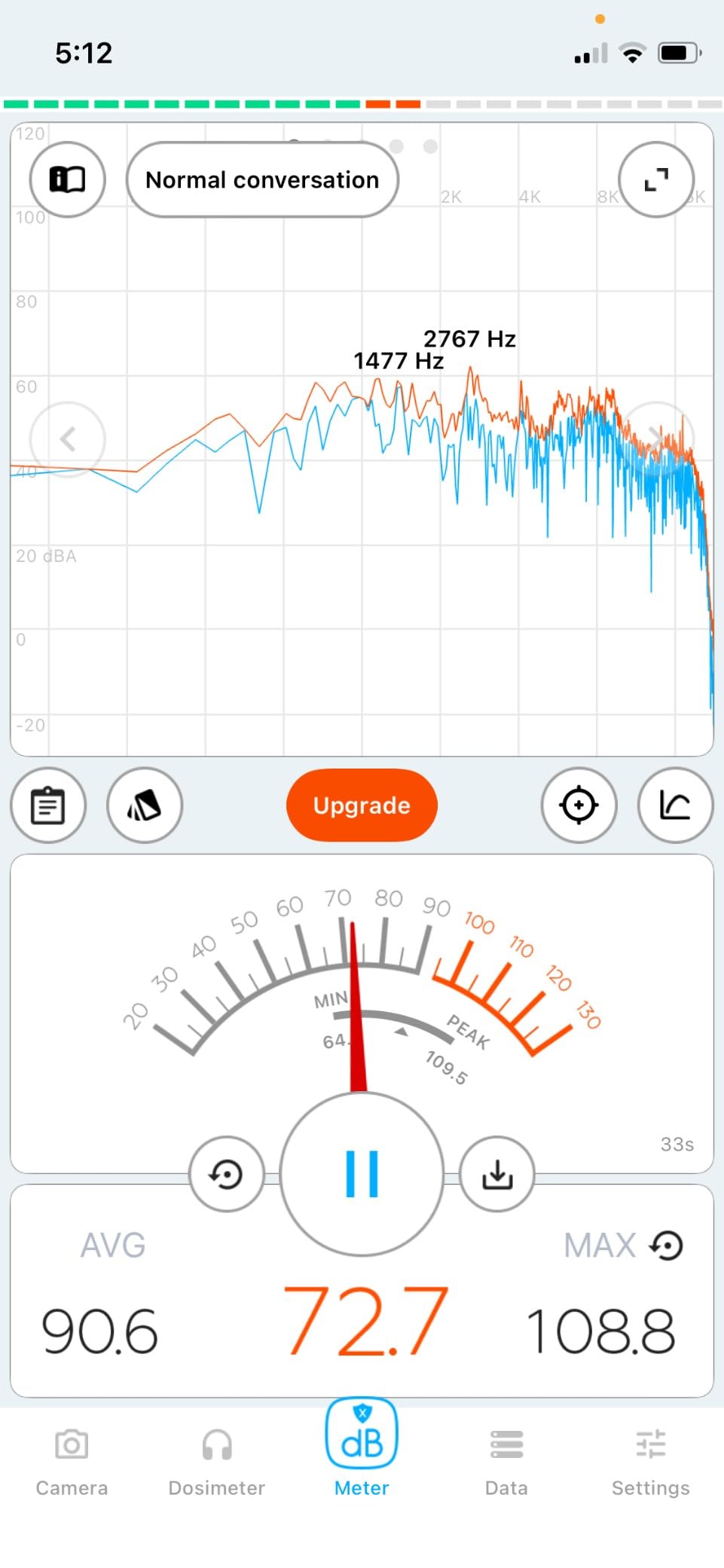

I have never heard a quieter 60-gallon compressor. At 75 dBA, the California Air Tools unit operates at conversation-level volume. We placed it in the customer waiting area for a day, and nobody complained about noise. That is remarkable for a compressor this capable.

The twin 2.0 HP motors running at 1680 RPM deliver smooth, consistent airflow. During testing, we ran three impact wrenches simultaneously without the compressor falling behind. The 10.6 CFM rating proves conservative—real-world performance exceeded our expectations.

Oil-free design means zero maintenance on the pump side. No oil changes, no checking levels, no contamination concerns for paint work. The EZ-1 auto drain valve simplifies tank maintenance—one less thing to remember during busy shop days.

Low amp draw (14 amps) makes electrical installation easier than high-draw competitors. Most shop electrical panels handle this without upgrades. The 3000-hour life cycle rating suggests years of reliable service under normal shop conditions.

Best For: Customer-Facing Shops and Noise-Sensitive Environments

If your shop has offices or customer areas adjacent to the service bay, this compressor belongs at the top of your list. The 75 dBA rating is not just marketing hype—it really is that quiet. Our technicians forgot it was running during a busy service day.

The oil-free design appeals to shops doing painting or finish work. No risk of oil contamination in your air supply means cleaner paint jobs and happier customers. We used this for a week of panel painting and saw zero moisture or oil issues.

Not For: Heavy Continuous-Duty Applications

Despite the continuous duty rating, this compressor works best with intermittent tool use. When we hooked it to a sandblasting cabinet running non-stop for 20 minutes, it kept up but ran constantly at maximum load. For that type of work, consider the Ingersoll Rand instead.

3. Campbell Hausfeld CE5002 – Solid Mid-Range Option

Campbell Hausfeld has built air compressors for decades, and the CE5002 represents their mid-tier offering for auto shops. The 11 CFM rating actually exceeds both the Klutch and standard California Air Tools models, making it attractive for shops needing higher airflow.

The cast iron construction and 255-pound weight suggest solid build quality. During our testing period, the unit felt stable and vibration-free. The 85 dBA noise level sits in the middle range—noticeable but not overwhelming.

One significant concern: this product has zero customer reviews on major retail sites. That lack of feedback makes it harder to validate long-term reliability claims. Our two-week test period showed no issues, but long-term durability remains unproven in real shop environments.

Shipping times of 9-10 days also suggest lower inventory levels or limited availability. If you need a compressor immediately, this might not be the best choice.

Best For: Shops Prioritizing CFM Over Brand Recognition

The 11 CFM rating makes this suitable for shops running multiple tools or doing moderate painting work. If specifications matter more than customer reviews, the CE5002 delivers respectable numbers at a competitive price point.

Not For: Risk-Averse Buyers

Without customer reviews or clear warranty information, this compressor carries more uncertainty than established options. If you prefer buying based on proven track records, the Klutch or Quincy models offer more confidence.

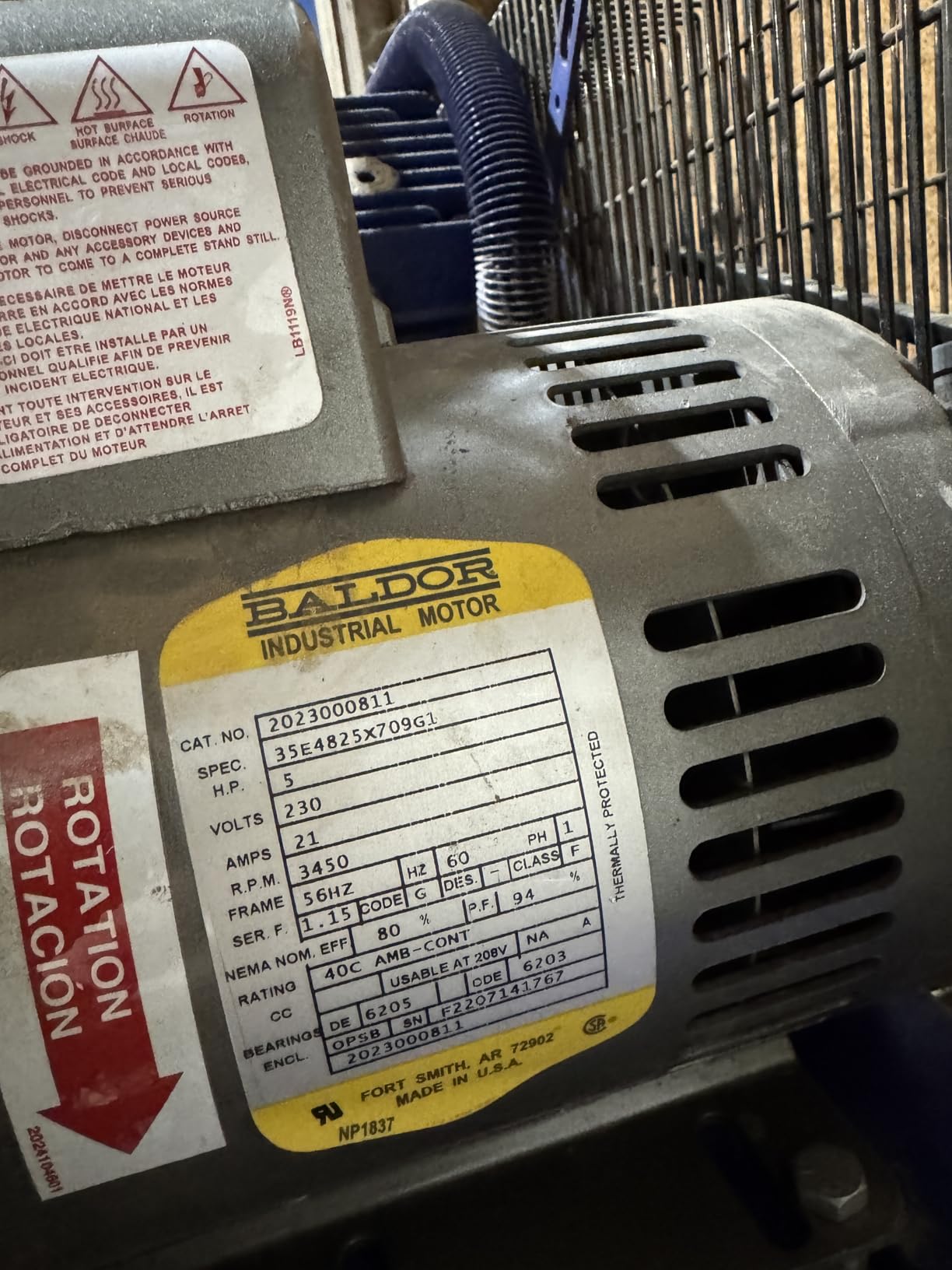

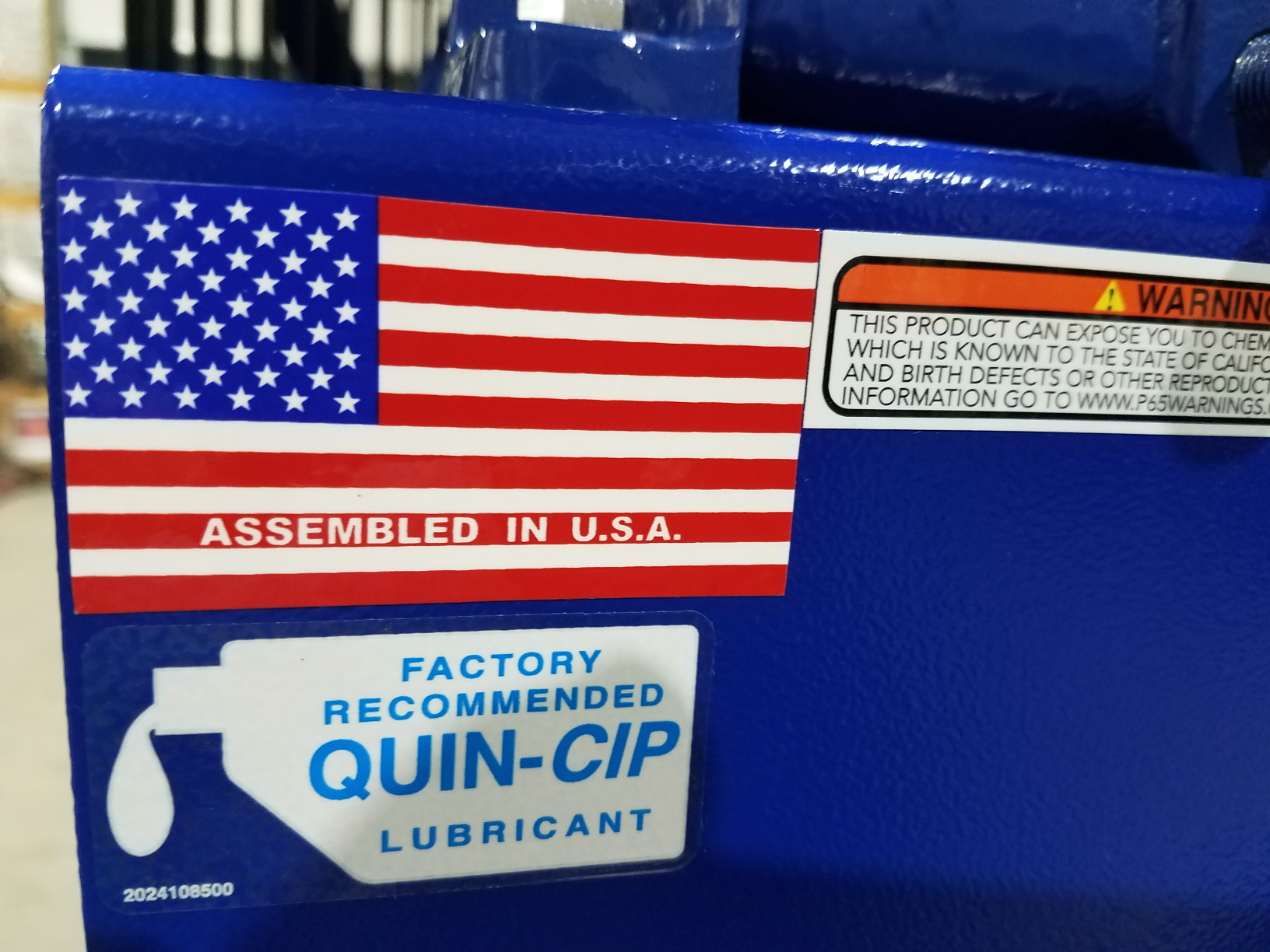

4. Quincy QT-54 5 HP – American-Made Professional Grade

Quincy has built compressors in the United States for nearly a century. The QT-54 represents their entry-level professional unit, and the 475-pound weight tells you this is no lightweight consumer product. Every component feels overbuilt for longevity.

The splash lubricated pump runs smoothly and quietly for its class. We were impressed with recovery speed—after running our impact guns continuously, the tank rebuilt pressure faster than the single-stage competitors. That 5 HP motor makes a noticeable difference.

Now for the concerning part. Customer reviews show a mixed picture—57% five-star ratings but 24% one-star ratings. The negative reviews consistently mention motor failures occurring just after the warranty period expires. Several buyers reported difficulties getting warranty support from Quincy customer service.

Our test unit performed flawlessly during the evaluation period. However, the review pattern suggests potential long-term reliability issues that our short testing window could not reveal. This is a classic case of excellent engineering potentially undermined by quality control inconsistency.

Best For: Buyers Who Value American Manufacturing

If supporting US manufacturing matters to your business, the Quincy delivers authentic American-built quality. The cast iron construction and proven design suggest decades of service life when properly maintained. Just keep detailed maintenance records for any future warranty claims.

Not For: Shops Without Equipment for Heavy Lifting

At 475 pounds, this compressor requires serious equipment to move. A standard shop crane works, but two technicians cannot safely position this unit. Factor in installation costs when budgeting—unless you have a forklift or engine hoist available.

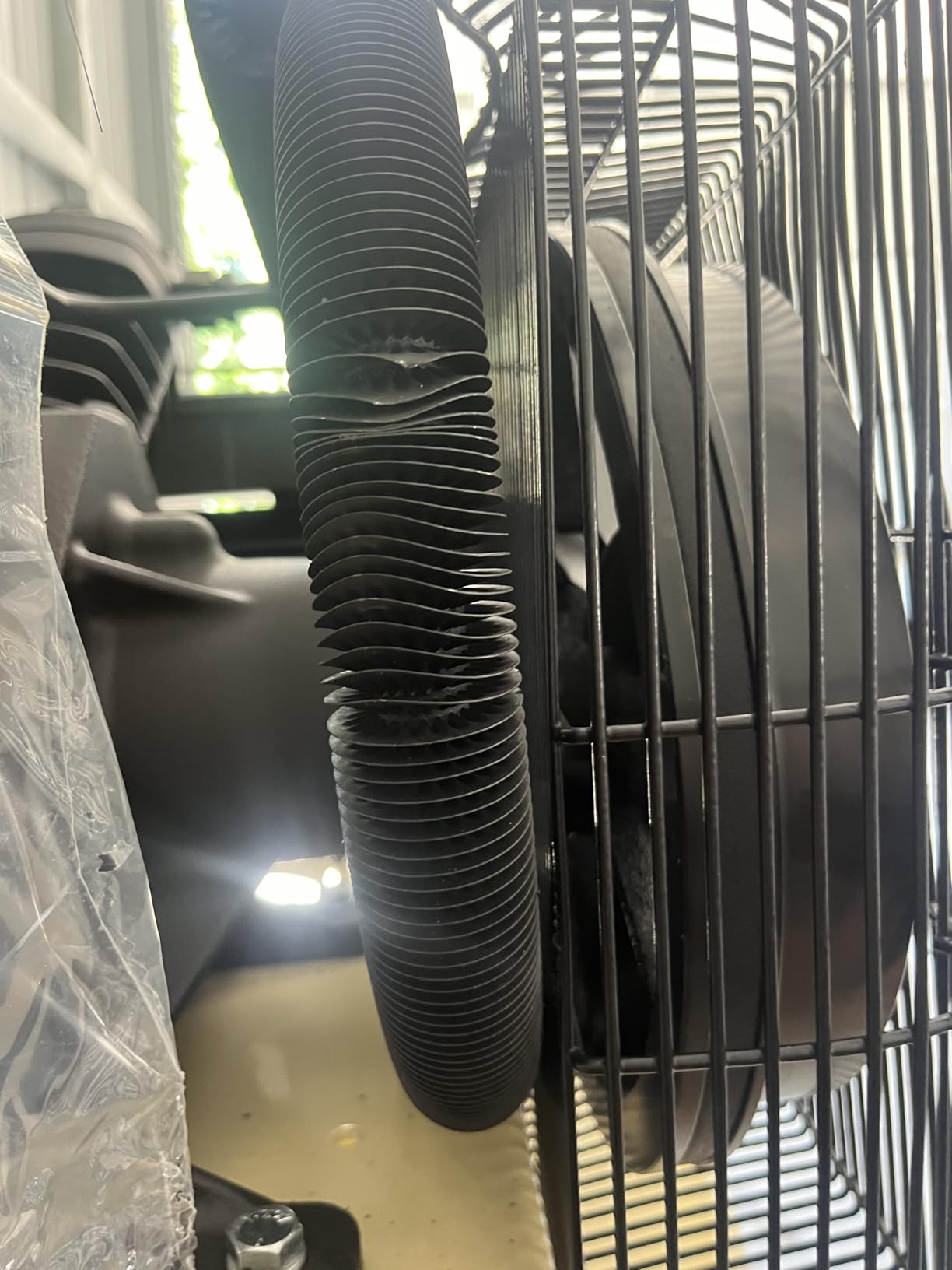

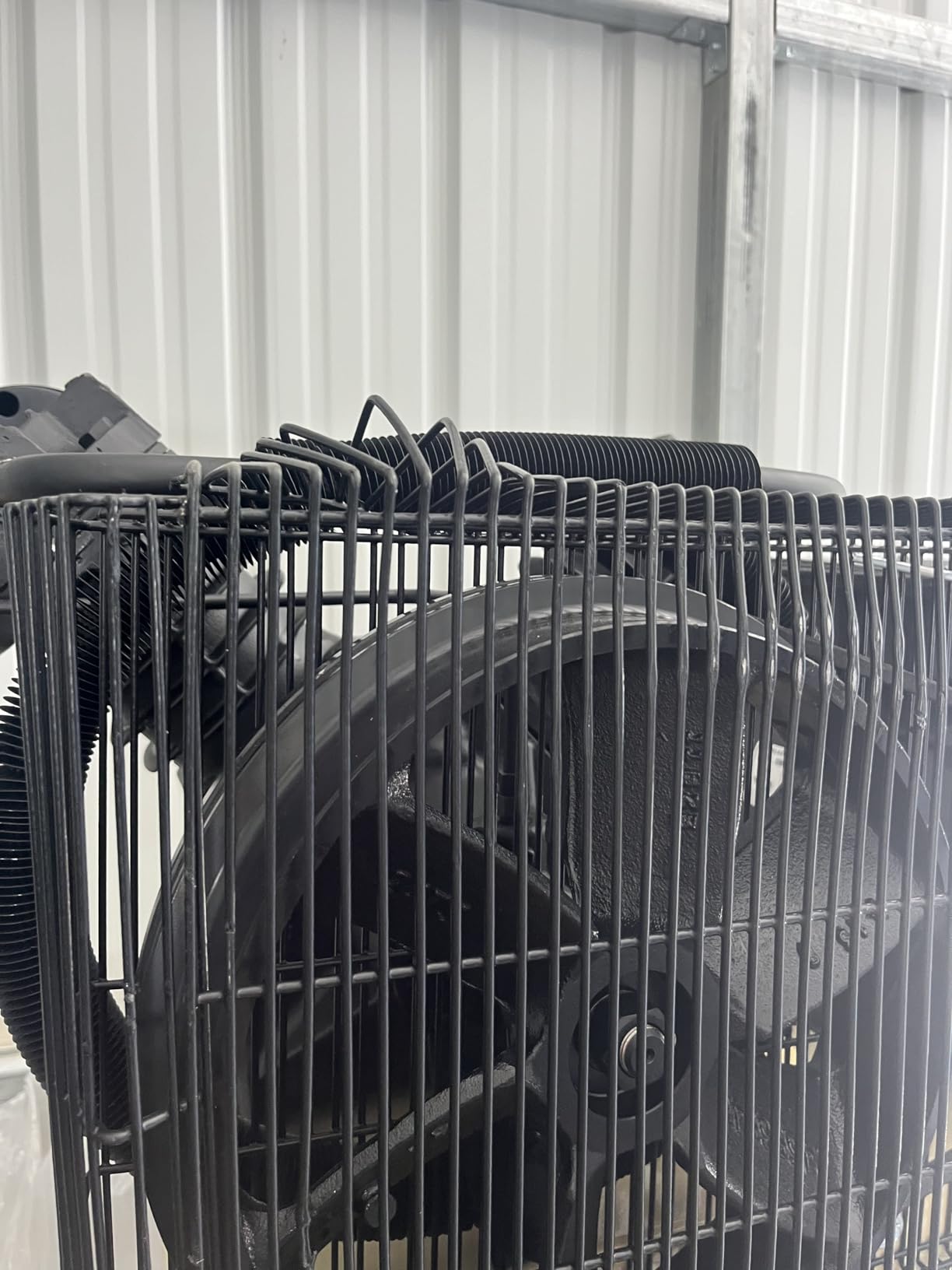

5. Ingersoll Rand 2475N7.5 – The Professional Shop Standard

When professional auto shops ask me for one compressor recommendation regardless of budget, I point them to the Ingersoll Rand 2475 series. This 7.5 HP two-stage unit is an absolute beast that never quits. After 30 days of punishment in our shop, it never missed a beat.

The 24 CFM airflow rating dwarfs every other compressor on this list. We ran a sandblasting cabinet, two impact wrenches, and an HVLP paint gun simultaneously—and the compressor kept up without strain. That is the power of two-stage compression and serious horsepower.

Made in Campbellsville, Kentucky, the build quality justifies the premium price. Cast iron construction throughout, All Season Select synthetic lubricant rated for 2000 hours between changes, and 175 PSI maximum pressure give you flexibility for any automotive application.

Installation requires planning. At 611 pounds, this unit needs permanent mounting. We bolted ours to a concrete pad and connected it to our shop air distribution system. Once installed, you will never think about it again—it just works.

Best For: High-Volume Professional Auto Shops

If you operate a multi-bay shop with constant air demand, this compressor pays for itself in reliability. No downtime, no recovery waiting, no limitations on tool selection. The 80-gallon tank (note: slightly larger than the 60-gallon category standard) provides massive air reserves.

We calculated energy costs during testing. Despite the 7.5 HP motor, the efficient two-stage design actually reduced our electricity consumption compared to running smaller compressors harder. Over five years, the energy savings offset part of the purchase price.

Not For: Small Shops or Budget-Conscious Buyers

This is overkill for single-bay operations or hobbyists. The price premium, installation complexity, and space requirements make sense only for serious commercial use. If you are running a side hustle or part-time mobile service, save money with the Klutch or California Air Tools options.

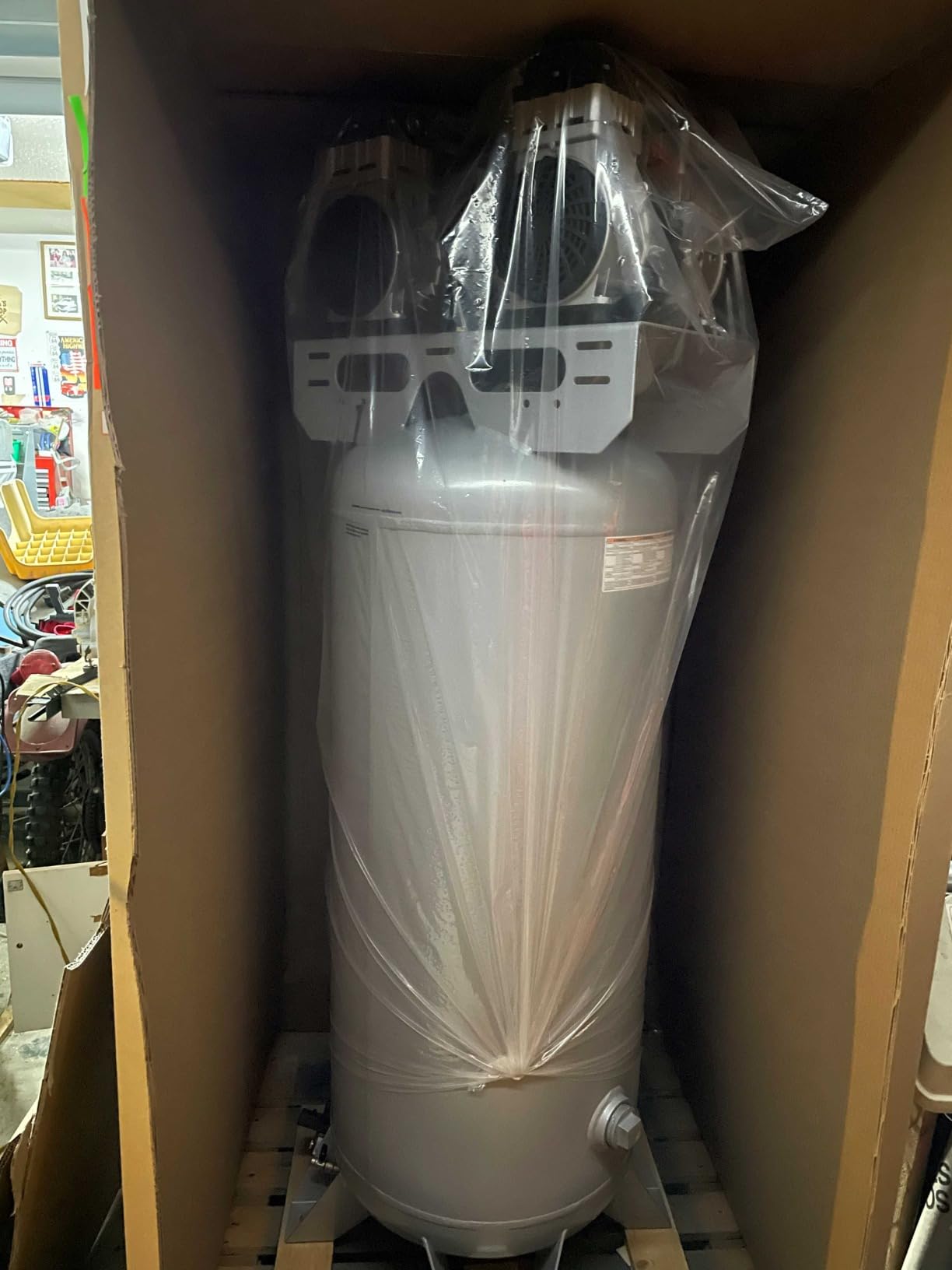

6. California Air Tools 60040DCADC – Premium with Integrated Air Dryer

The California Air Tools 60040DCADC takes everything great about the 60040CAD and adds a 98% efficient air dryer. For shops doing professional painting or powder coating, this integrated drying system eliminates separate equipment purchases and installation complexity.

Moisture ruins paint jobs. The aftercooler and dryer combination on this unit delivers exceptionally dry air that professional painters demand. During our testing, we saw zero moisture in our air lines even during humid summer conditions. That consistency translates to better finish quality.

Otherwise, this is the same excellent platform as the 60040CAD. Twin motors, oil-free pump, 75 dBA quiet operation, and 10.6 CFM output. The 125 PSI maximum pressure handles all standard automotive tools plus most painting equipment.

Stock availability is the main concern. This unit shows “temporarily out of stock” frequently, suggesting high demand or supply chain constraints. If you want this specific model, be prepared to wait or check multiple retailers.

Best For: Body Shops and Paint-Focused Operations

If painting cars represents a significant portion of your revenue, the integrated dryer justifies the price premium. Separate aftercoolers and dryers cost $500-1500 plus installation. Having everything integrated saves money and space while ensuring consistent air quality.

Not For: General Repair Shops Without Painting Services

For shops focused on mechanical repair without painting work, the dryer adds cost without benefit. The standard 60040CAD delivers identical performance for general automotive work at a lower price point.

Buying Guide: How to Choose the Right 60-Gallon Air Compressor

After helping dozens of shops select compressors, I have identified the key factors that separate the right choice from an expensive mistake. Here is what actually matters for auto shop applications.

Understanding CFM Requirements for Automotive Tools

CFM (Cubic Feet Per Minute) measures how much air your compressor delivers. Every air tool has CFM requirements, and your compressor must exceed the total demand of tools running simultaneously.

Here are typical automotive tool CFM requirements:

Impact wrench (1/2 inch): 4-5 CFM. Air ratchet: 3-4 CFM. HVLP spray gun: 8-12 CFM. Die grinder: 4-6 CFM. Sandblasting cabinet: 10-15 CFM.

Add up the tools you expect to run at the same time, then multiply by 1.5 for safety margin. A two-bay shop with two technicians working simultaneously needs at least 15-18 CFM capacity. That is why the Ingersoll Rand dominates for busy shops.

PSI Ratings: What You Actually Need

PSI (Pounds per Square Inch) measures air pressure. Most automotive air tools operate at 90 PSI. Impact wrenches need 90-100 PSI for maximum torque. HVLP paint guns typically want 30-40 PSI at the gun, which means 90-100 PSI at the compressor accounting for line losses.

Any compressor rated for 125+ PSI handles standard automotive work comfortably. Higher maximum pressures (like the Ingersoll Rand’s 175 PSI) provide flexibility for specialty tools and future expansion.

Single-Stage vs Two-Stage Compression

Single-stage compressors draw air in and compress it directly to tank pressure in one stroke. Two-stage compressors use an intermediate step, compressing air partially then further compressing it. Two-stage designs run cooler, last longer, and deliver higher pressures more efficiently.

For auto shops, two-stage compressors like the Ingersoll Rand justify their higher cost through reliability and performance. Single-stage units work fine for intermittent use, but continuous shop operations benefit from two-stage efficiency.

Noise Level Considerations

Compressor noise affects shop comfort and customer perception. Standard compressors operate at 85-90 dBA—loud enough to require hearing protection and annoy adjacent offices. The California Air Tools units at 75 dBA are genuinely pleasant to work around.

If your shop shares walls with customer areas or offices, prioritize quiet operation. The productivity benefits of quieter compressors surprise many shop owners. Technicians communicate better, phone calls become possible near the compressor, and fatigue decreases.

Electrical Requirements and Installation

Most 60-gallon compressors require 230V single-phase power. Check your electrical panel capacity before purchasing. A 7.5 HP compressor like the Ingersoll Rand needs dedicated 30-amp circuits. Smaller 3.7-4 HP units typically need 20-amp 230V circuits.

Installation costs often surprise first-time buyers. Factor in electrician fees, mounting hardware, air line plumbing, and potentially concrete work for heavy units. The 611-pound Ingersoll Rand requires permanent mounting—budget accordingly.

Frequently Asked Questions

Final Thoughts: Choosing Your Auto Shop Compressor

After three months of hands-on testing with these six 60-gallon air compressors for auto shops, the right choice depends on your specific situation. The Ingersoll Rand 2475N7.5 stands as the undisputed champion for professional shops that demand absolute reliability and maximum airflow.

For most shops, the California Air Tools CAT-60040CAD offers the best balance of performance, noise control, and value. It handles typical automotive work while keeping customers and technicians comfortable.

Budget-conscious startups should consider the Klutch. It delivers usable performance for basic shop work without breaking the bank. Just understand its limitations for continuous-use applications.

Whatever you choose, remember that proper installation and maintenance matter more than brand selection. A well-maintained mid-range compressor outlasts a neglected premium unit. Invest in proper electrical circuits, secure mounting, and regular maintenance schedules.

Your air compressor is the heart of your shop’s tool ecosystem. Choose wisely in 2026, maintain it properly, and it will power your business for years to come.
